Interior Lights Schematics

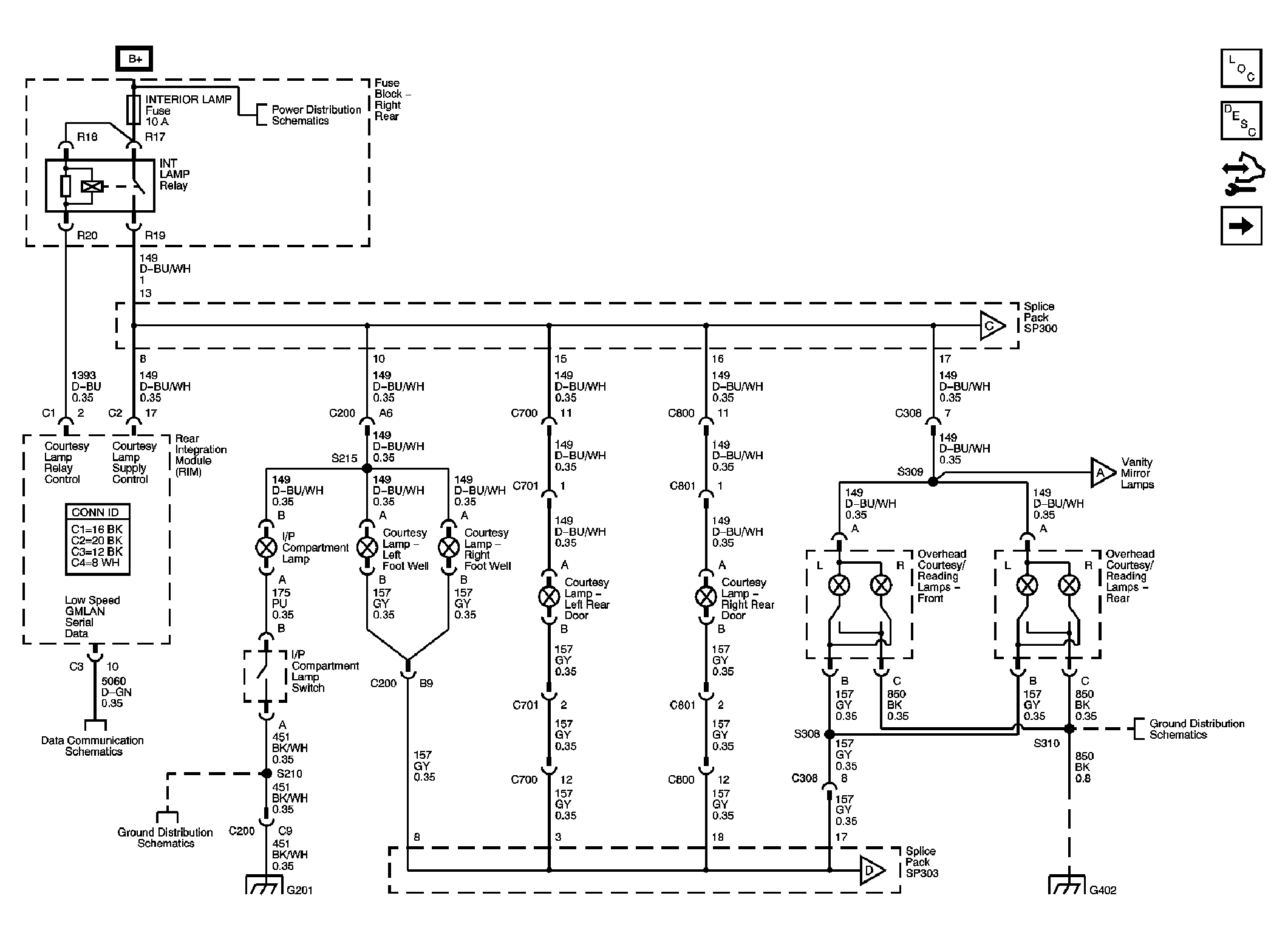

Fig 1: Courtesy Lamps Schematic
GM1822602Courtesy of GENERAL MOTORS CORP.

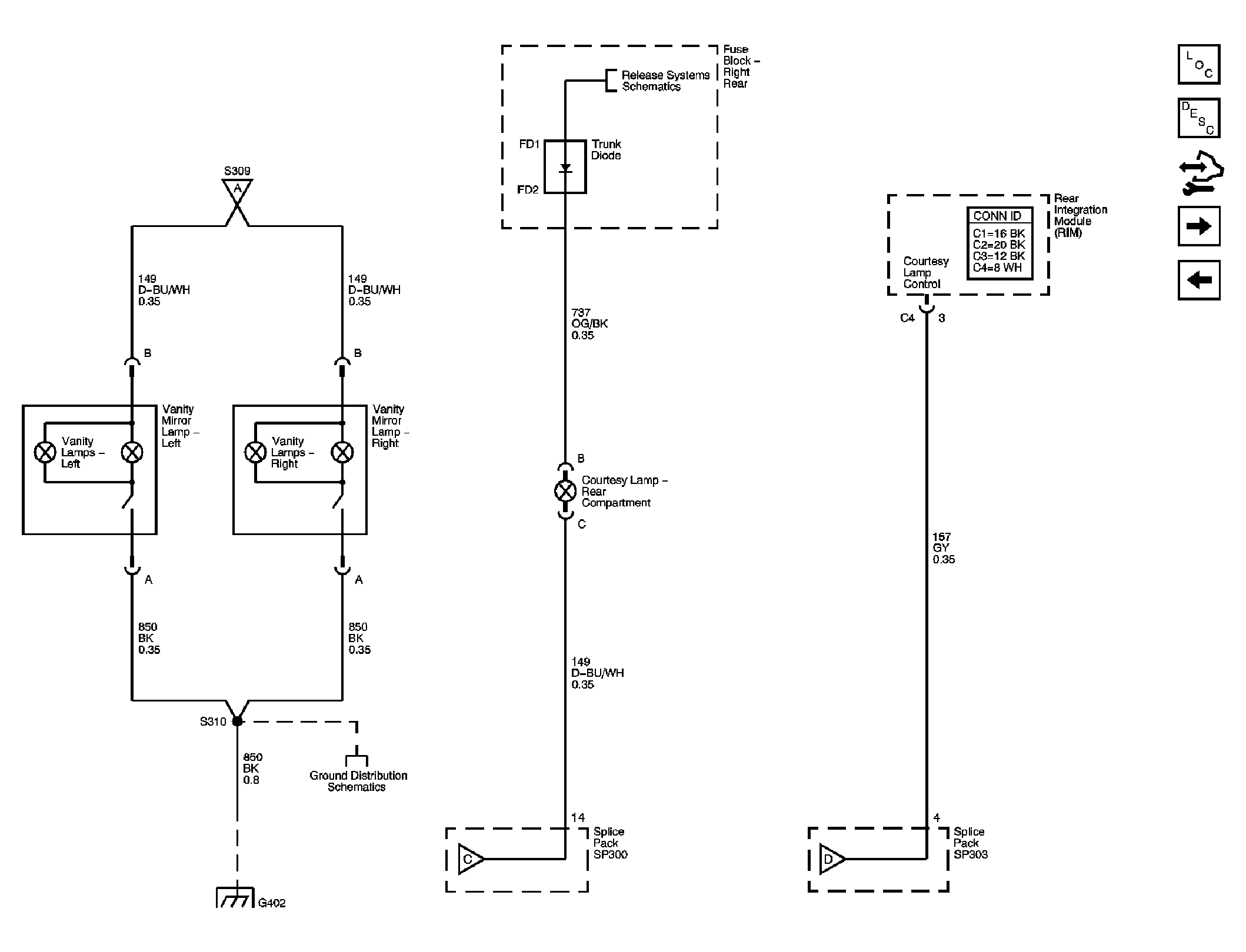

Fig 2: Vanity Mirror and Rear Compartment Lamps Schematic
GM1822613Courtesy of GENERAL MOTORS CORP.

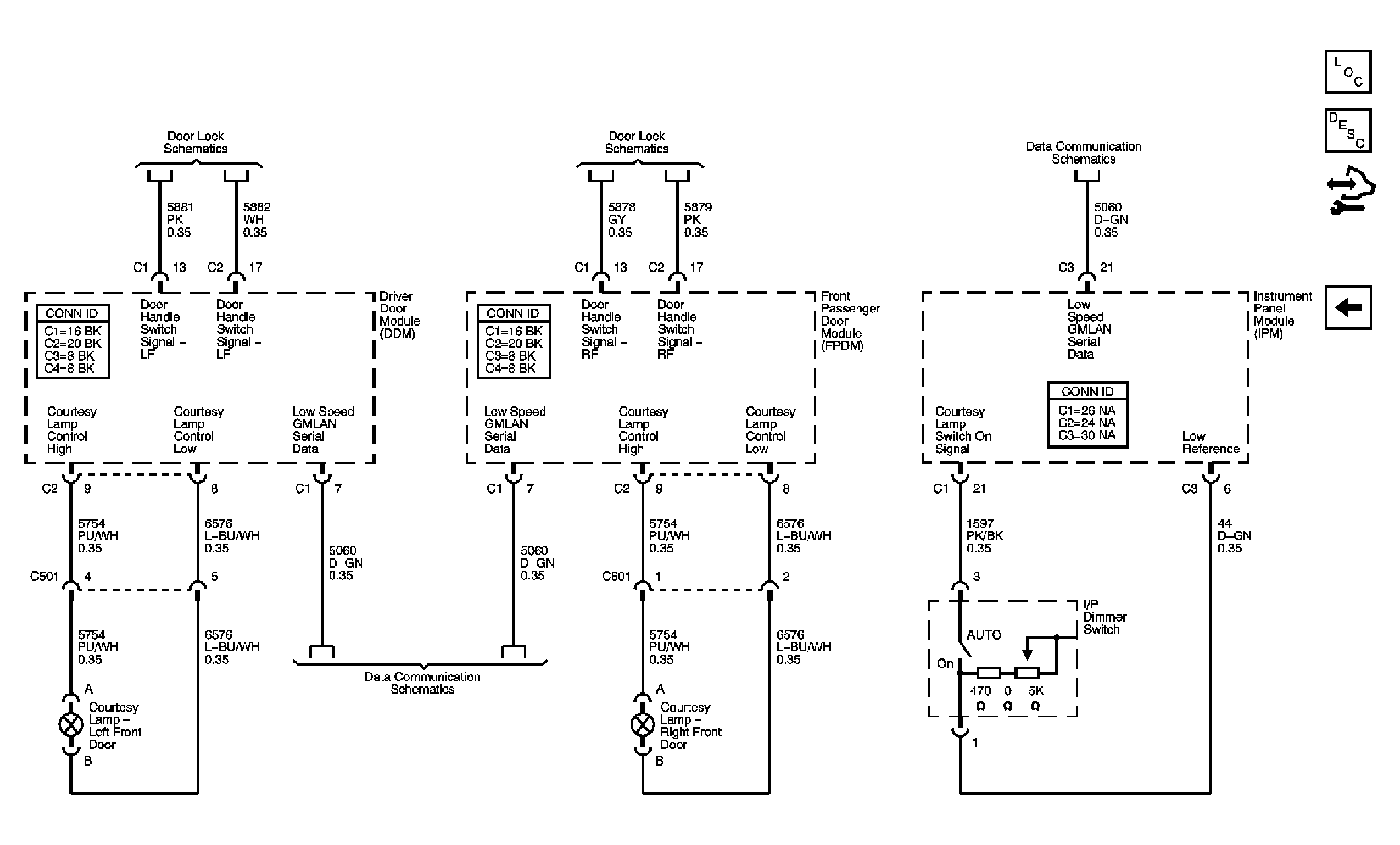

Fig 3: Front Door Puddle Lamps, DIC/Dimmer Switch Schematic
GM1822617Courtesy of GENERAL MOTORS CORP.
