Headlamp Bulb Replacement (Hi Beam)
Headlamp Bulb Replacement (Hi Beam)

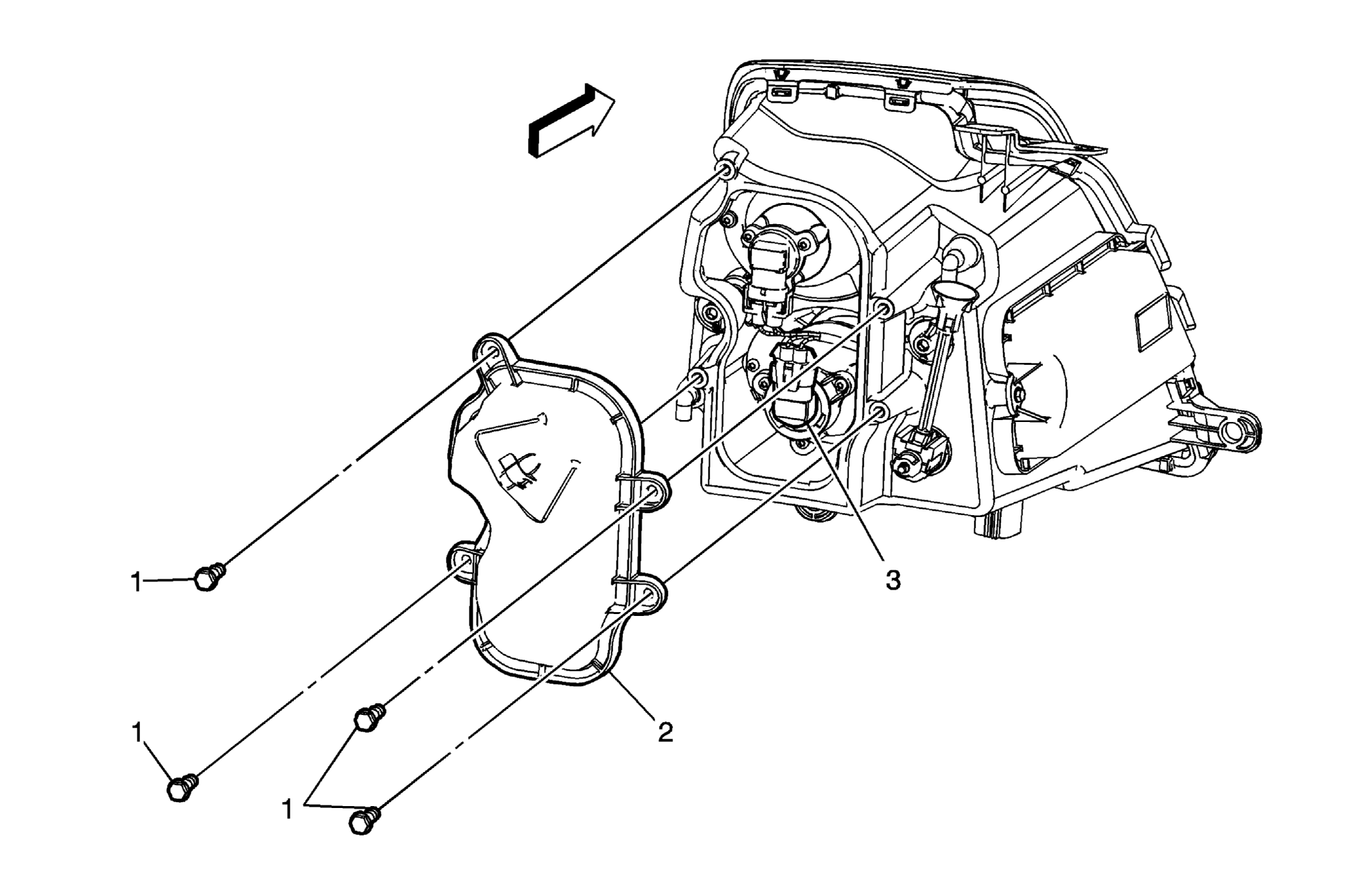

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the headlamp assembly. Refer to Headlamp Replacement . |
|
| 1 | Headlamp Bulb Access Cover Screws (Qty: 4) Tighten: 3 N.m (27 lb in) |
| 2 | Headlamp Bulb Access Cover |
| 3 | High Beam Headlamp Bulb
CAUTION:
Refer to Halogen Bulb Caution
. Tip: Disconnect all electrical connectors before attempting removal. |
