Cruise Control Schematics

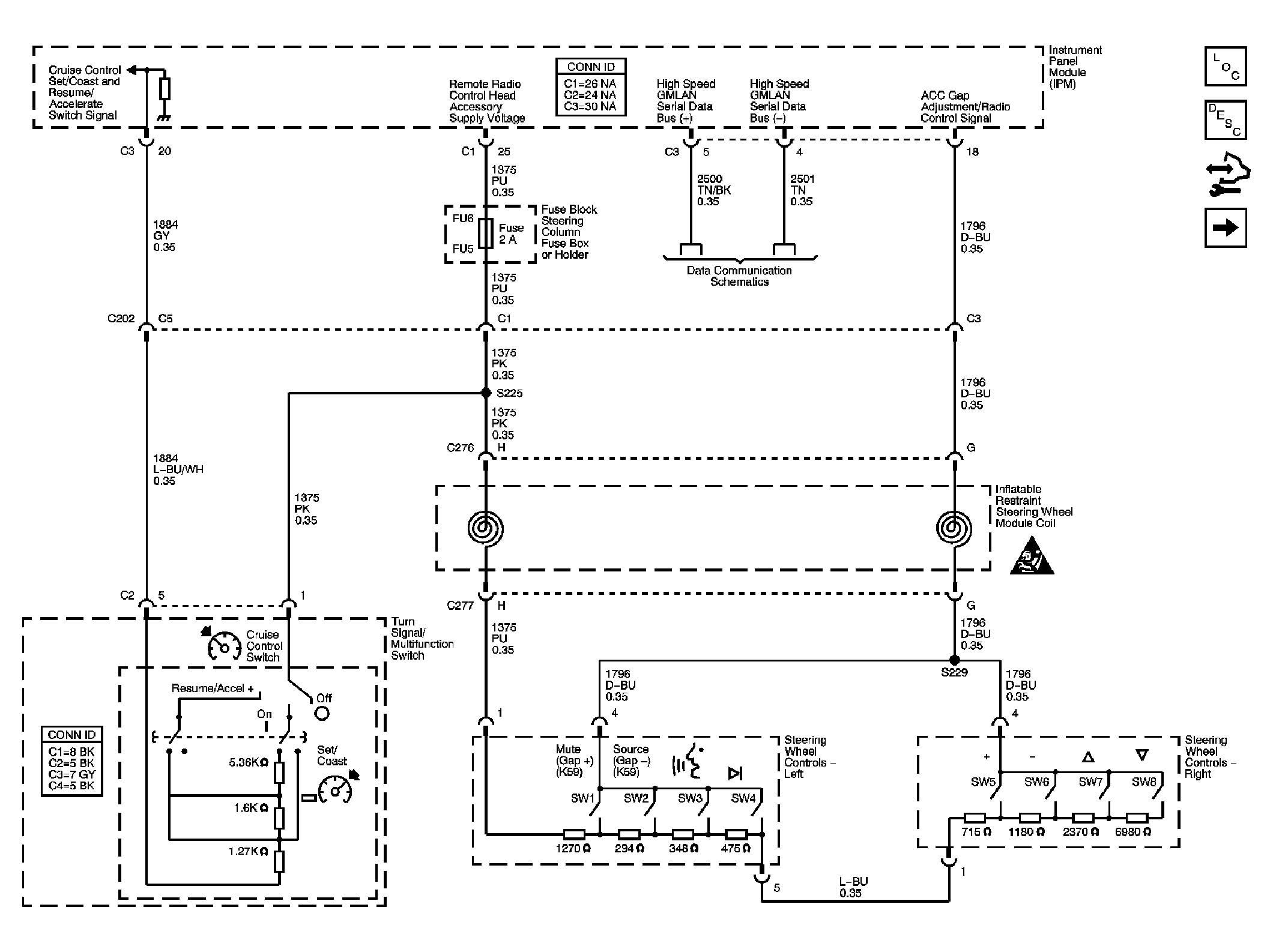

Fig 1: Cruise Control Switch, Steering Wheel Controls Schematic

Courtesy of GENERAL MOTORS CORP.

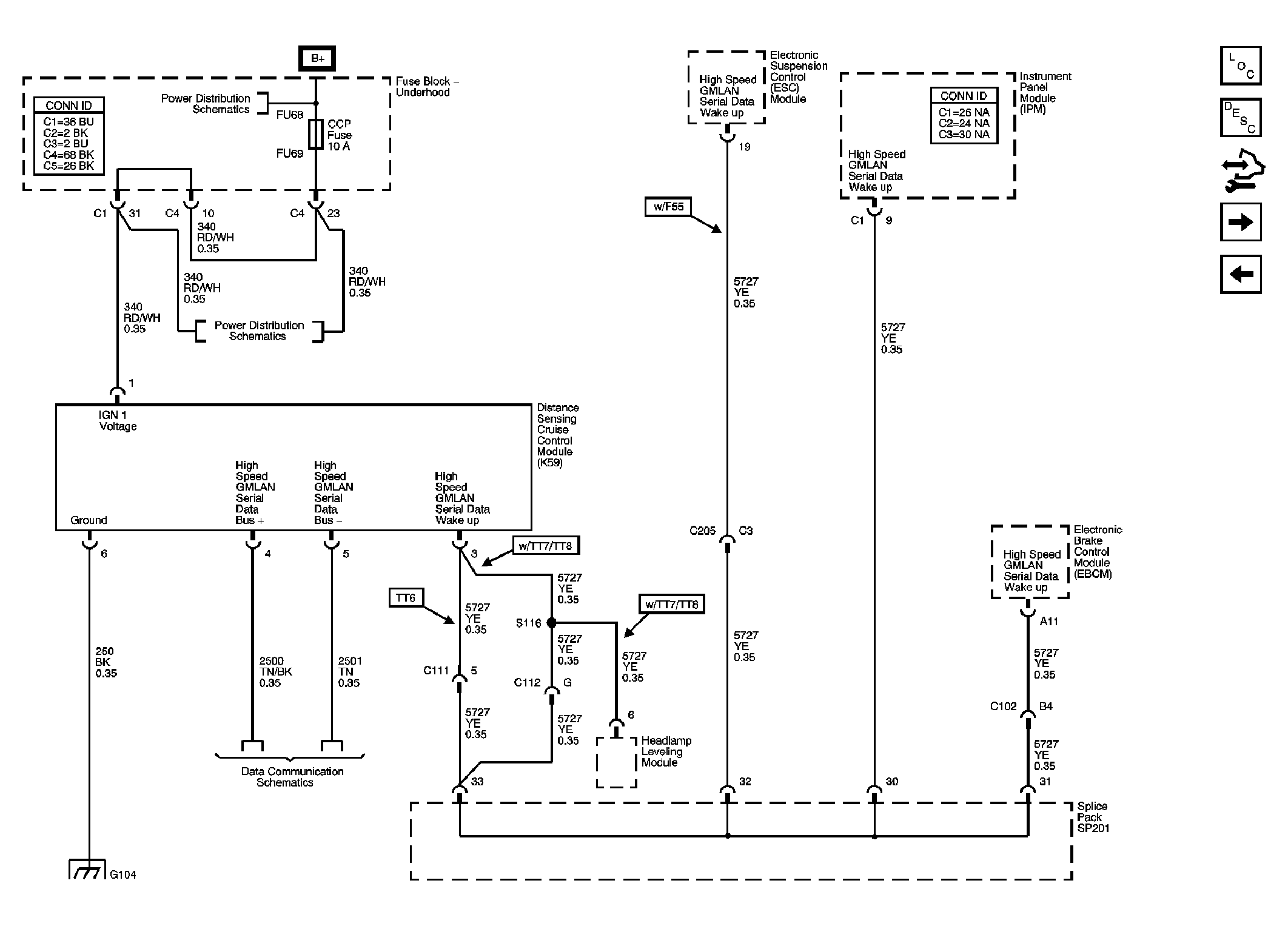

Fig 2: Distance Sensing Cruise Control Module - K59 Schematic

Courtesy of GENERAL MOTORS CORP.

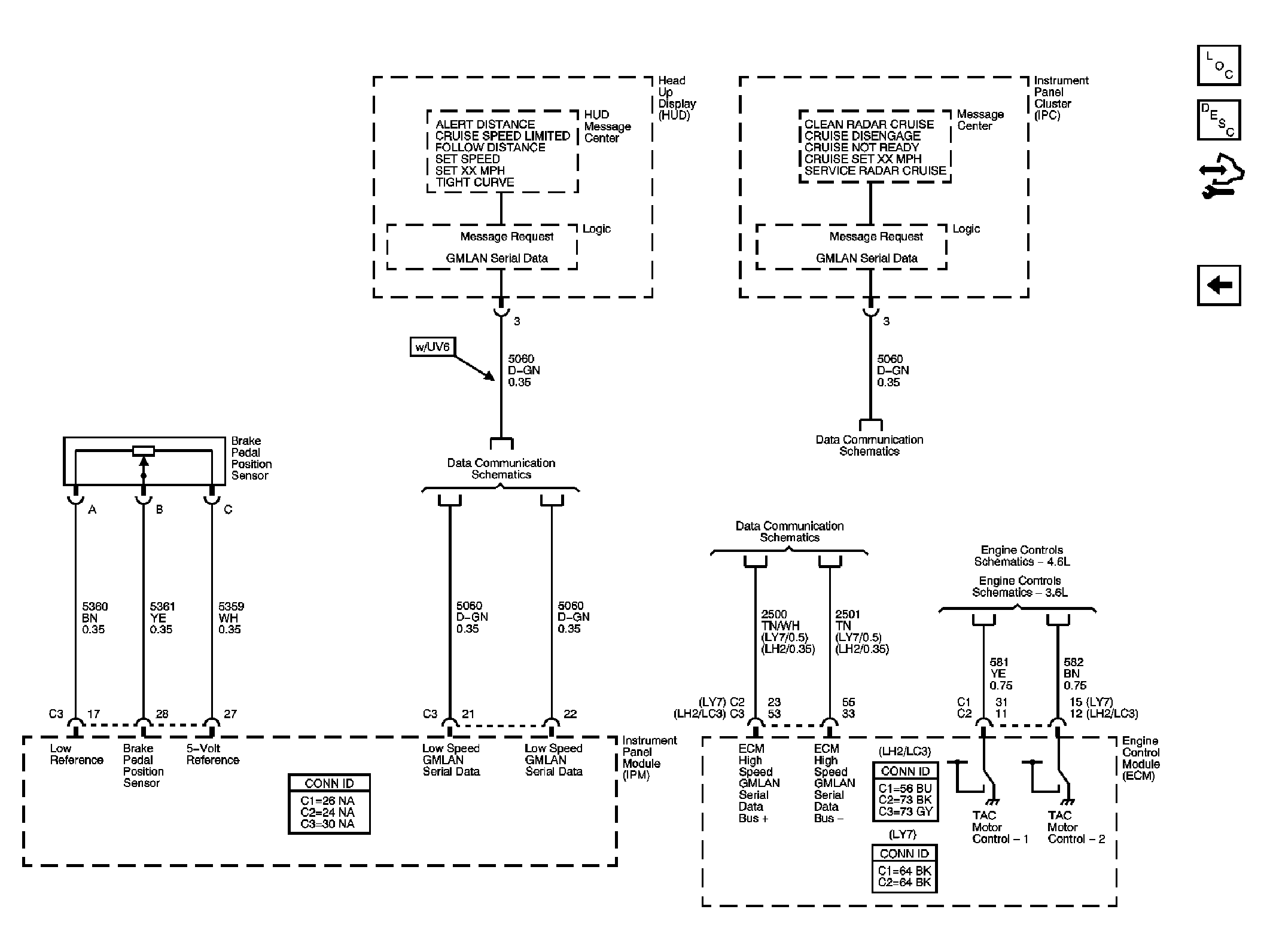

Fig 3: DLC, Brake Pedal Position Sensor Schematic

Courtesy of GENERAL MOTORS CORP.
