Electronic Suspension Control Schematics

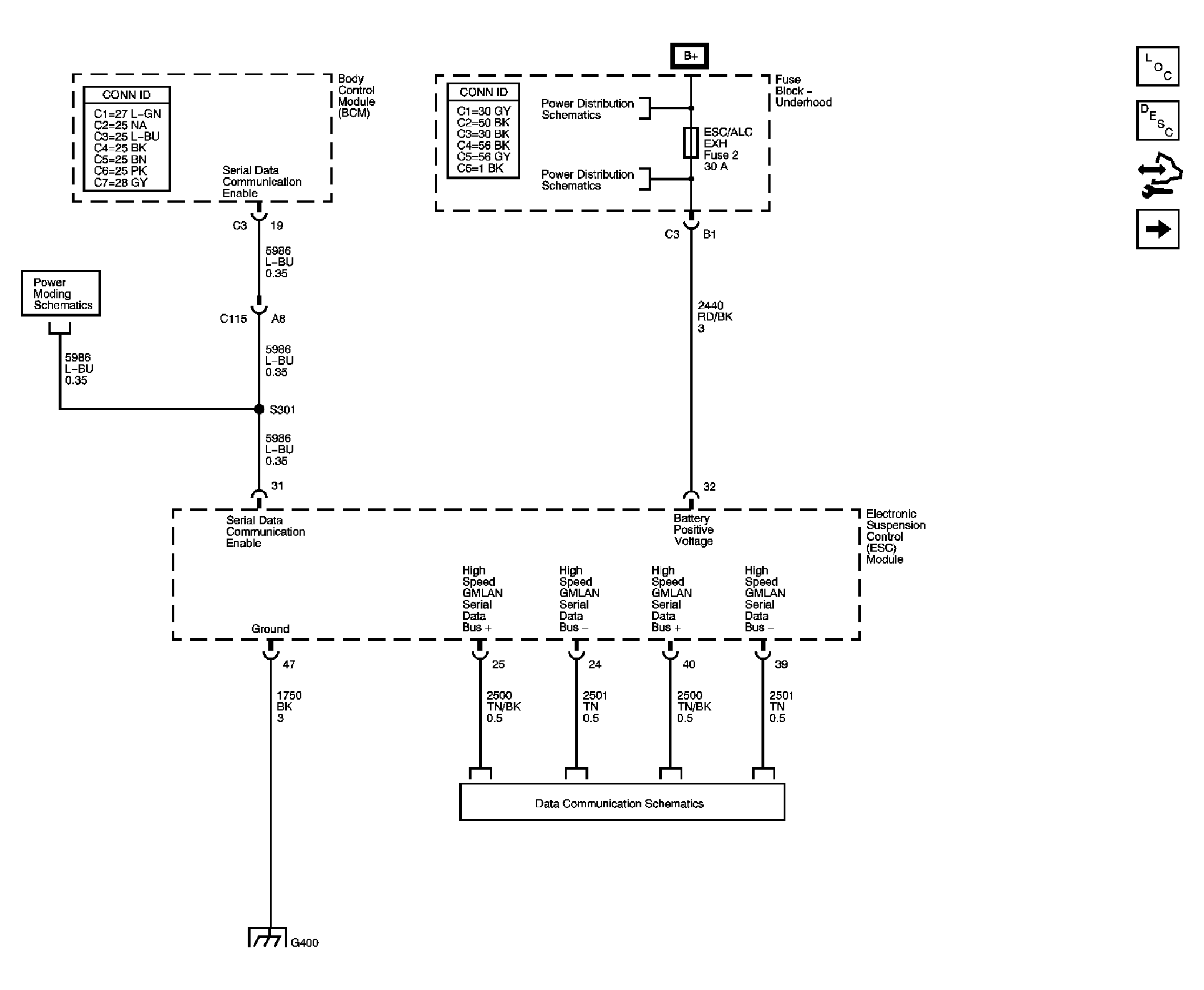

Fig 1: Module Power, Ground, and Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

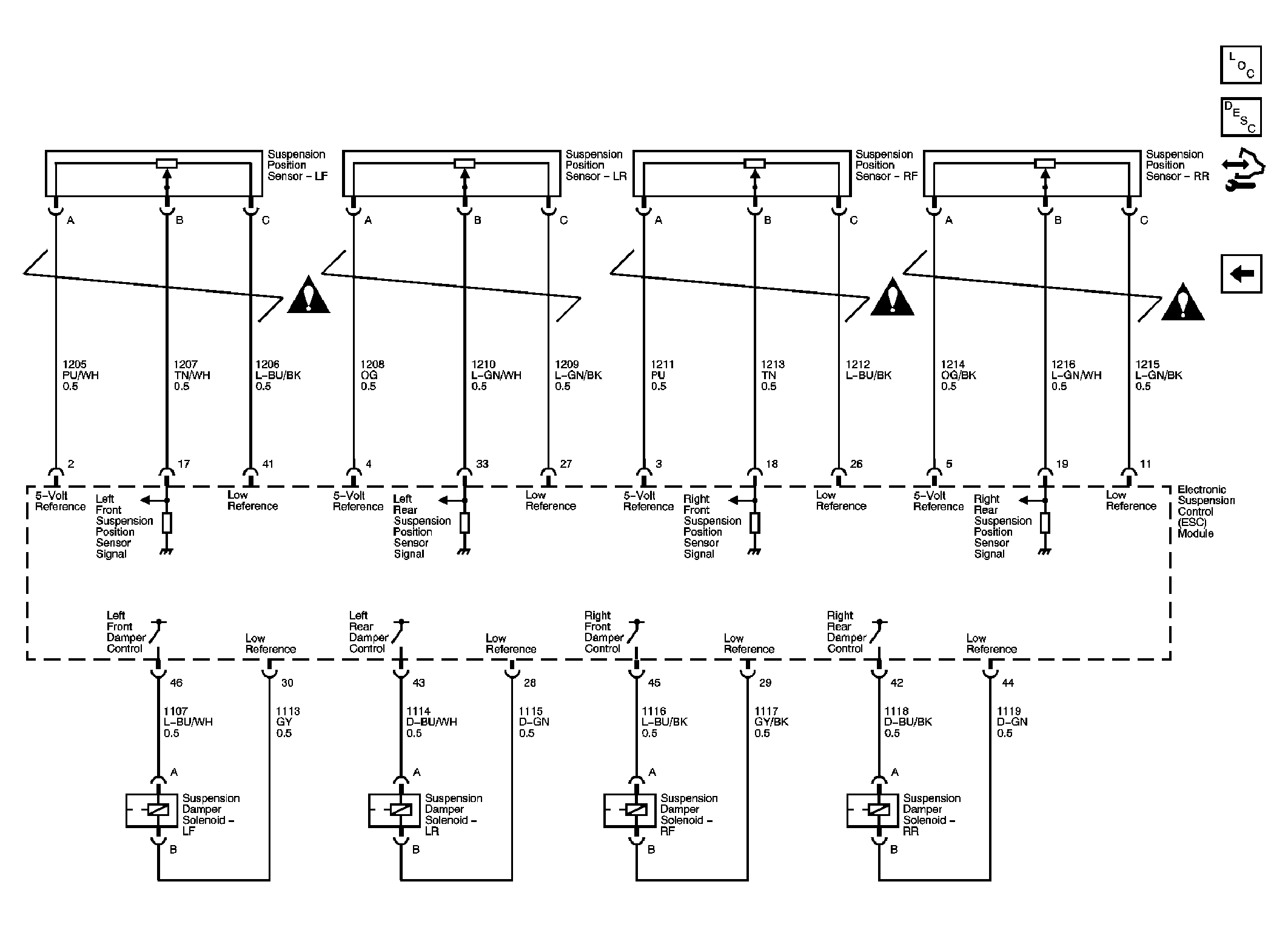

Fig 2: Position Sensors and Solenoids Schematic

Courtesy of GENERAL MOTORS CORP.
