Electronic Suspension Control Module Replacement

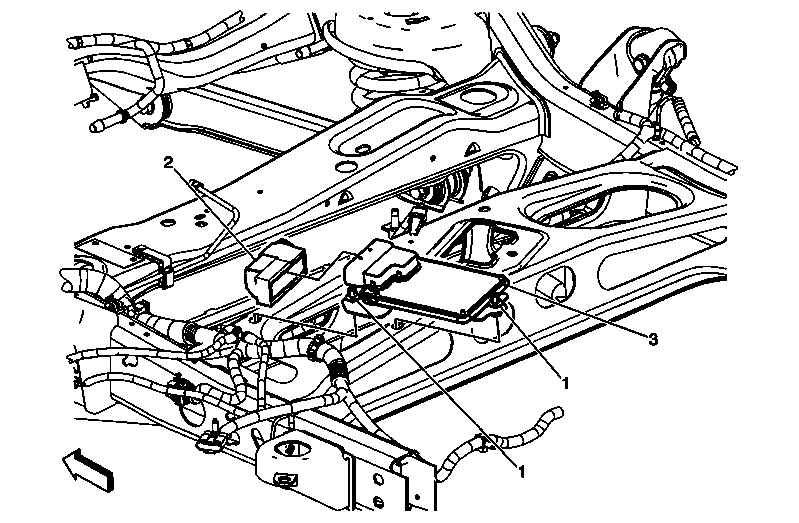

Fig 1: View Of Electronic Suspension Control Module & Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the spare tire and wheel assembly to access the control module.
1	Electronic Suspension Control Module Nut (Qty: 2) Tip: Loosen the module nuts. Tighten: 10 N.m (89 lb ft)
2	Electronic Suspension Control Module Connector Tip: Disconnect the electrical connector from the module.
3	Electronic Suspension Control Module Tip: Remove the electronic suspension control module from the slots in the frame.
