Steering Wheel Schematics

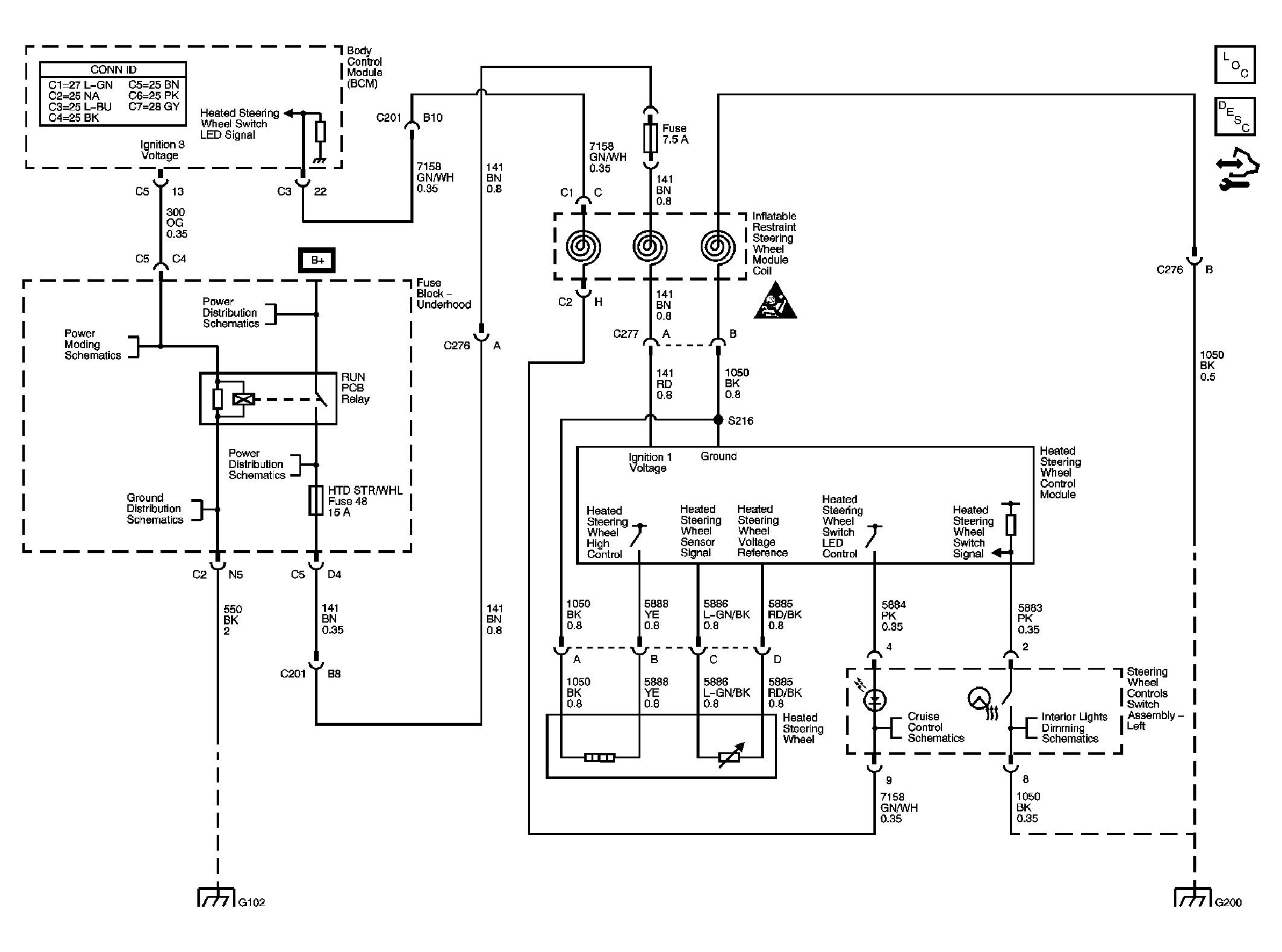

Fig 1: Heated Steering Wheel Schematic

GM1701492

Courtesy of GENERAL MOTORS CORP.
