SIR Schematics

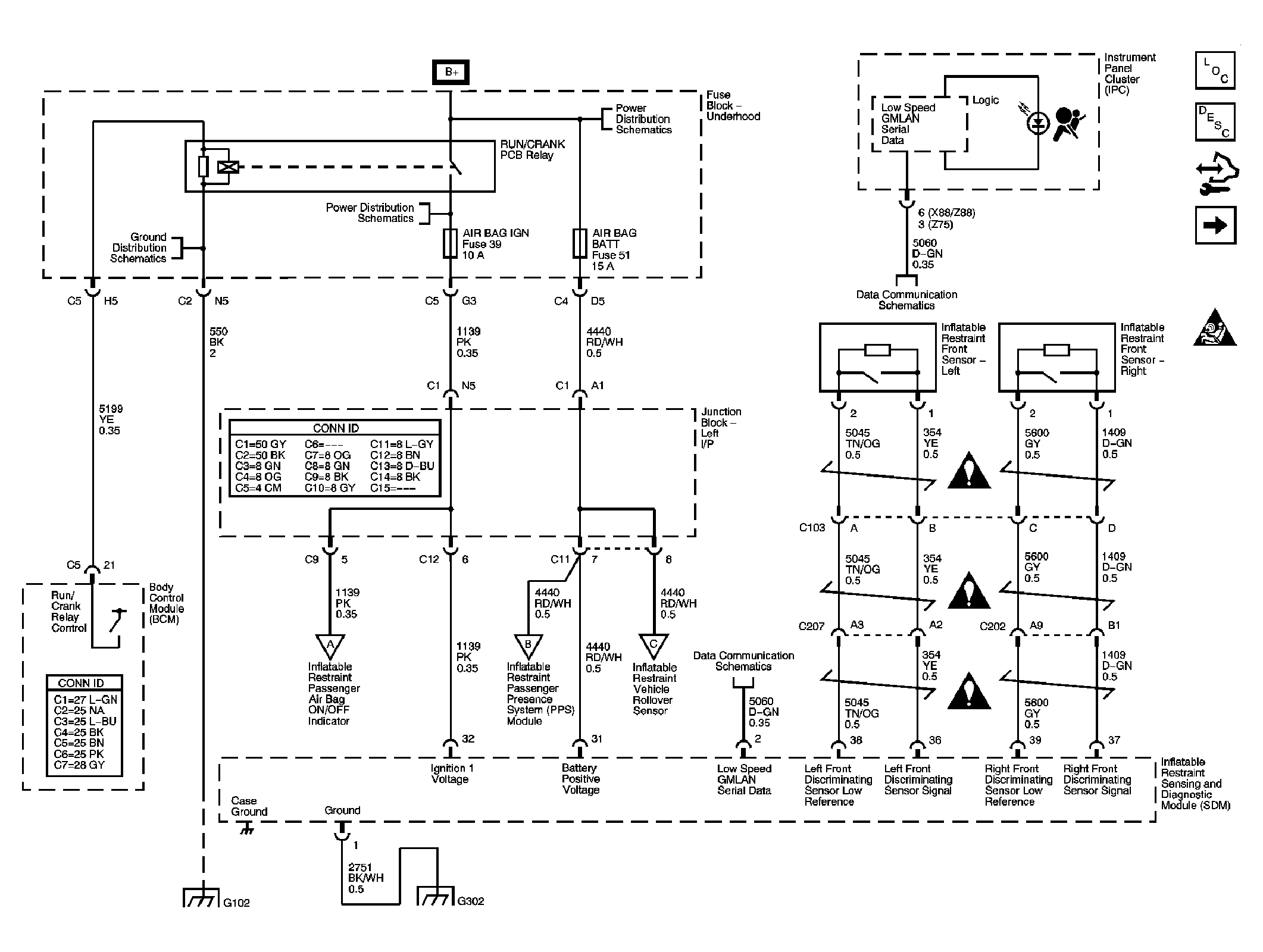

Fig 1: Module Power, Ground, Serial Data & Front Sensors Schematic
GM1700403Courtesy of GENERAL MOTORS CORP.

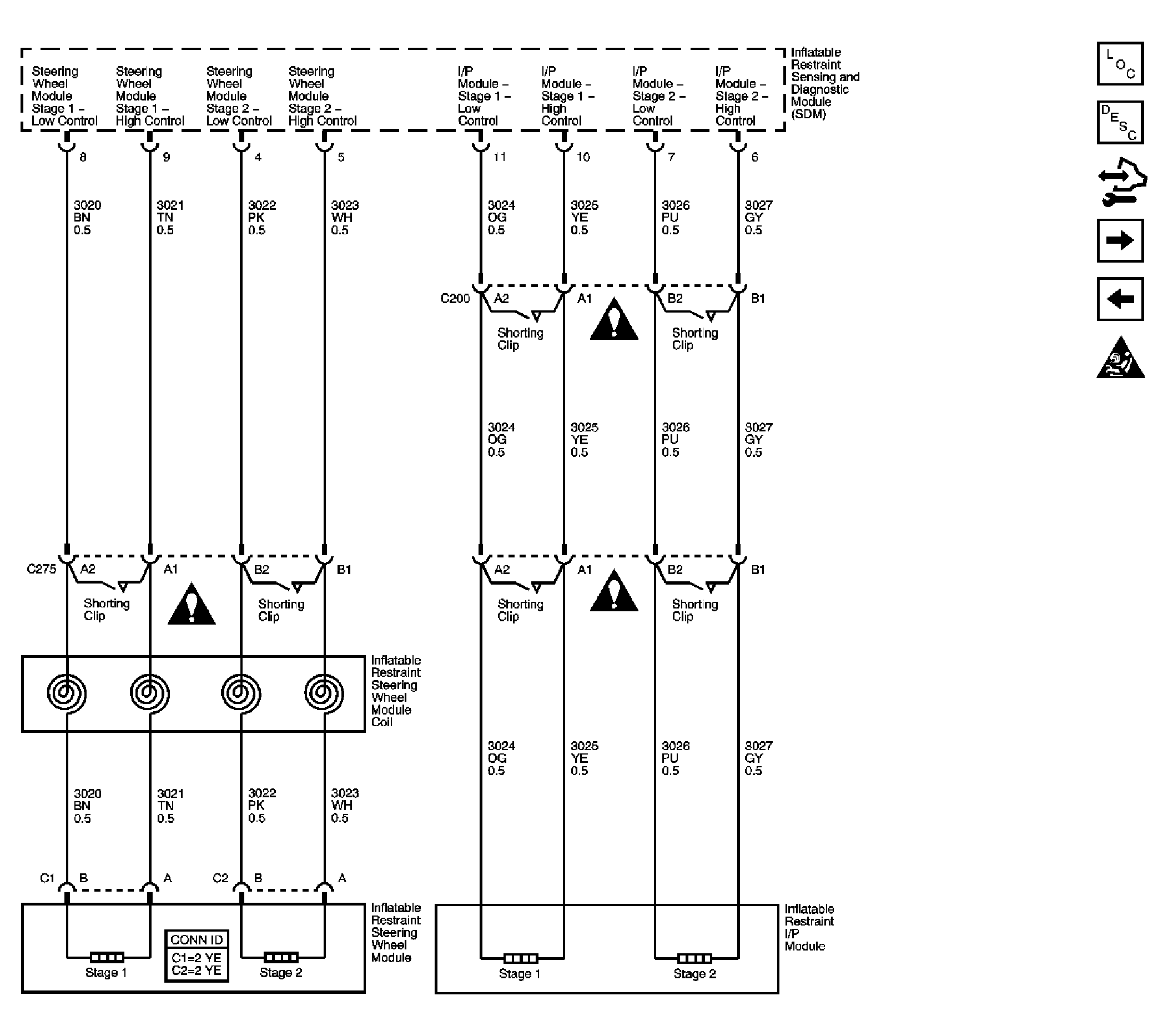

Fig 2: Steering Wheel & I/P Modules Schematic
GM1700404Courtesy of GENERAL MOTORS CORP.

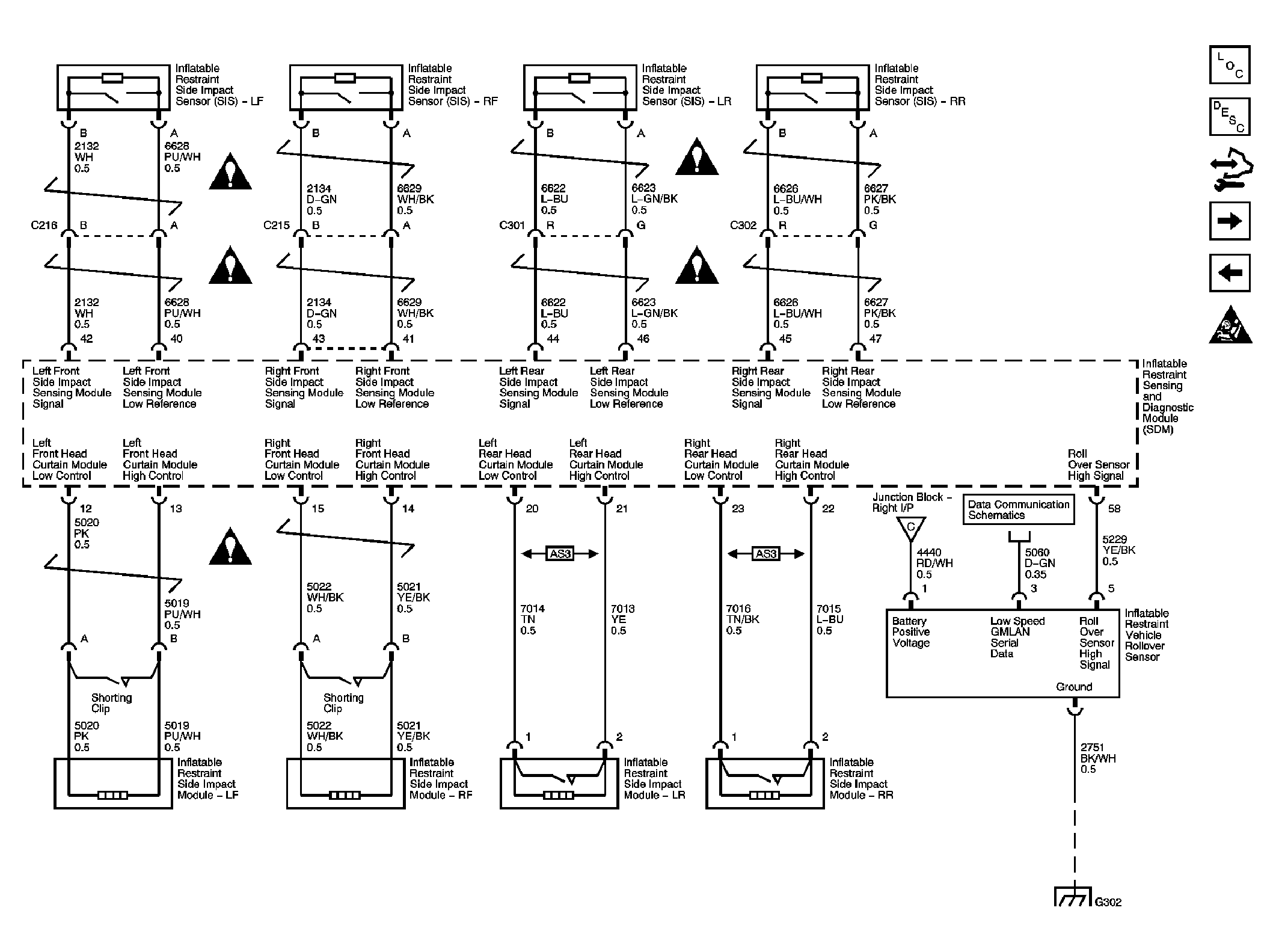

Fig 3: Side Impact Modules & Sensors (ASF) Schematic
GM1700405Courtesy of GENERAL MOTORS CORP.

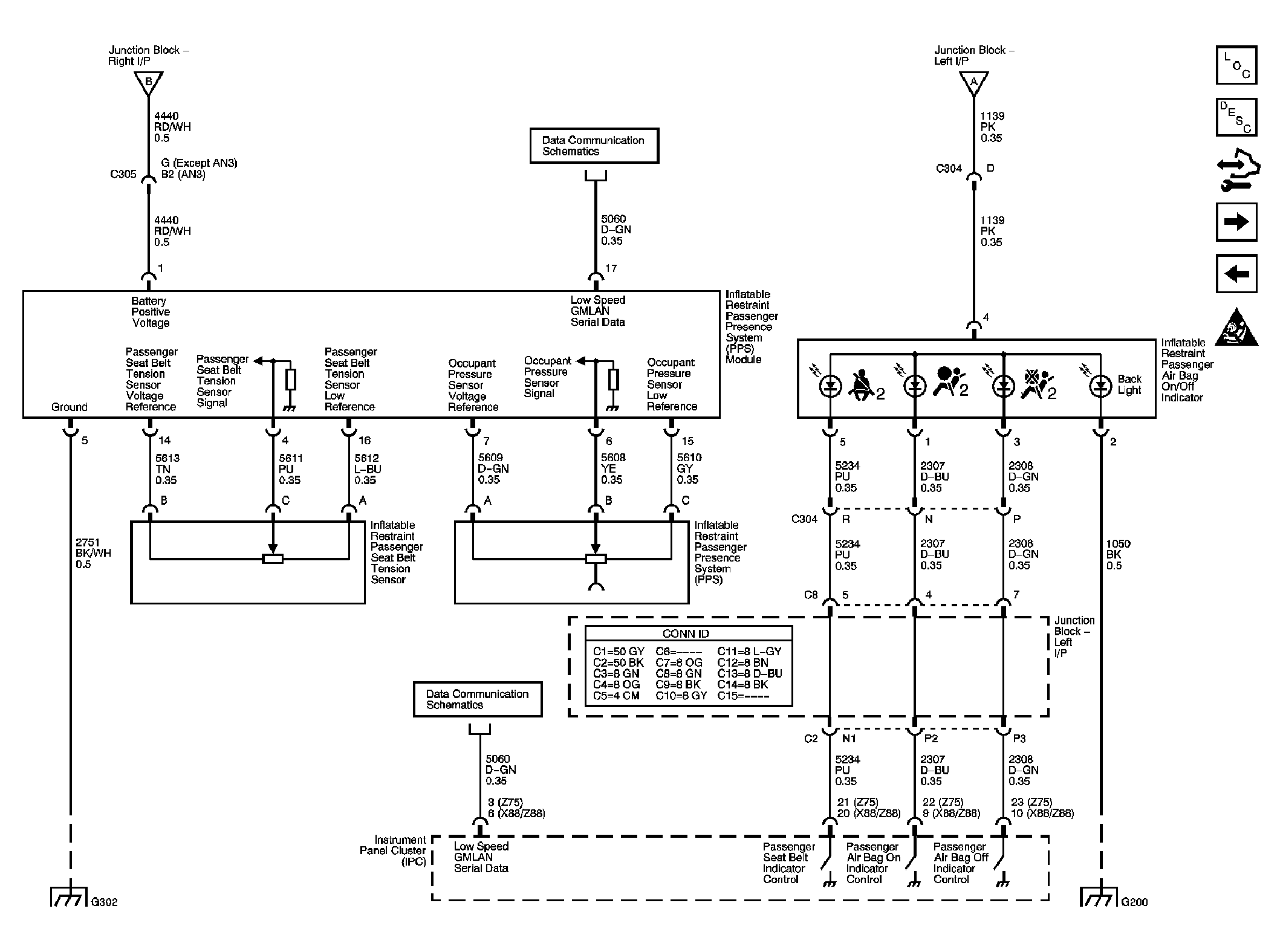

Fig 4: Passenger Presence System - 1 of 2 Schematic
GM1700406Courtesy of GENERAL MOTORS CORP.

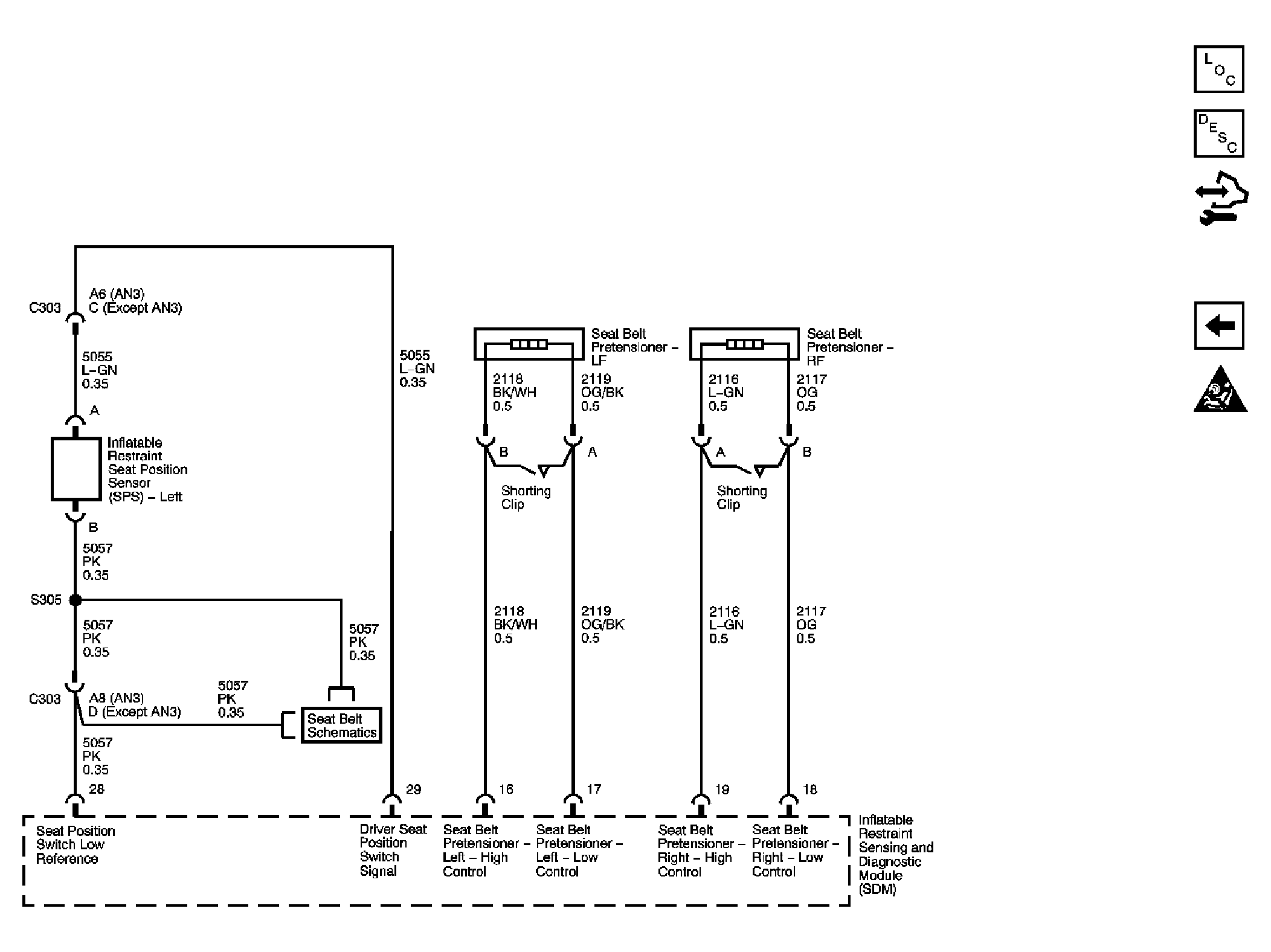

Fig 5: Passenger Presence System - 2 of 2 Schematic
GM1700407Courtesy of GENERAL MOTORS CORP.
