HVAC Schematics

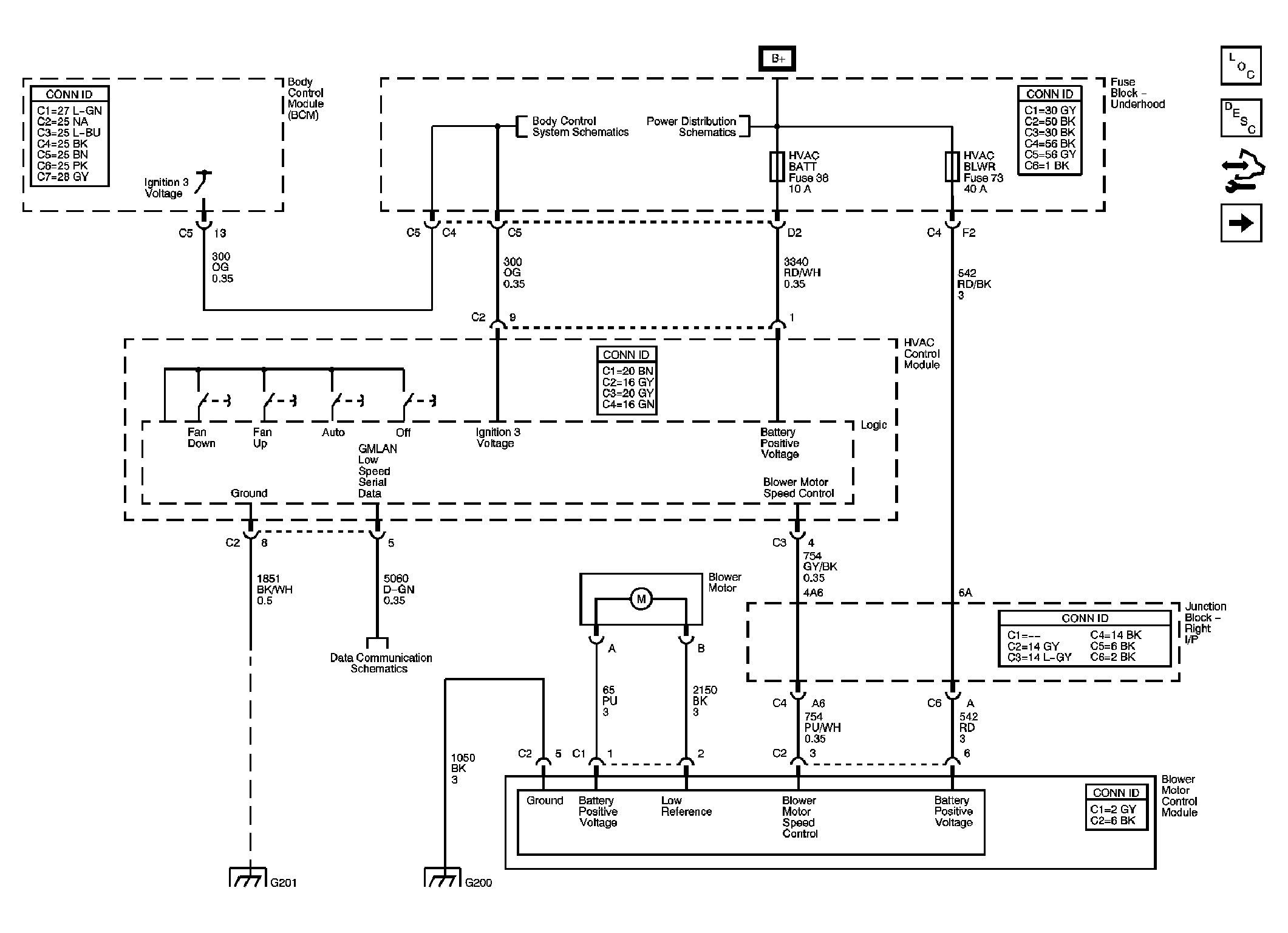

Fig 1: Module Power, Ground, Serial Data & Front Blower Controls Schematic

Courtesy of GENERAL MOTORS CORP.

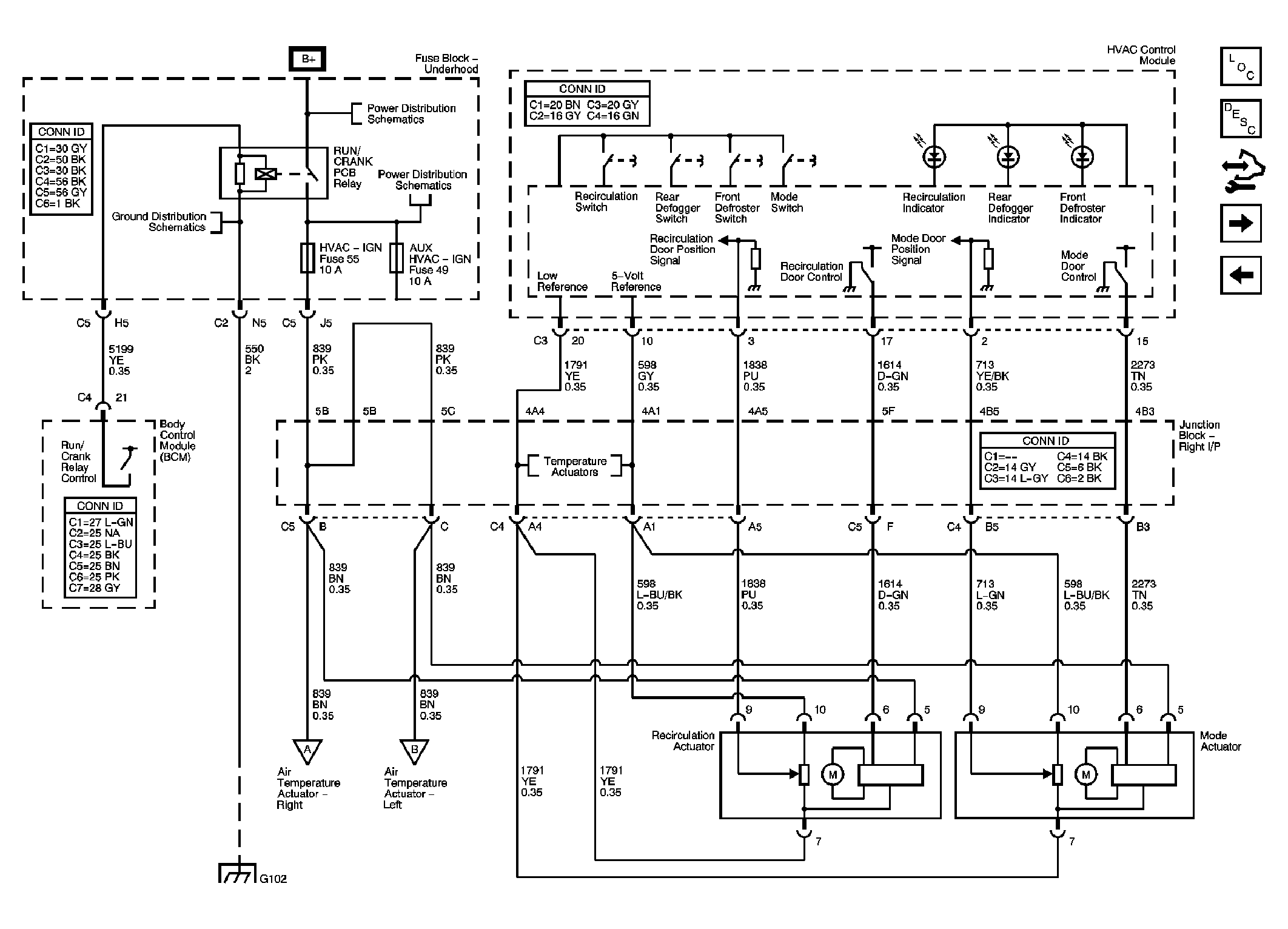

Fig 2: Front Mode Controls Schematic

Courtesy of GENERAL MOTORS CORP.

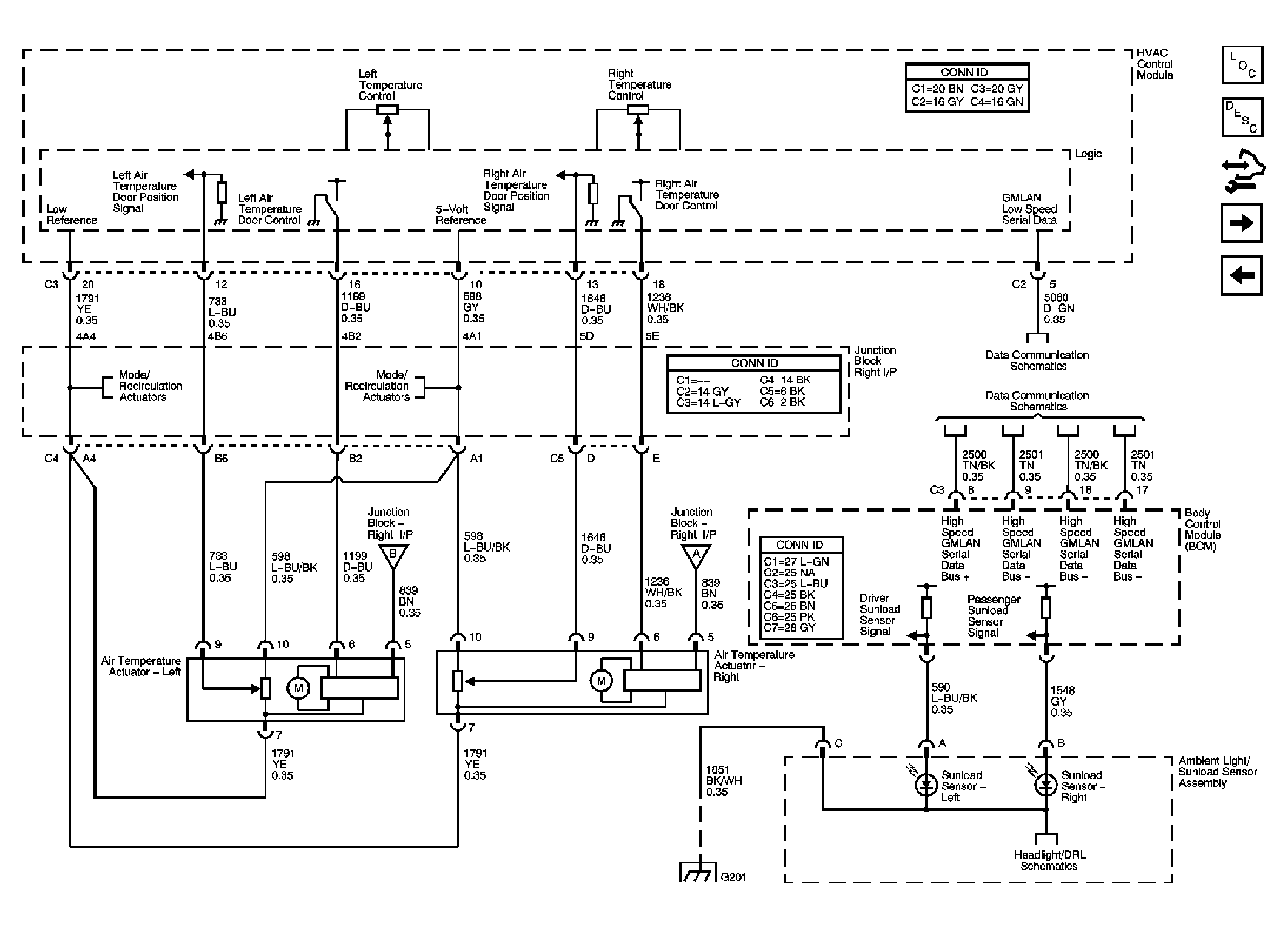

Fig 3: Front Temperature Controls Schematic

Courtesy of GENERAL MOTORS CORP.

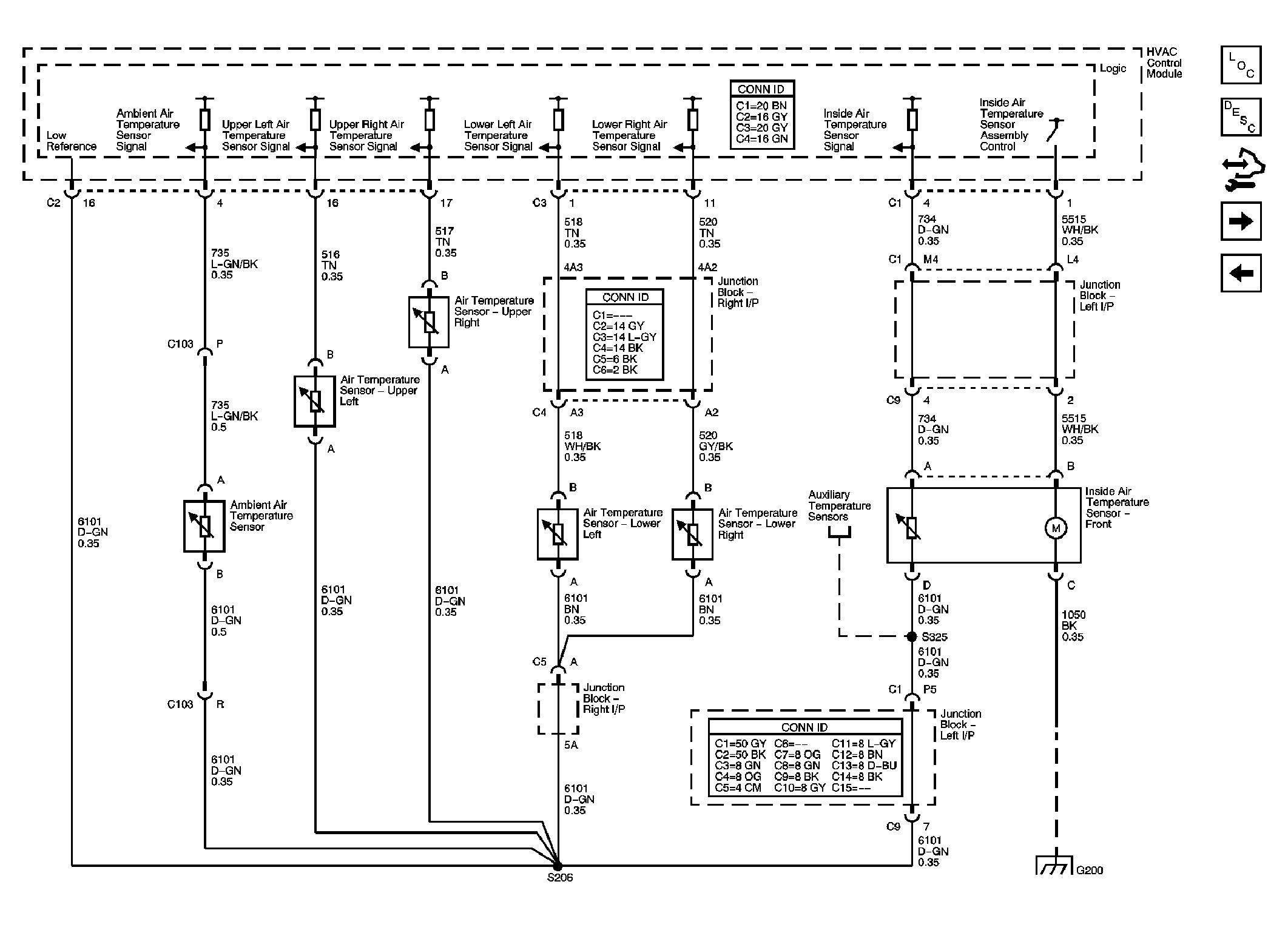

Fig 4: Front Temperature Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

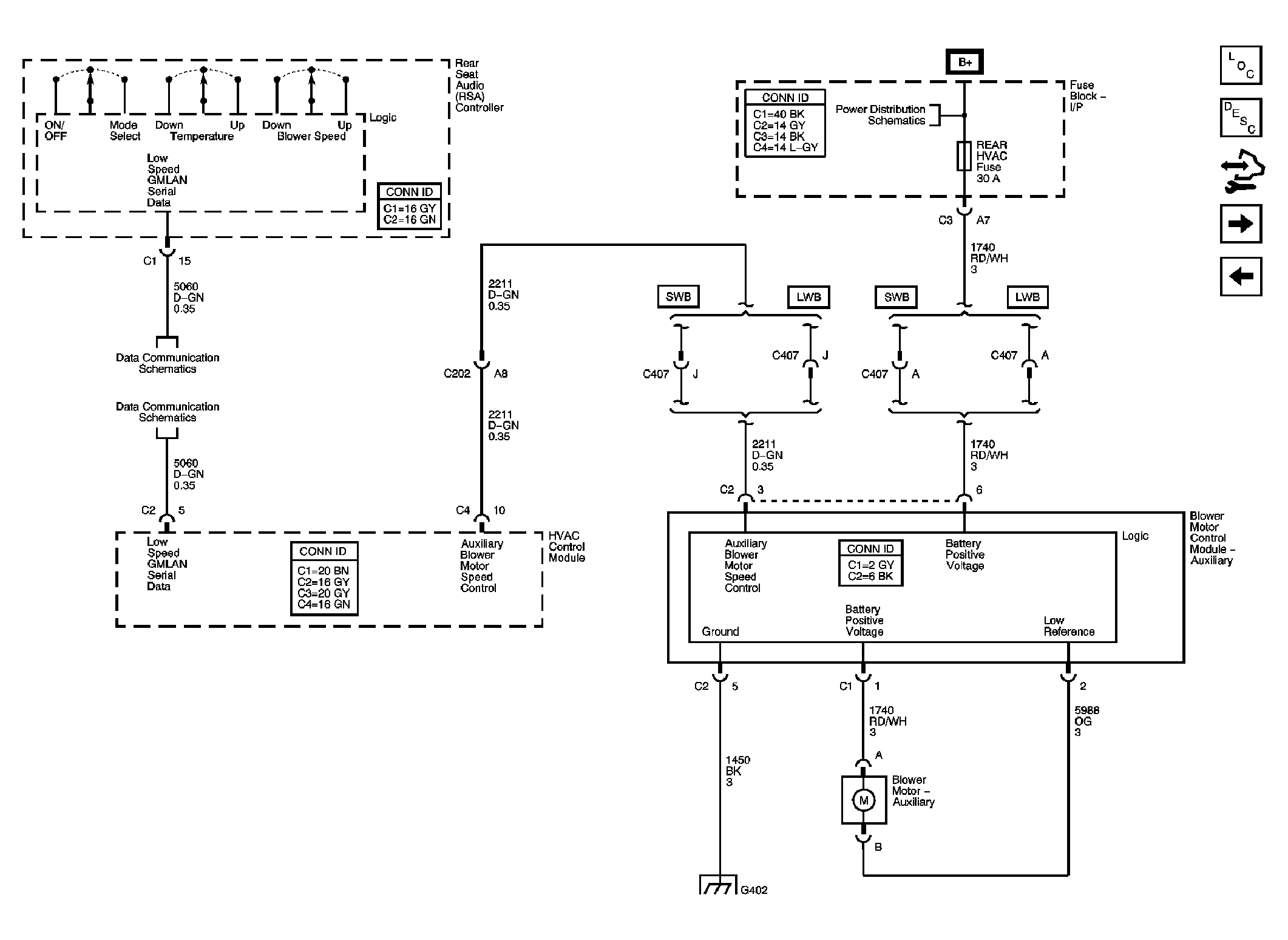

Fig 5: Rear Blower Controls Schematic

Courtesy of GENERAL MOTORS CORP.

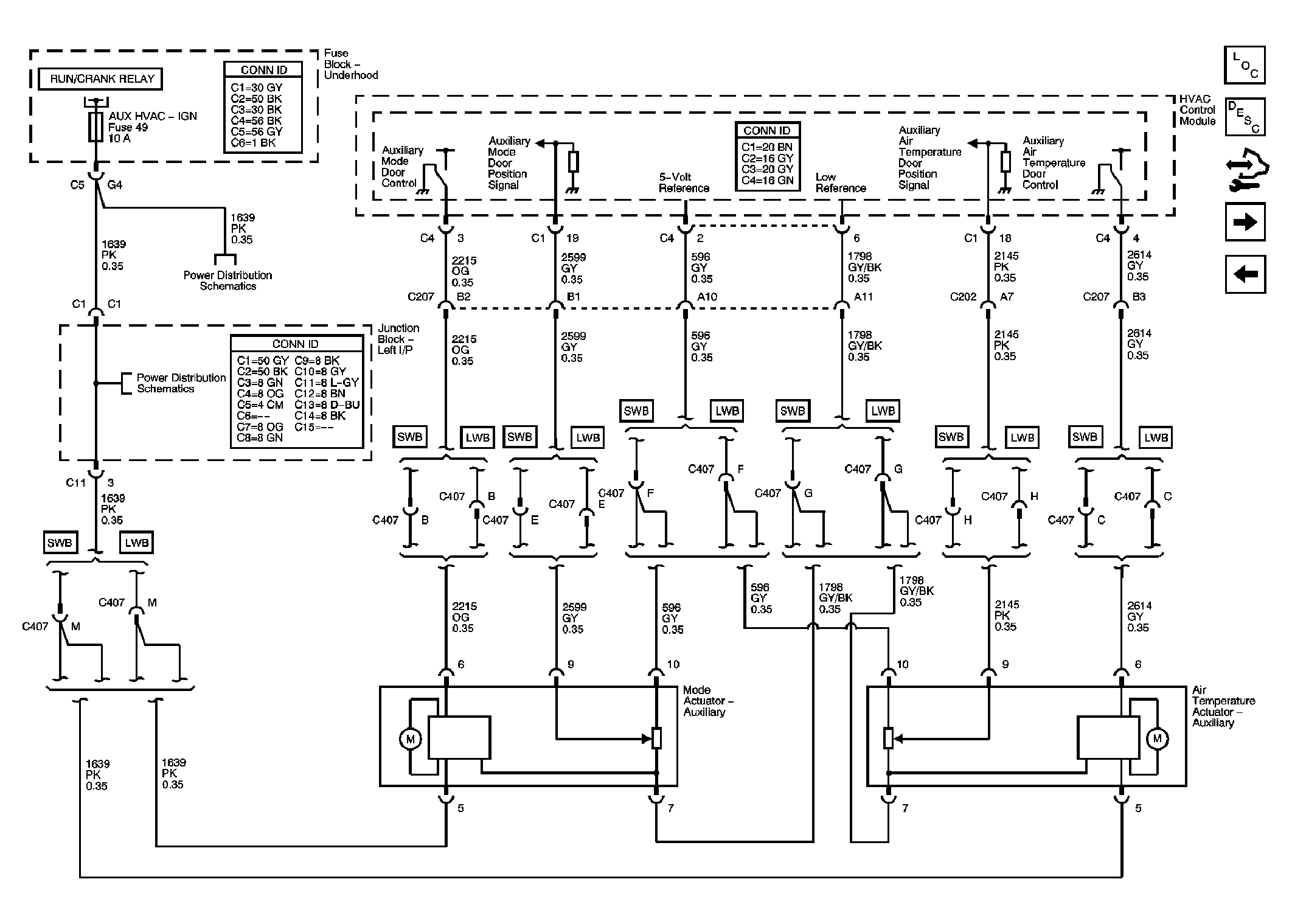

Fig 6: Rear Mode & Temperature Controls Schematic

Courtesy of GENERAL MOTORS CORP.

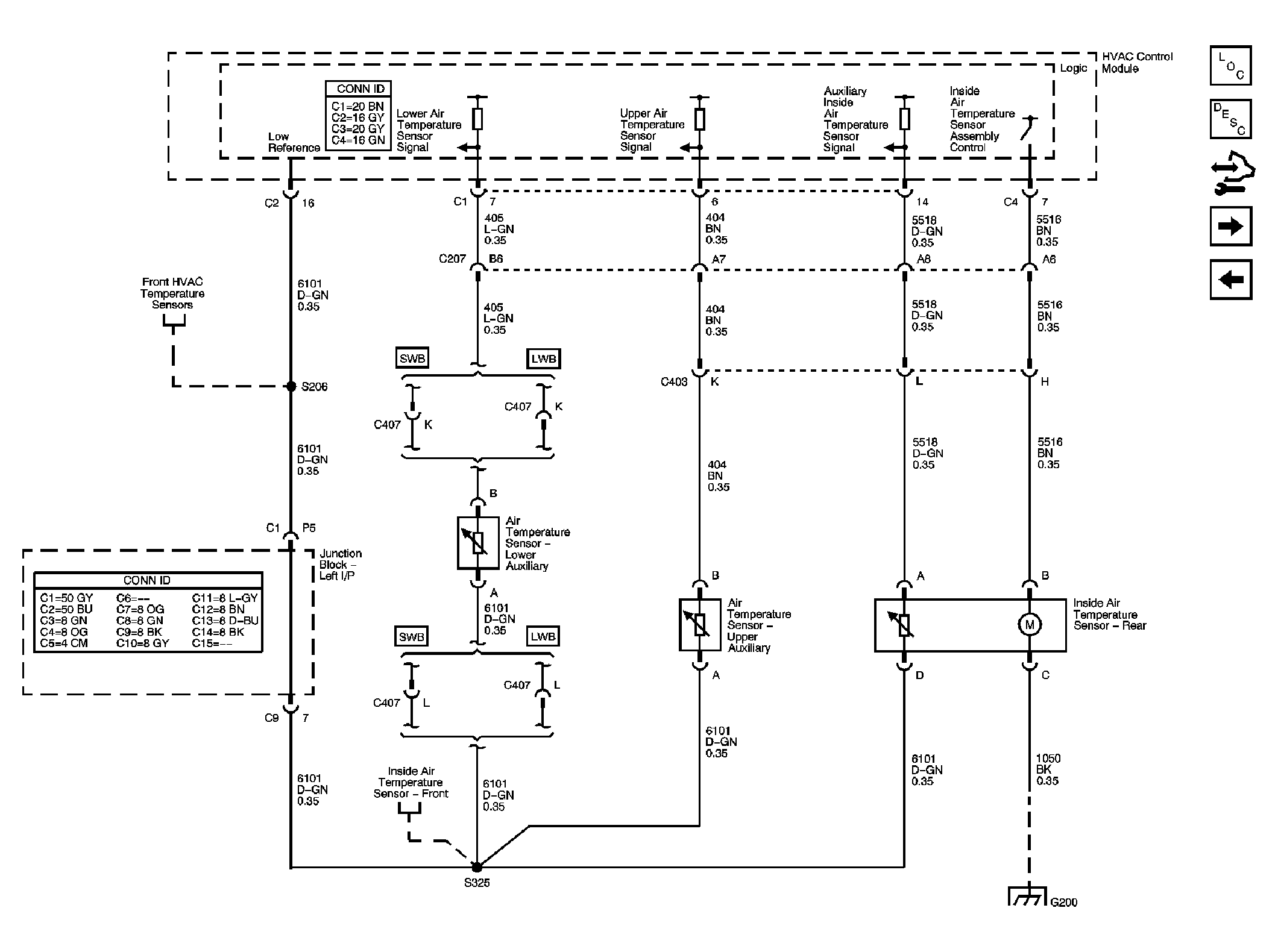

Fig 7: Auxiliary Temperature Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

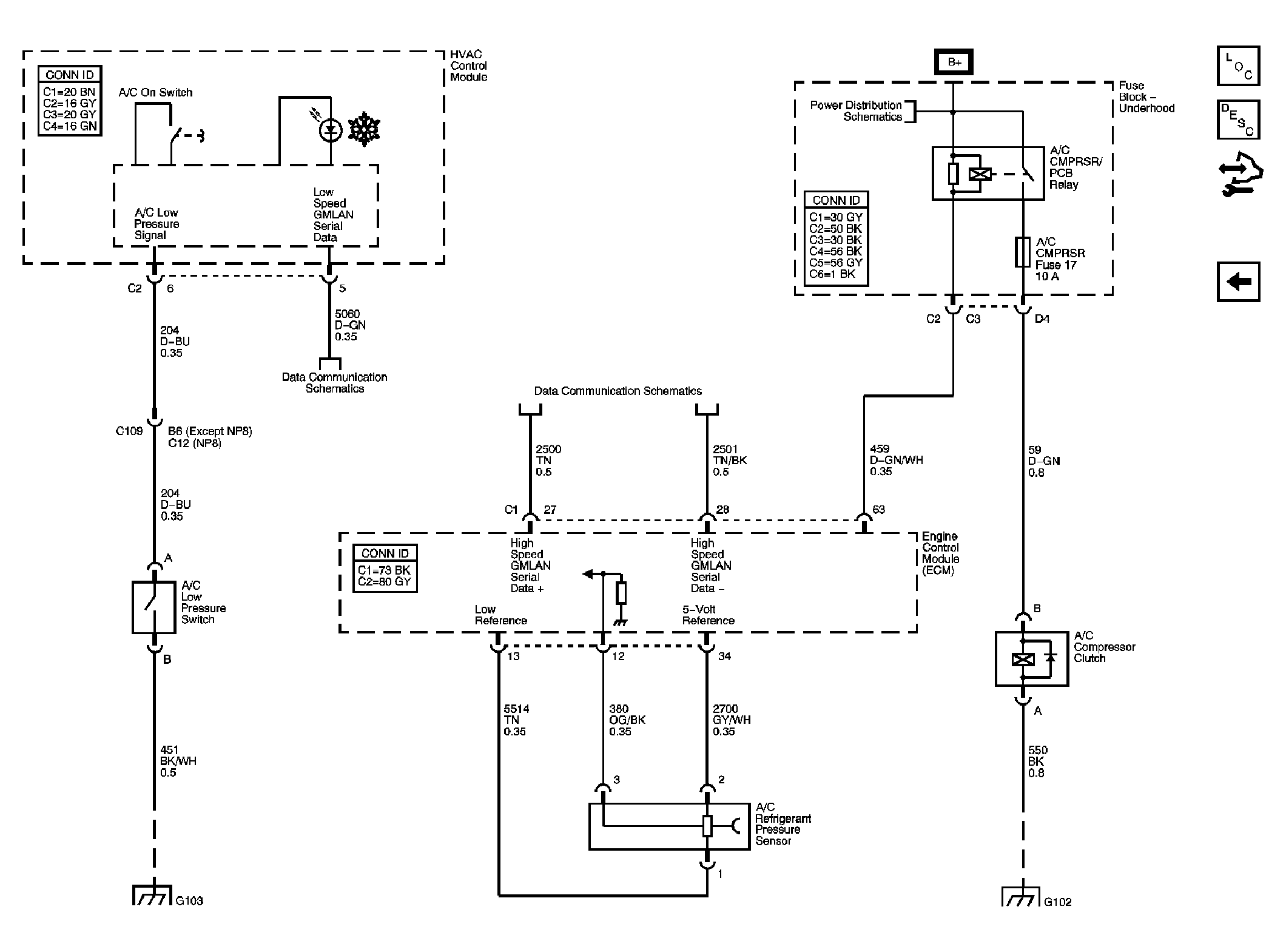

Fig 8: A/C Compressor Controls Schematic

Courtesy of GENERAL MOTORS CORP.
