Fig 1: Module Power, Ground, Serial Data & Stop Lamp Signal Schematic
Courtesy of GENERAL MOTORS CORP.

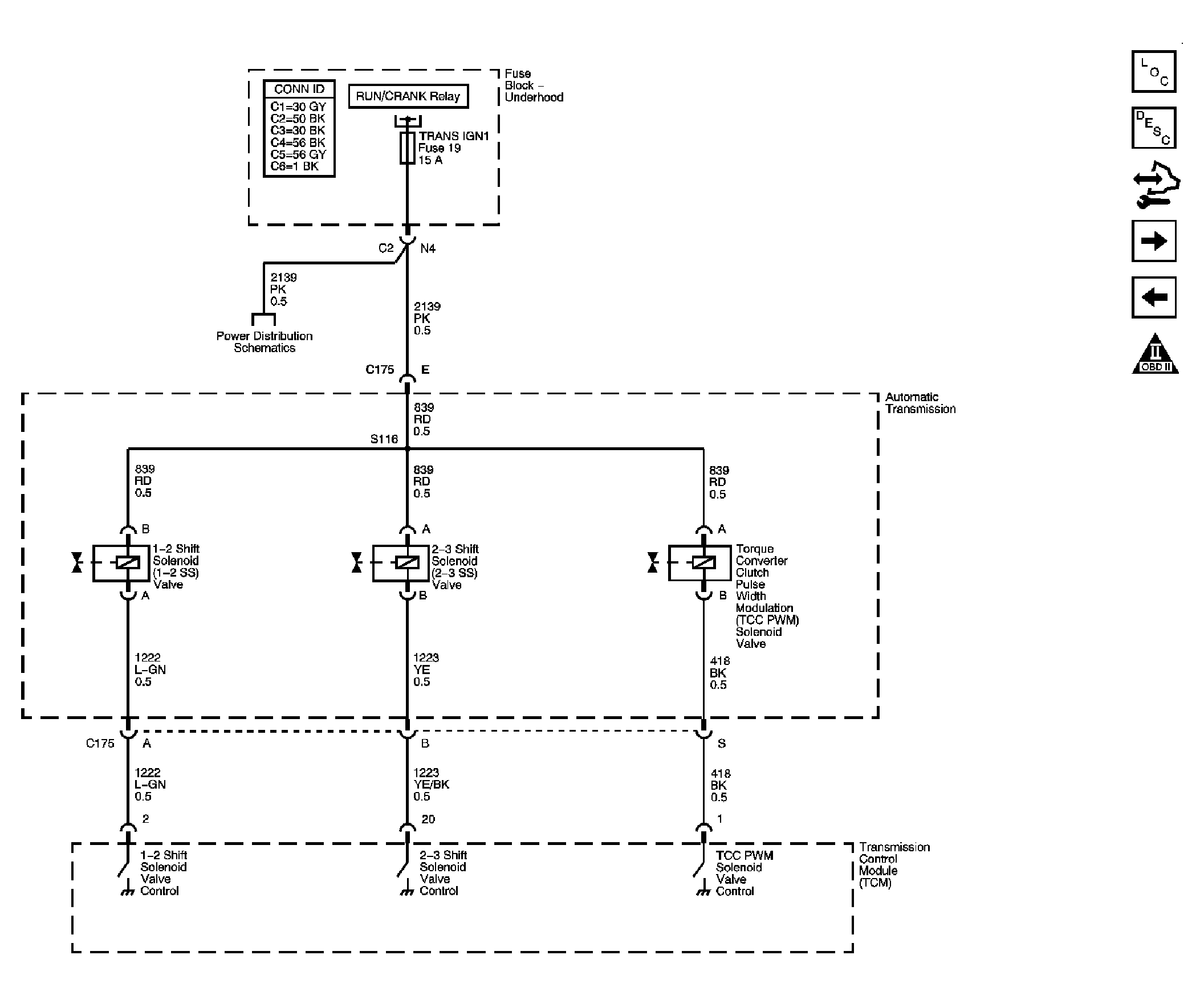

Fig 2: Shift Controls Schematic
Courtesy of GENERAL MOTORS CORP.

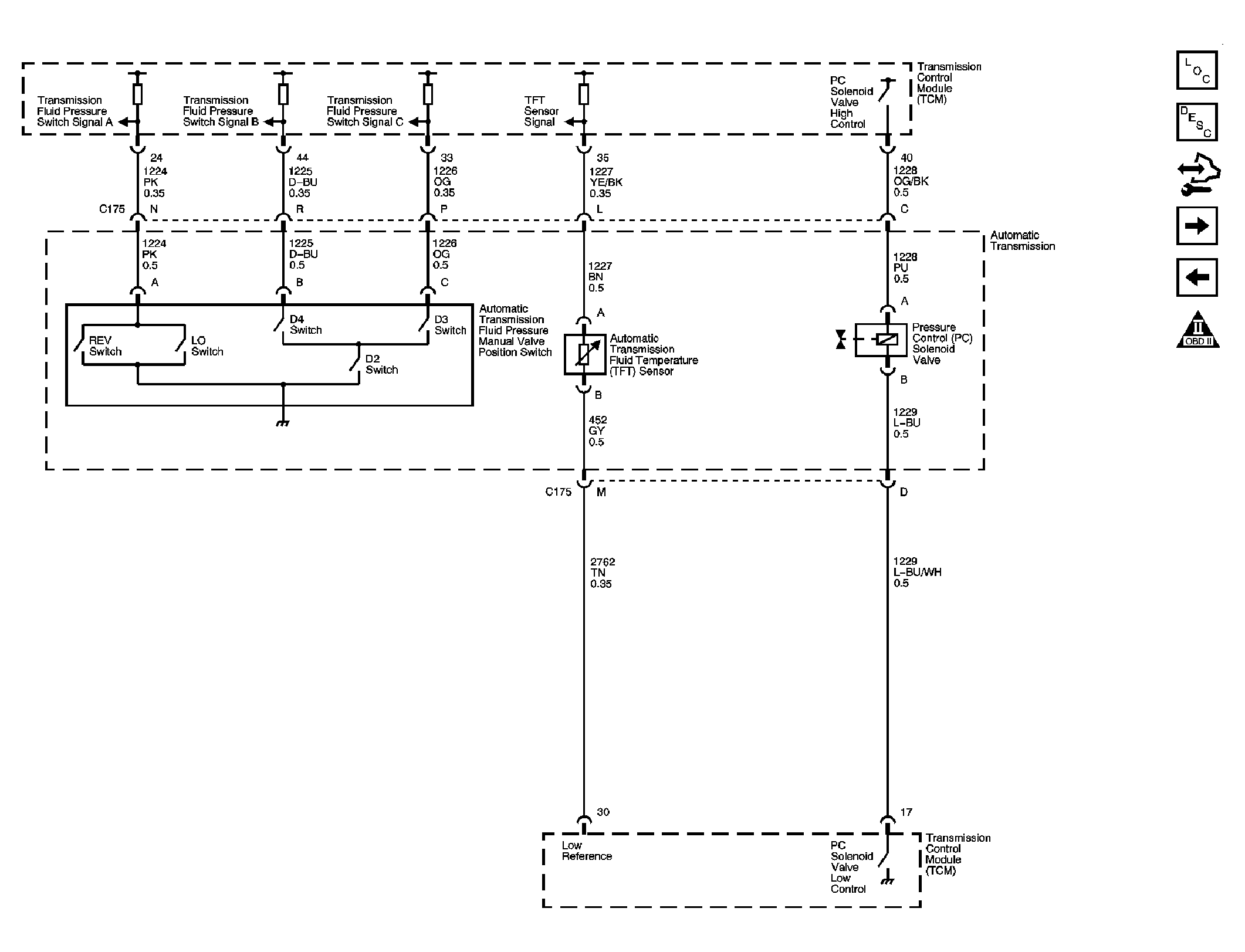

Fig 3: Pressure & Temperature Controls Schematic
Courtesy of GENERAL MOTORS CORP.

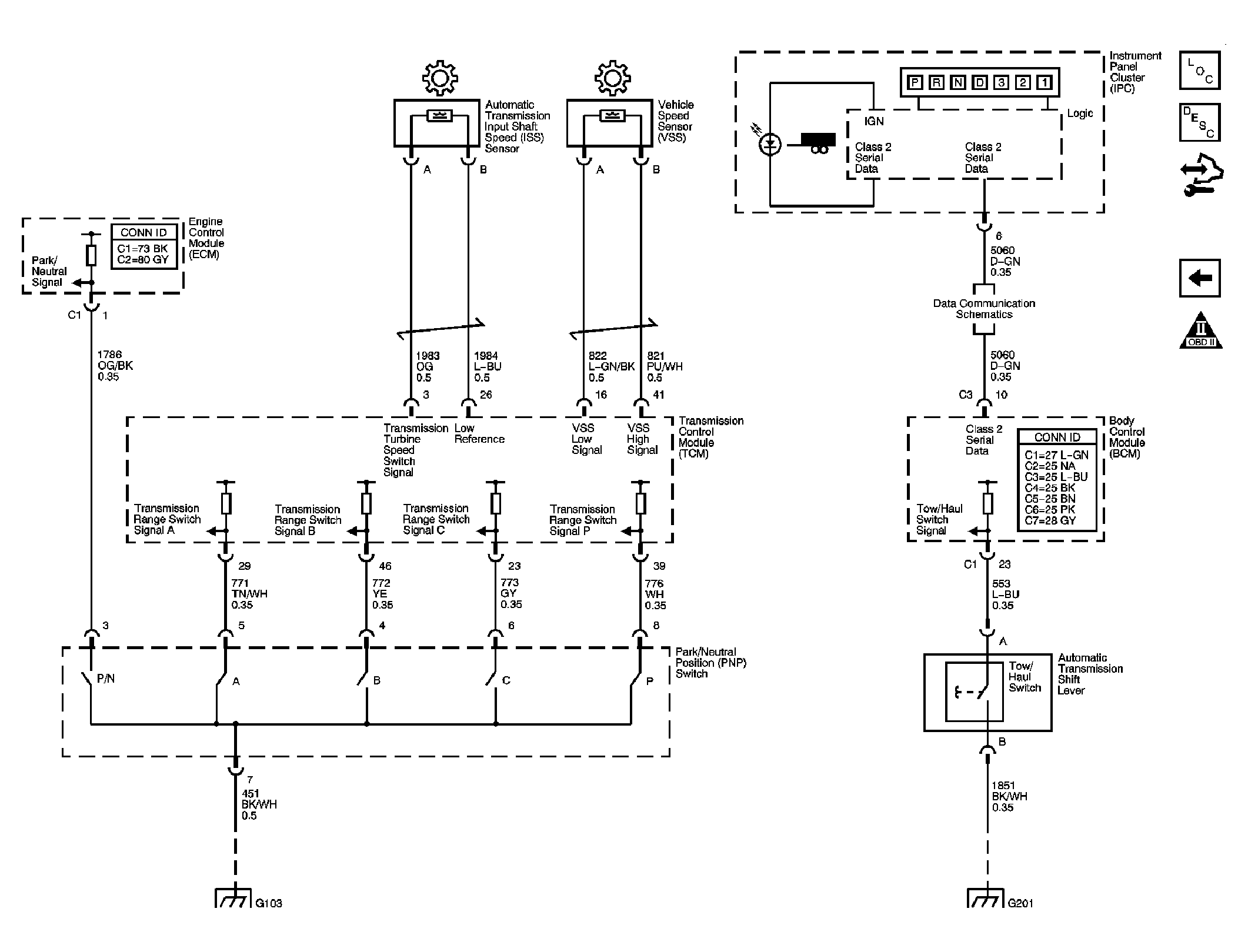

Fig 4: PNP Signal, Speed Signals, & Tow/Haul Signal Schematic
