Installation Procedure

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: All gasket surfaces should be free of oil or other foreign material during assembly.
    Fig 1: Removing/Installing Oil Pressure Sensor & Washer
    GM1403317Courtesy of GENERAL MOTORS CORP.
  1. Apply sealant GM P/N 12346004 (Canadian P/N 10953480) or equivalent, to the threads of the oil pressure sensor.
    2. NOTE: Refer to Fastener Notice .
  2. Install a NEW washer (707) and the oil pressure sensor (706).

    Tighten:  Tighten the sensor to 35 N.m (26 lb ft).

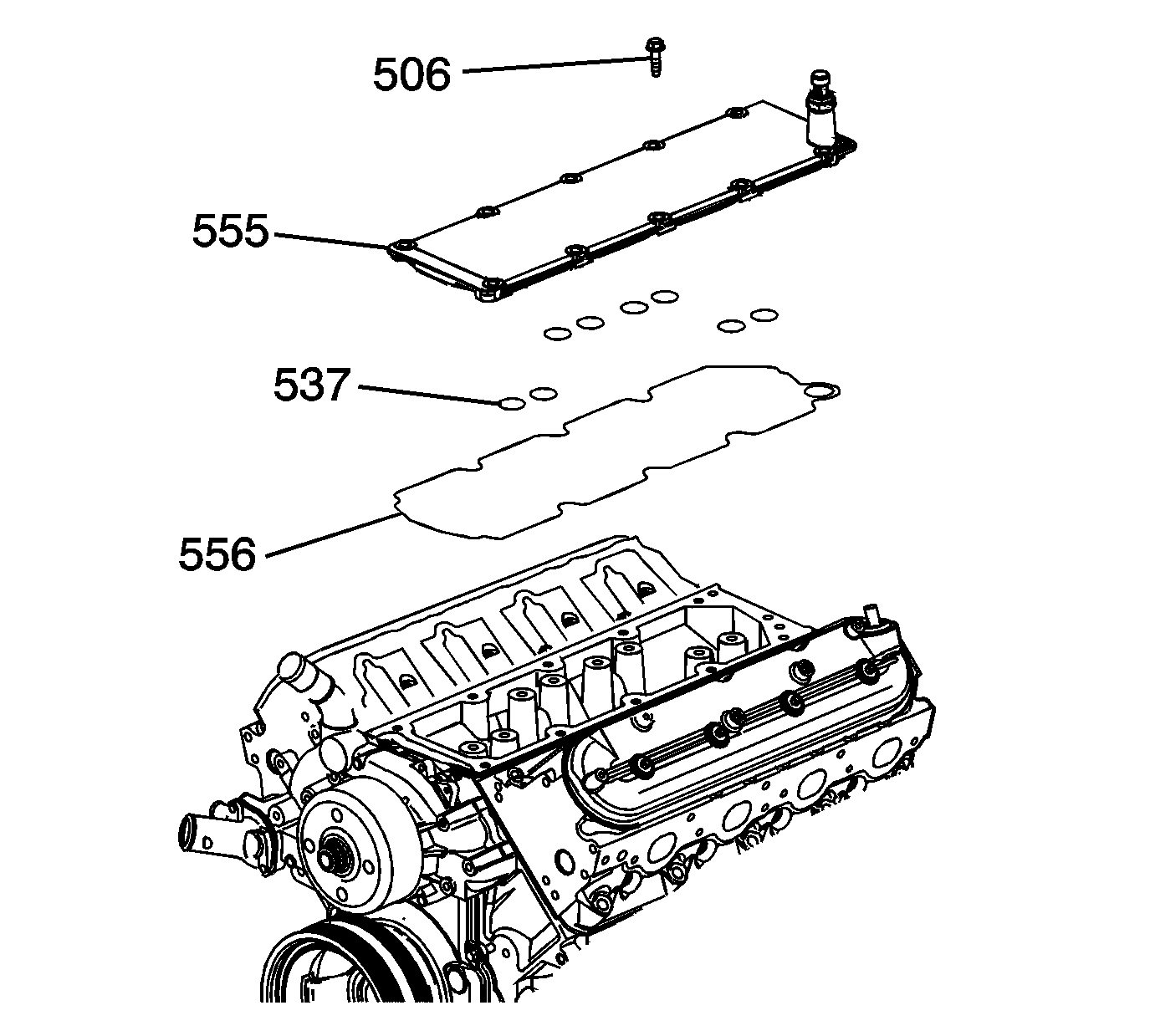

    3. Fig 2: Removing/Installing Engine Valley Cover
    GM1403316Courtesy of GENERAL MOTORS CORP.
  3. Lubricate the O-ring seals with clean engine oil.
  4. Install the O-ring seals (537) to the cover.
  5. Set the engine valley cover (555) onto the engine.
  6. Install the engine valley cover bolts (506).

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

  7. Install the intake manifold. Refer to Intake Manifold Replacement (L92 - First Design)  or Intake Manifold Replacement (L92 - Second Design)  or Intake Manifold Replacement (LY2 and LY6)  or Intake Manifold Replacement (LH6, LMG, LY5 and L76) .
