Instrument Cluster Schematics

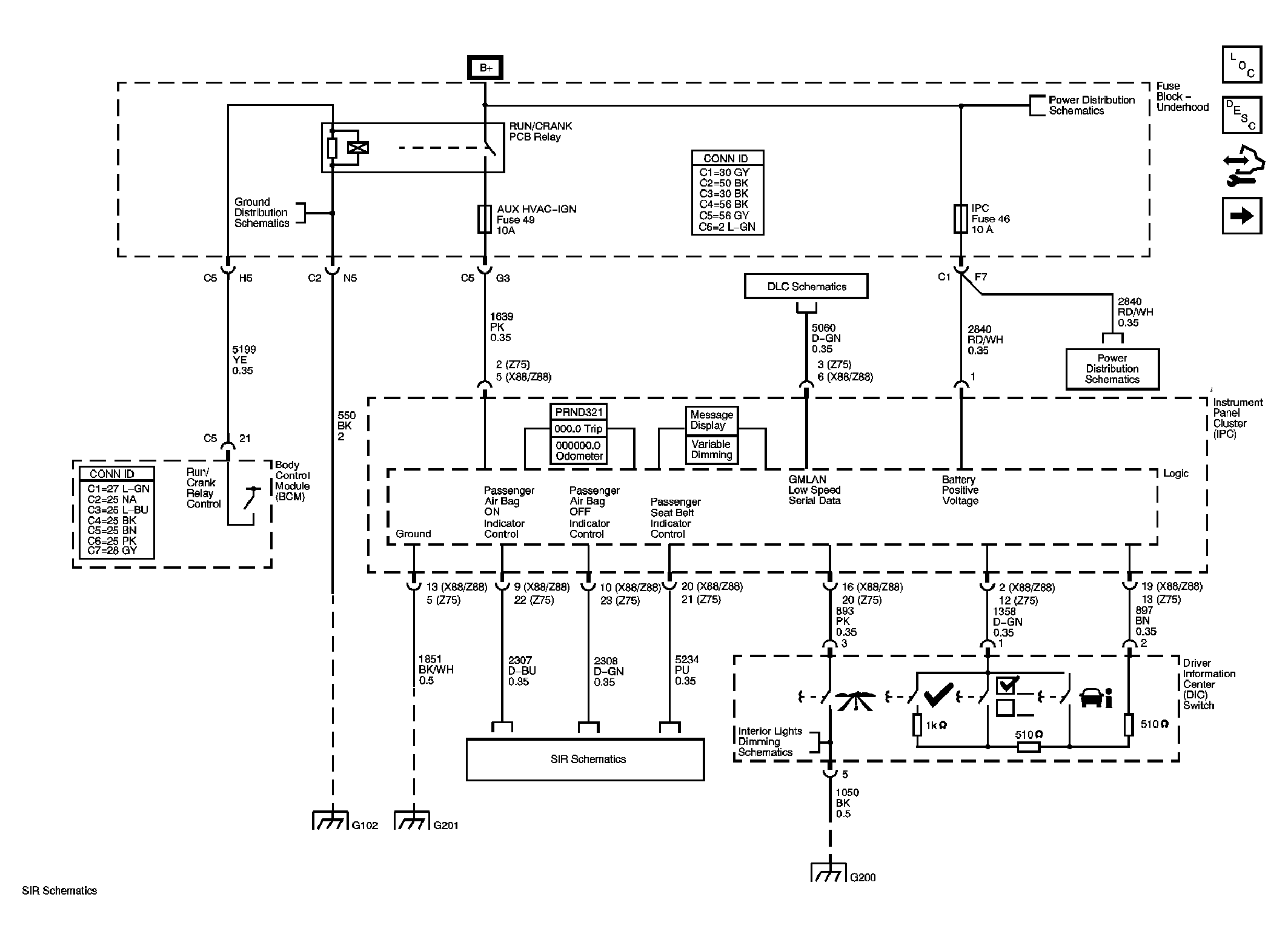

Fig 1: Power, Ground, and Driver Information Controls Schematic
GM1697573Courtesy of GENERAL MOTORS CORP.

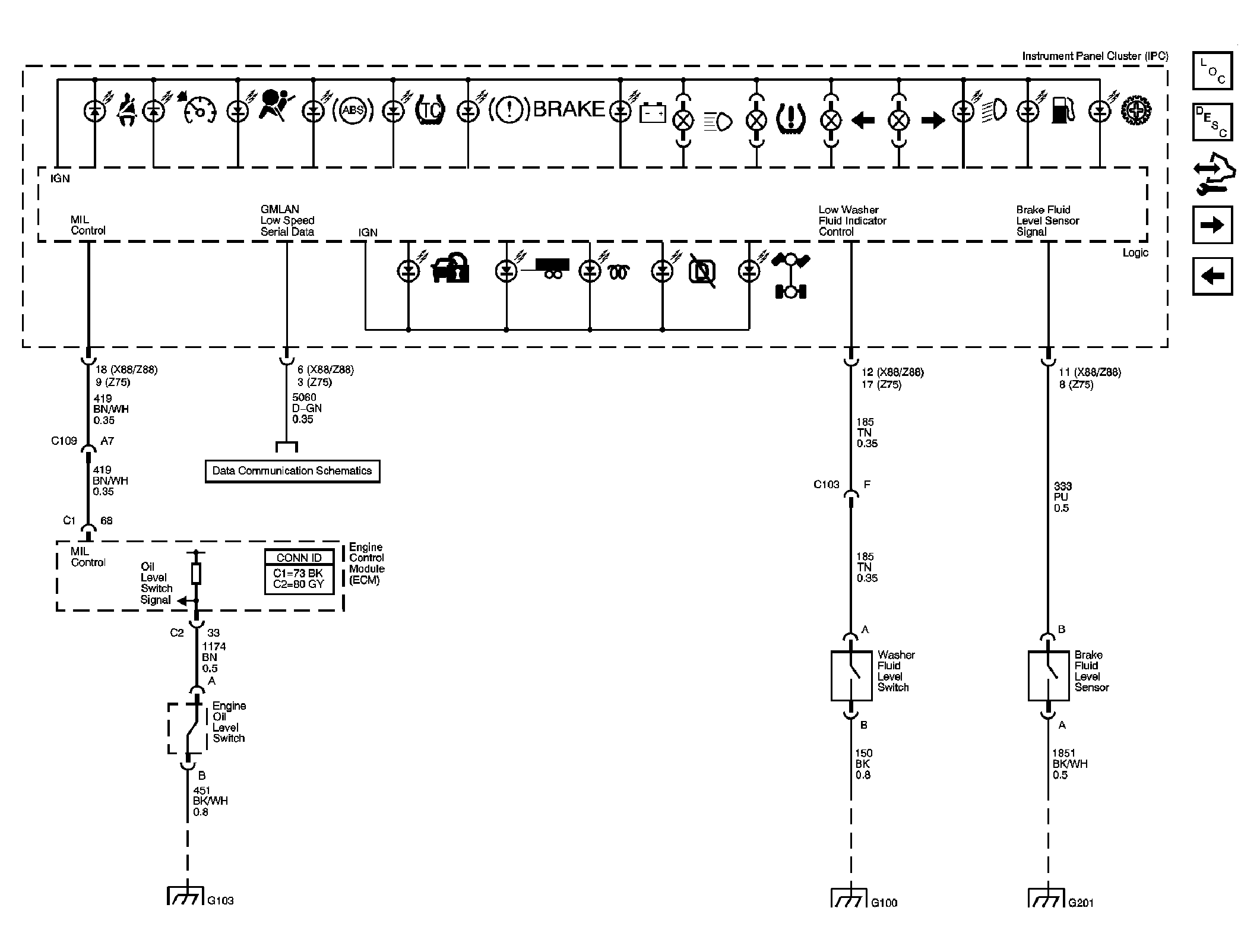

Fig 2: Indicators Schematic
GM1697576Courtesy of GENERAL MOTORS CORP.

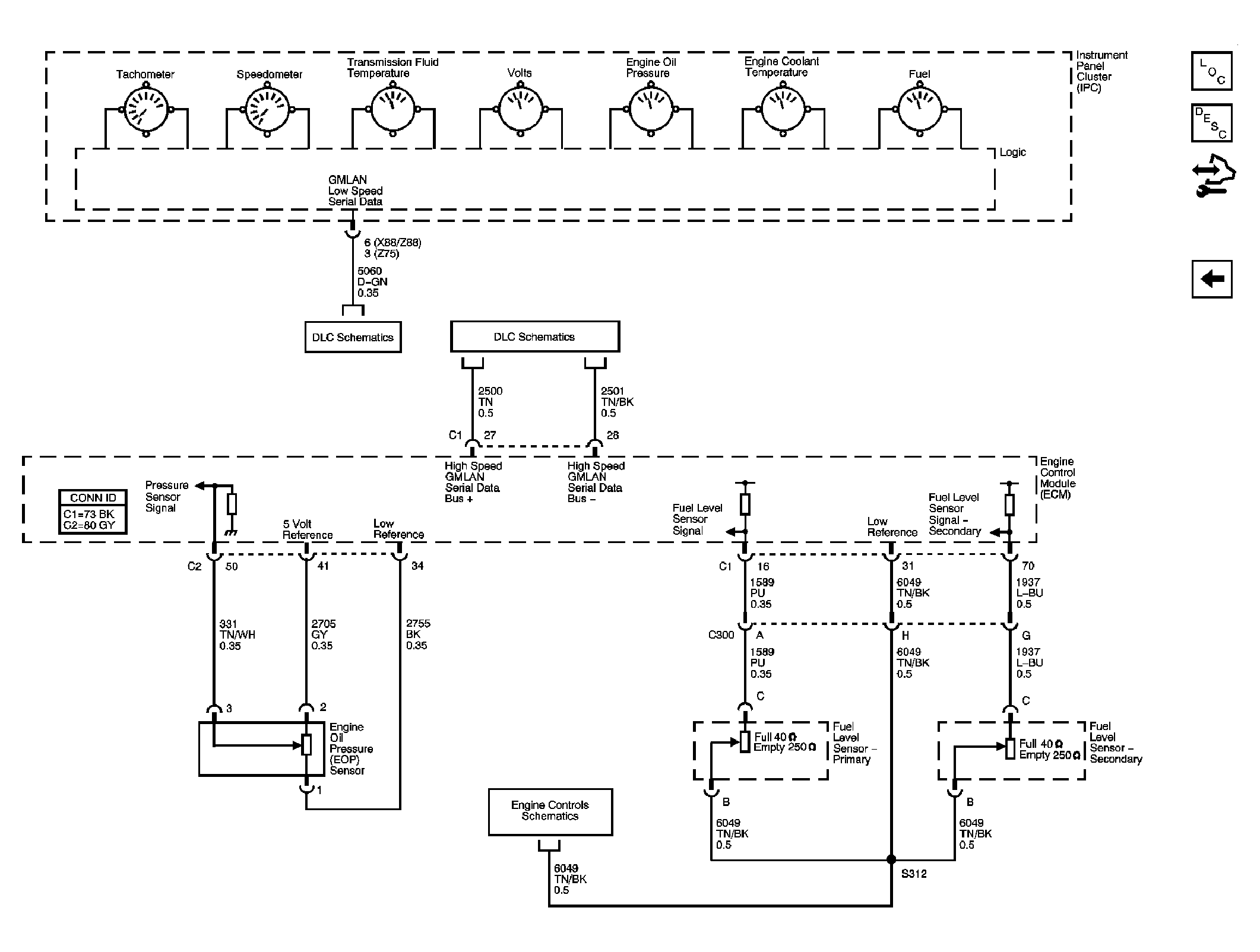

Fig 3: Gages Schematic
GM1697578Courtesy of GENERAL MOTORS CORP.
