Instrument Cluster Replacement (Cadillac)

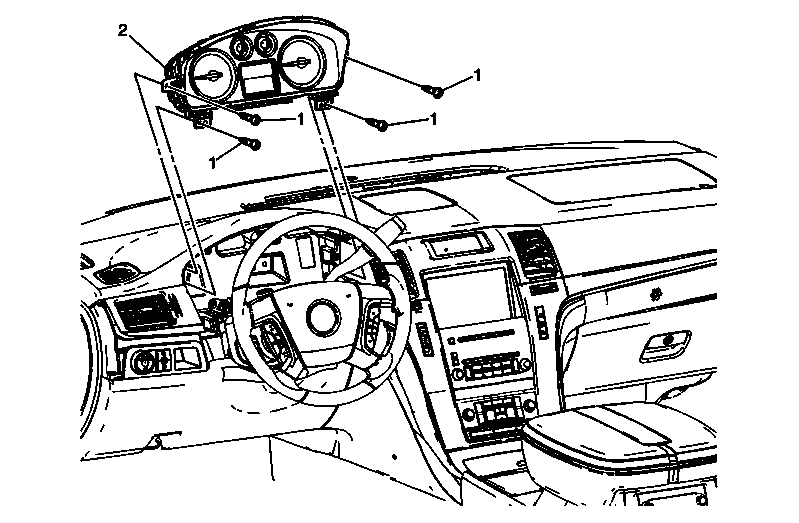

Fig 1: View Of Instrument Panel Cluster Assembly, Bolts & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel cluster trim plate bezel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster (Cadillac) or Trim Panel Replacement - Instrument Panel (I/P) Cluster (Except Cadillac) .
1	Instrument Panel Cluster Assembly Bolts/Screws (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Instrument Panel Cluster Assembly Tip: Disconnect electrical connections. A replacement cluster must be programmed. Refer to Control Module References .
