Accessory Switch Replacement (Cadillac)

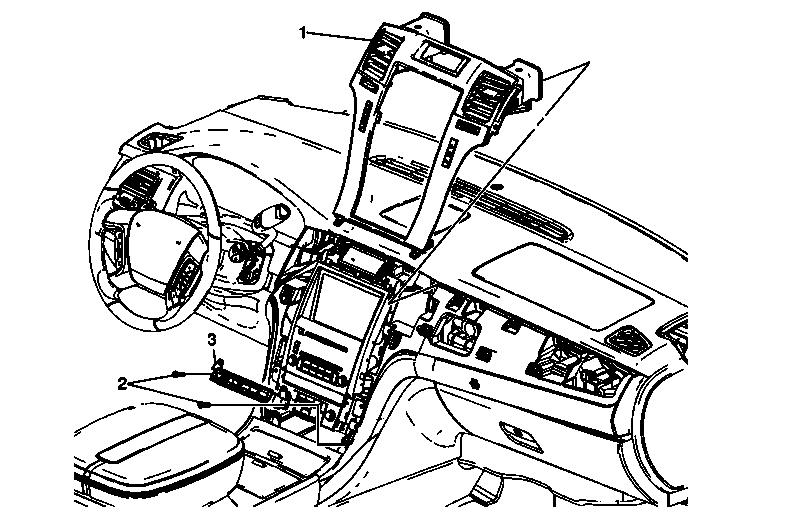

Fig 1: View Of Instrument Panel Accessory Switch Assembly, Trim Plates & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Accessory Trim Plate Refer to Instrument Panel Accessory Trim Plate Replacement (Cadillac) or Instrument Panel Accessory Trim Plate Replacement (Except Cadillac) .
2	Instrument Panel Accessory Switch Screws (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
3	Instrument Panel Accessory Switch Assembly Tip: Disconnect the electrical connection.
