Rear Seat Schematics

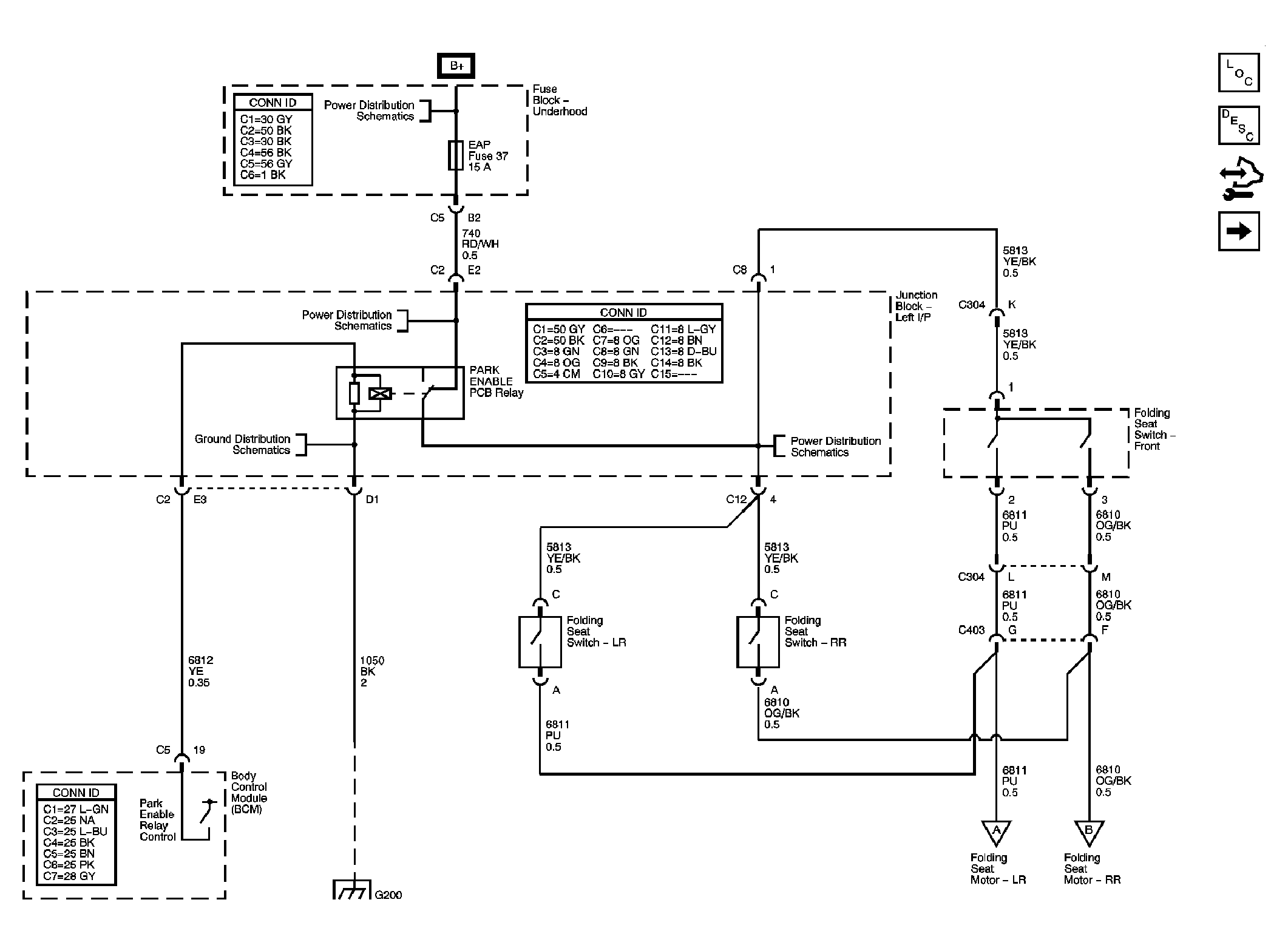

Fig 1: Folding Seat Controls - ARS Schematic

GM1703547

Courtesy of GENERAL MOTORS CORP.

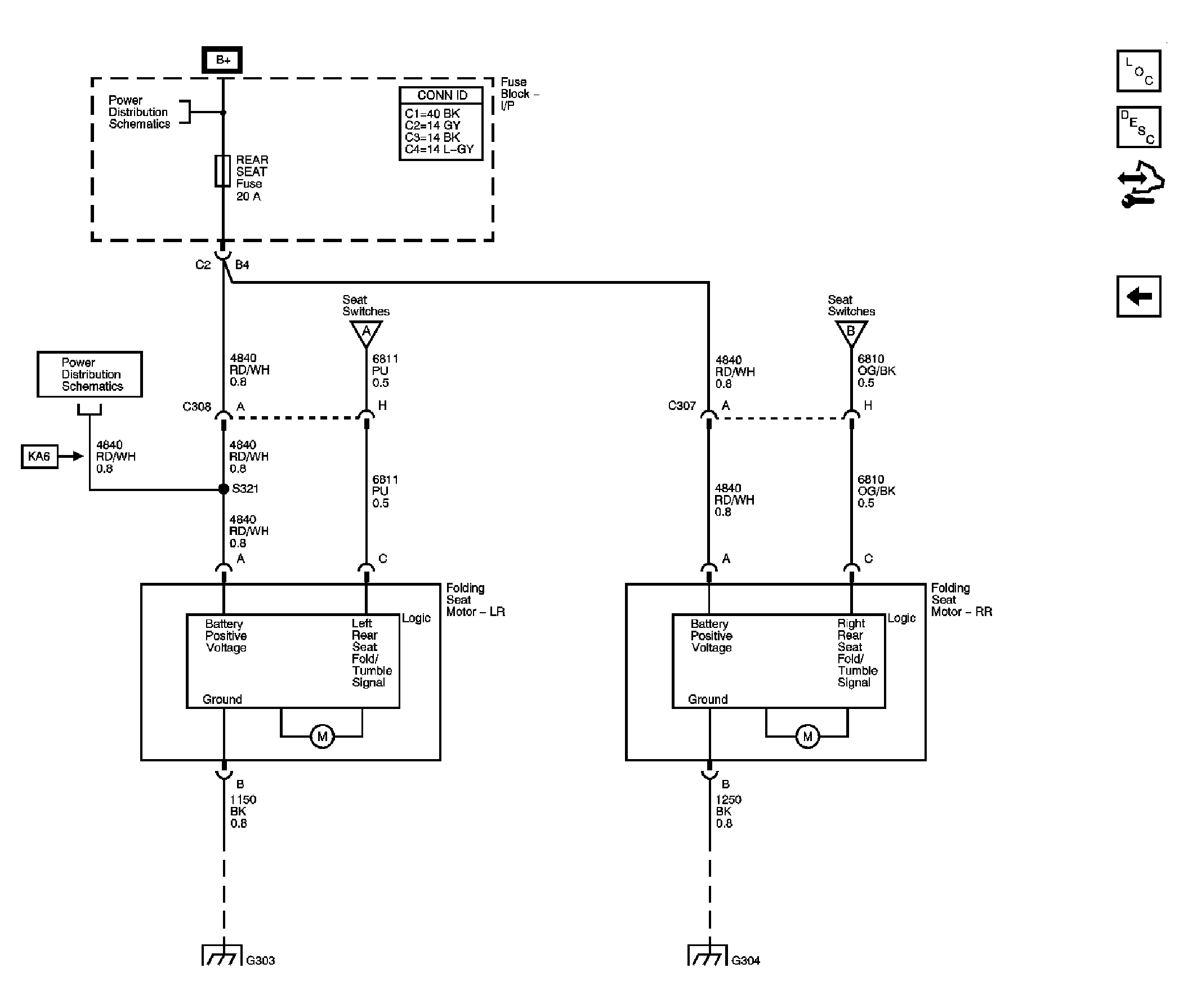

Fig 2: Folding Seat Motors - ARS Schematic

GM1703548

Courtesy of GENERAL MOTORS CORP.
