Passenger Seat Schematics

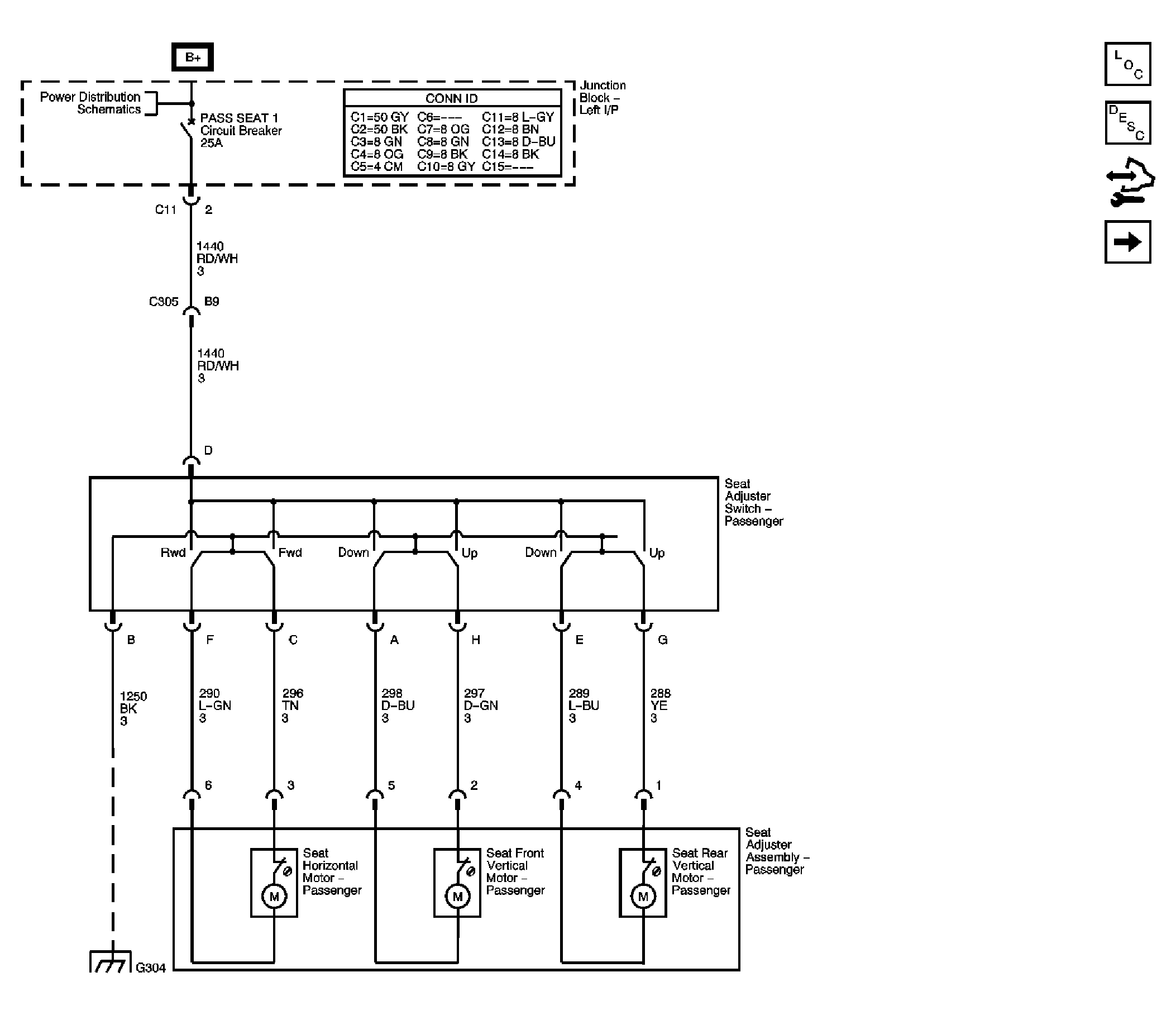

Fig 1: Except AN3 Schematic

GM1818991

Courtesy of GENERAL MOTORS CORP.

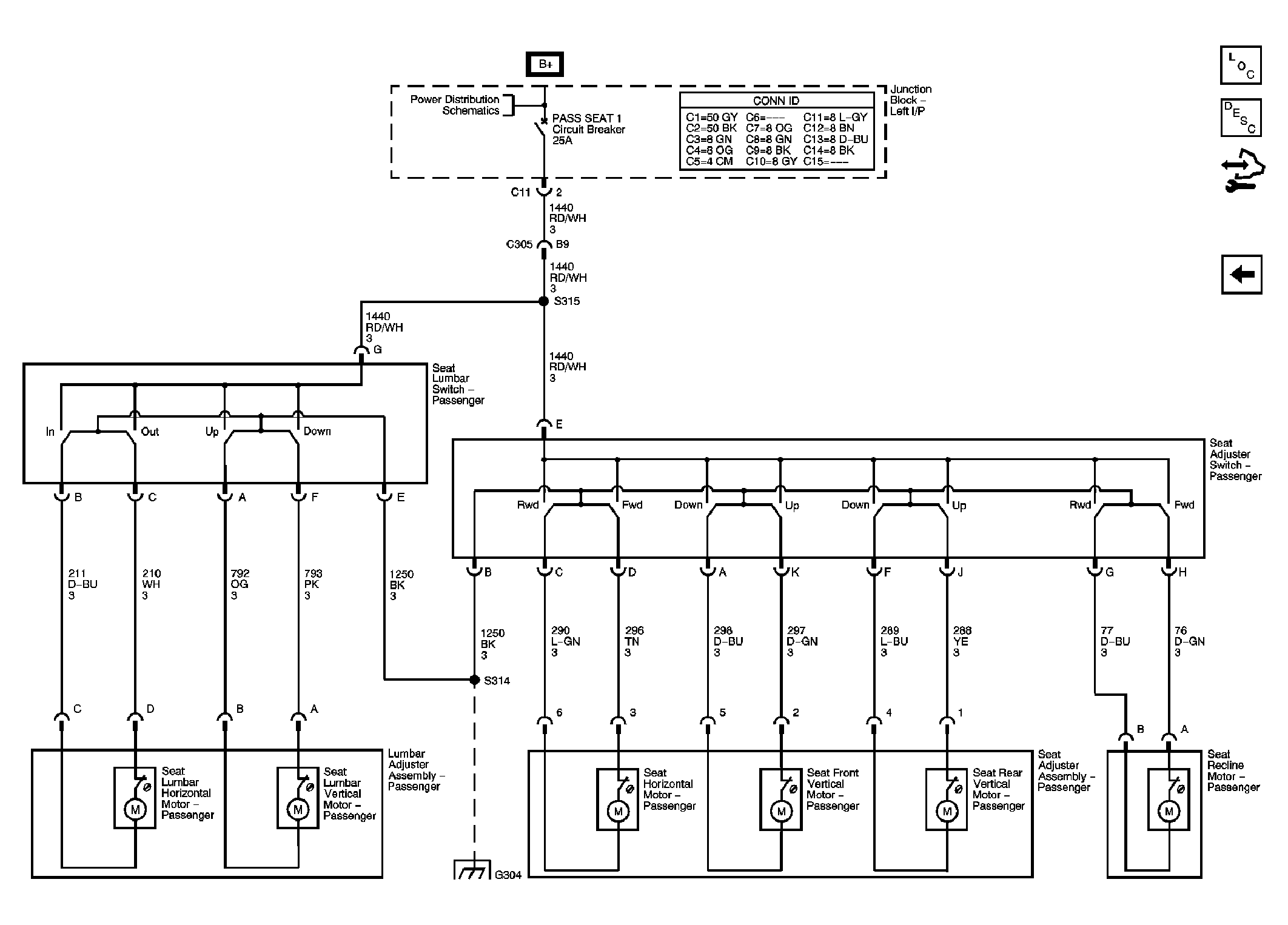

Fig 2: AN3 Schematic

GM1703219

Courtesy of GENERAL MOTORS CORP.
