Driver Seat Schematics

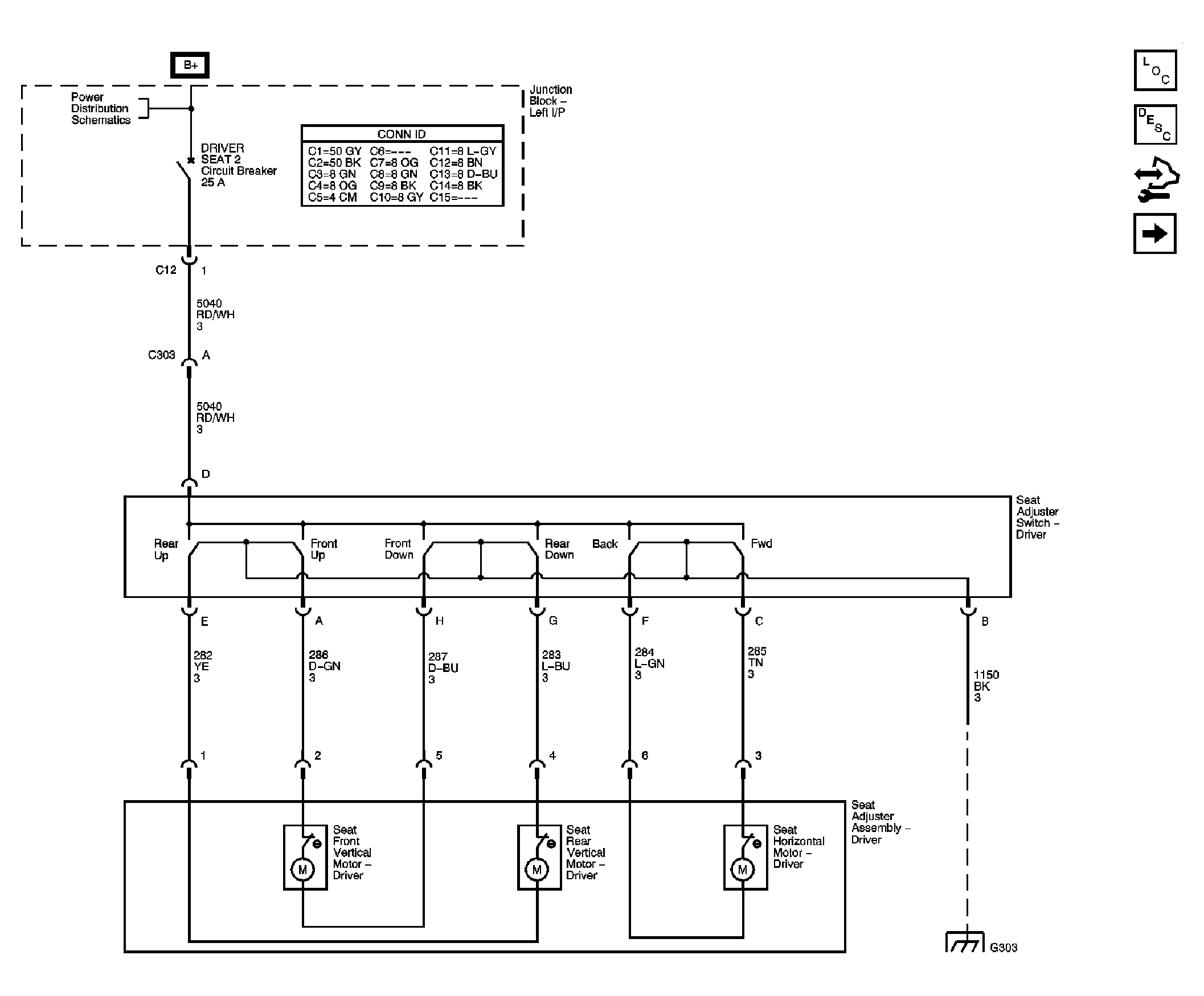

Fig 1: 6-Way Power Schematic
GM1702070Courtesy of GENERAL MOTORS CORP.

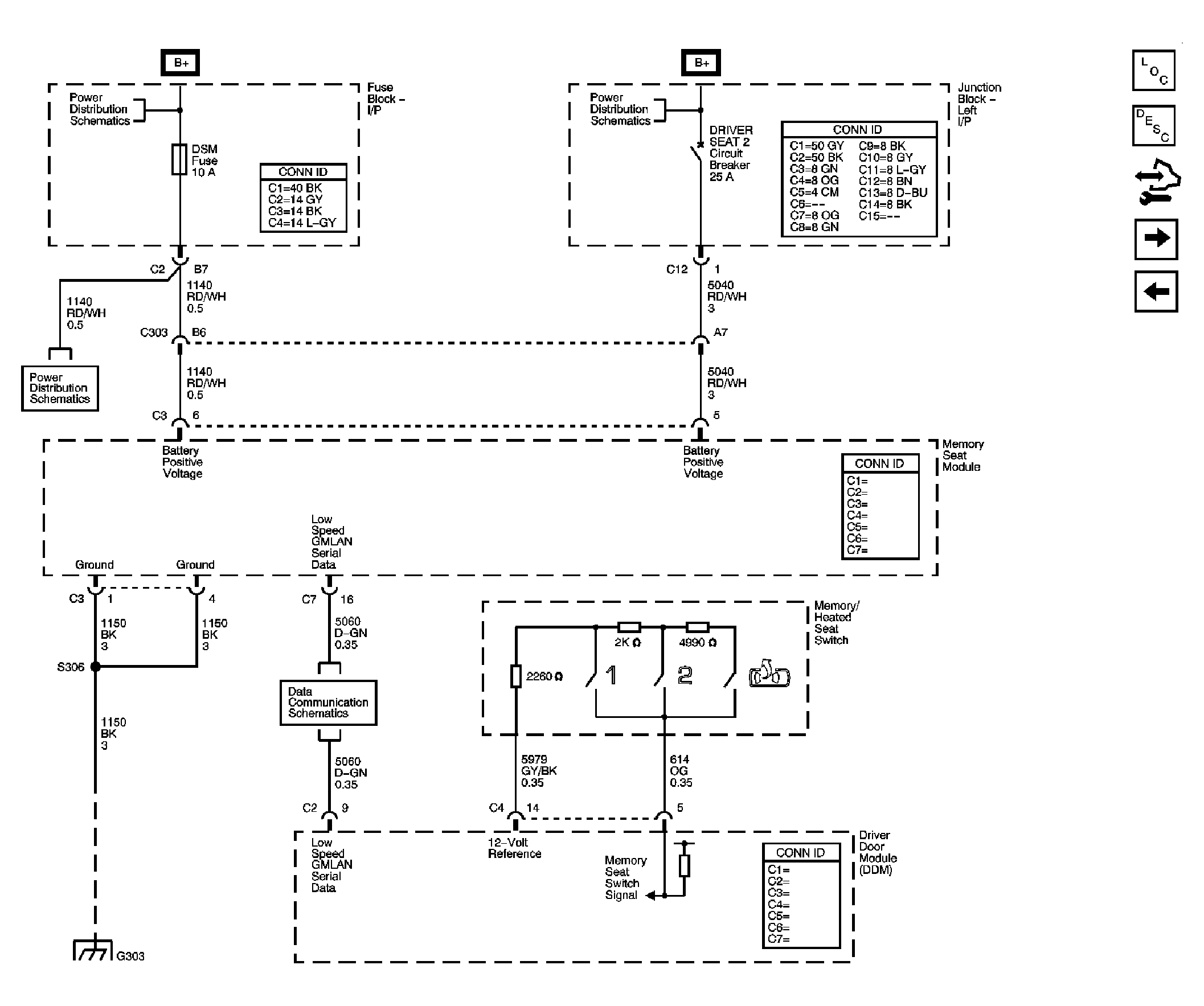

Fig 2: Module Power, Ground, Serial Data, and Memory Switches - AN3 Schematic
GM1702864Courtesy of GENERAL MOTORS CORP.
Fig 3: Seat Adjuster Switches - AN3 Schematic
GM1702865Courtesy of GENERAL MOTORS CORP.

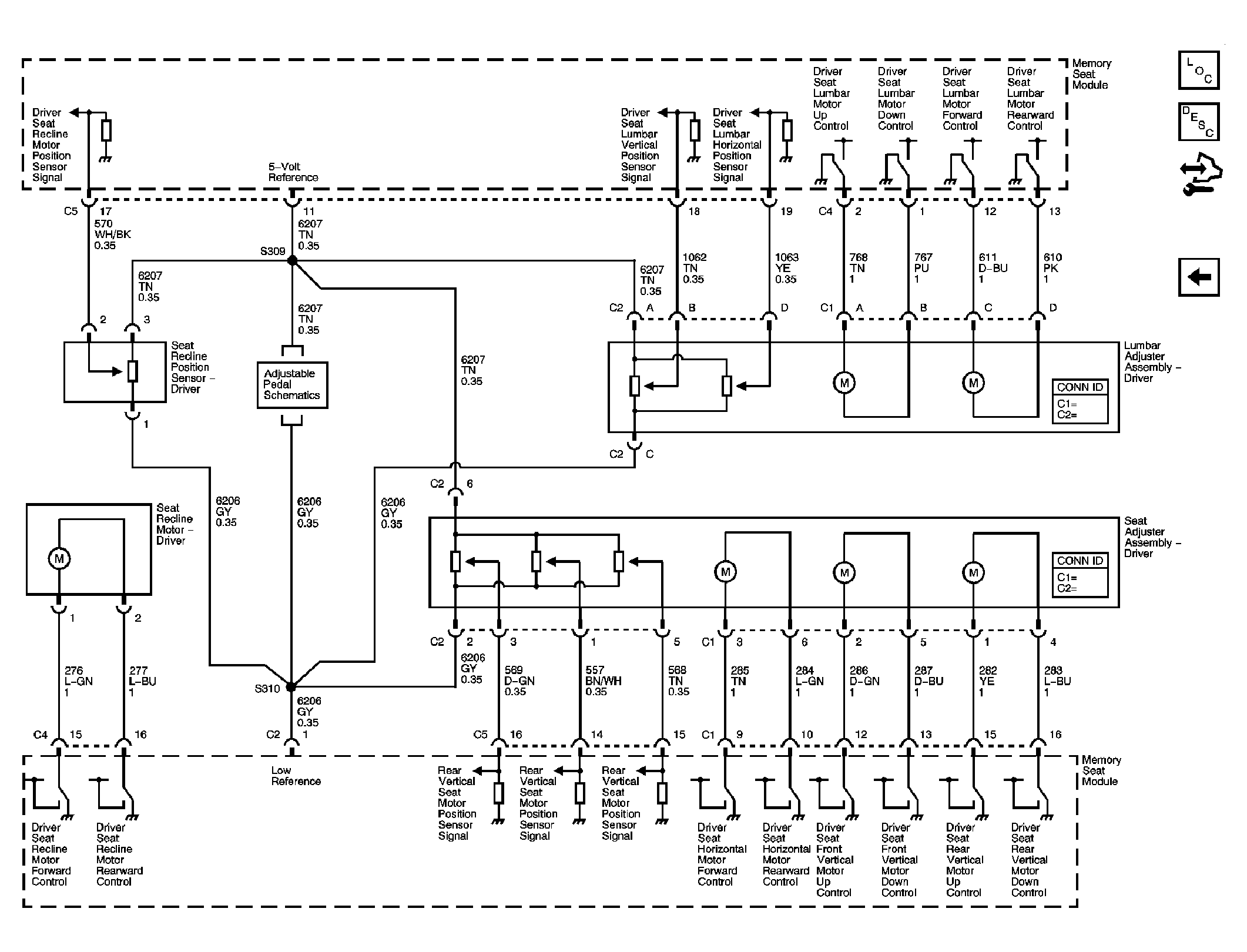

Fig 4: Motors and Position Sensors - AN3 Schematic
GM1702866Courtesy of GENERAL MOTORS CORP.
