Rear Side Door Sill Plate Replacement (Extended Wheelbase)

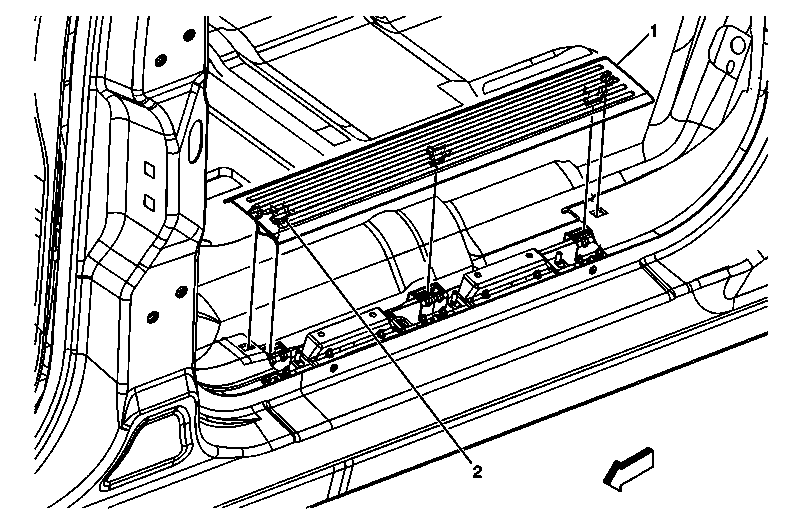

Fig 1: View Of Rear Side Door Trim Plate Assembly & Retainers

Courtesy of GENERAL MOTORS CORP.

Rear Side Door Sill Plate Replacement (Extended Wheelbase)

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1	Rear Side Door Sill Trim Plate Assembly
2	Rear Side Door Trim Plate Retainer (Qty: 5)
