Lift Gate Schematics

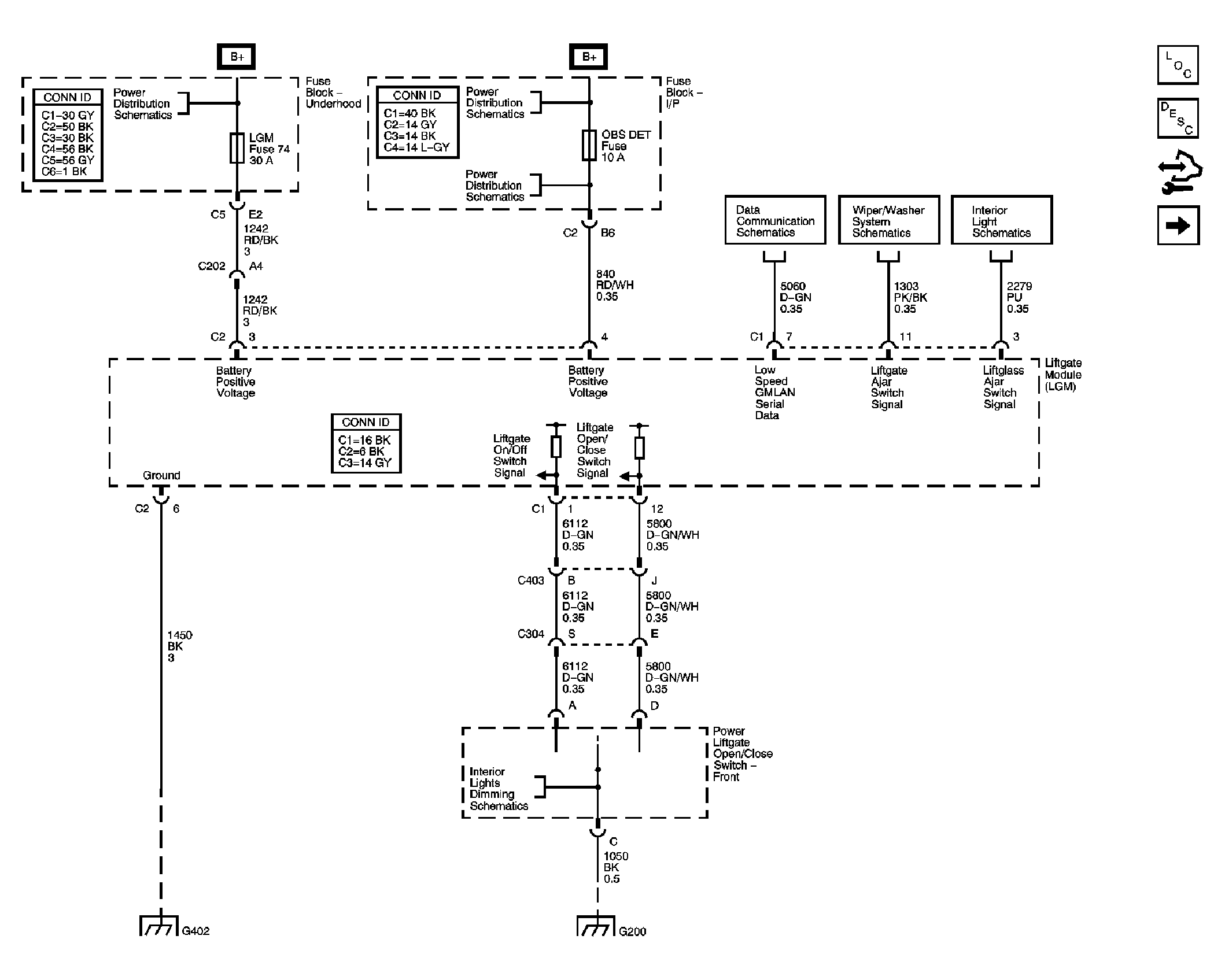

Fig 1: Module Power, Ground, Serial Data, and Front Switch Schematic

GM1700393

Courtesy of GENERAL MOTORS CORP.

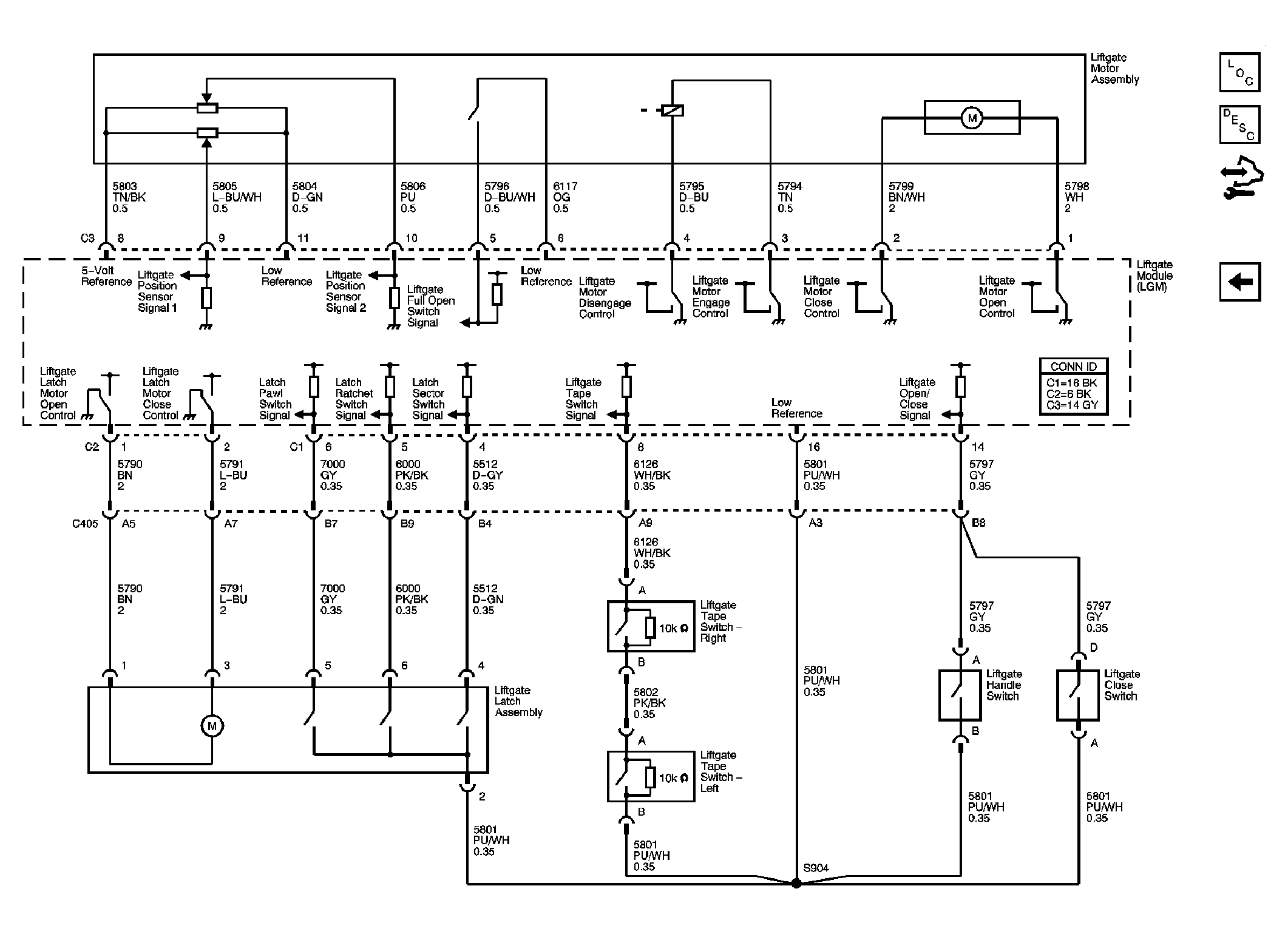

Fig 2: Liftgate Motor Controls Schematic

GM1700394

Courtesy of GENERAL MOTORS CORP.
