Radio Replacement (Cadillac)

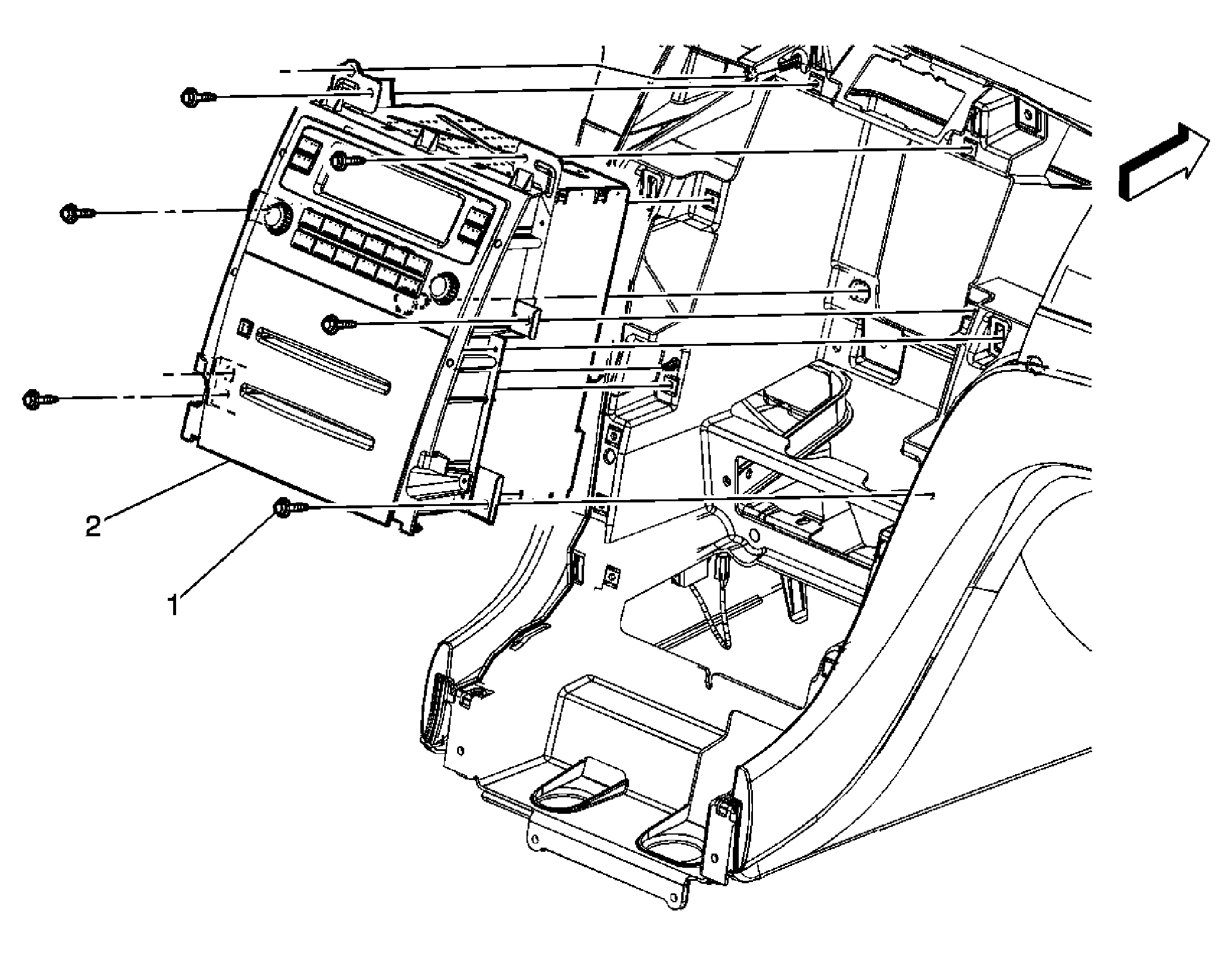

Fig 1: View Of Radio Assembly & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
IMPORTANT: Use a scan tool to retrieve the radio part number before removing the radio from the vehicle. Preliminary Procedure: Remove the instrument panel accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Cadillac) or Instrument Panel Accessory Trim Plate Replacement (Except Cadillac) .
1	Radio Screw (Qty: 6) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Radio Assembly Tip: Disconnect the 4 electrical connectors. Disconnect the antenna cable. Reprogram the radio after replacement. Refer to Control Module References .
