Turn Signal Switch: Diagrams



Antilock Brake System Connector End Views

I/P Multifunction Switch Assembly (X88/Z88)

Transfer Case Shift Control Switch:

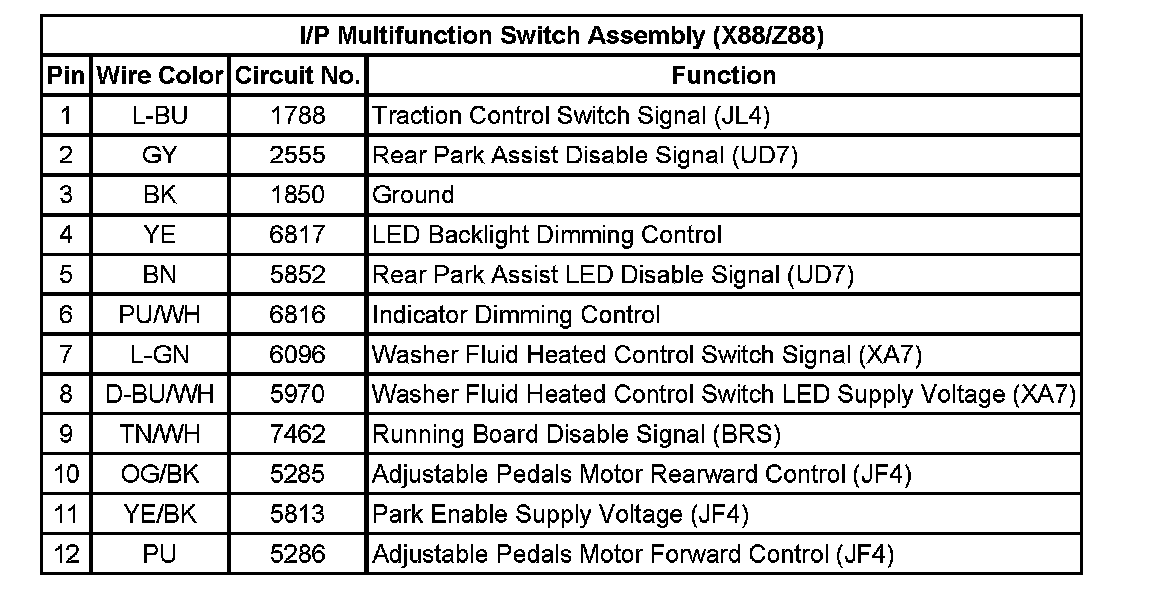

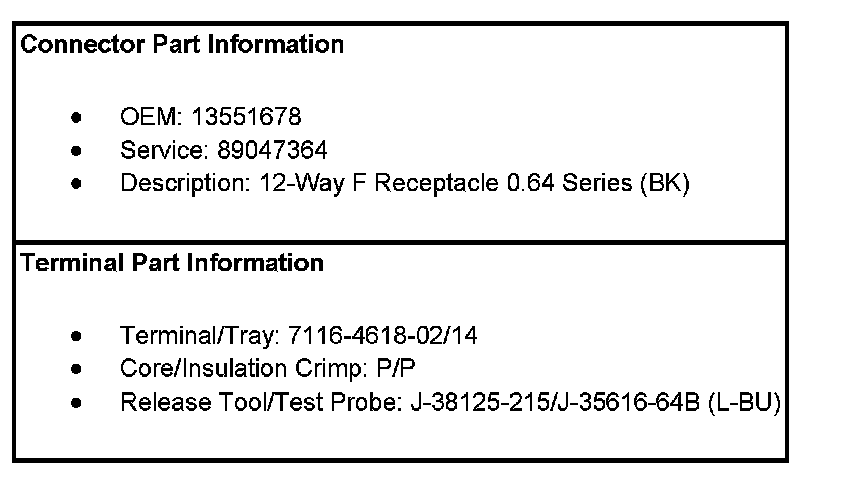

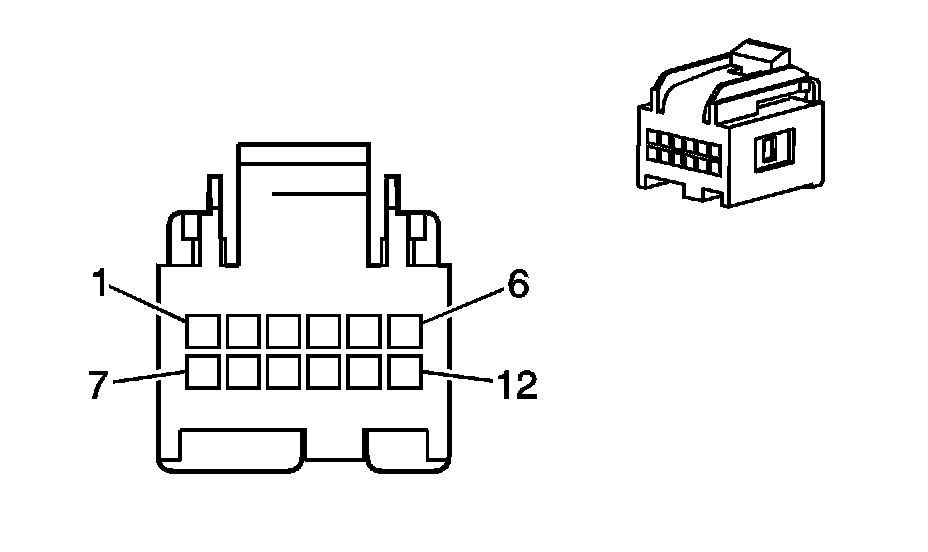

I/P Multifunction Switch Assembly (X88/Z88):
