X700 Body Harness to Left Rear Door Harness (Crew Cab)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
GM1710980Courtesy of GENERAL MOTORS CORP.

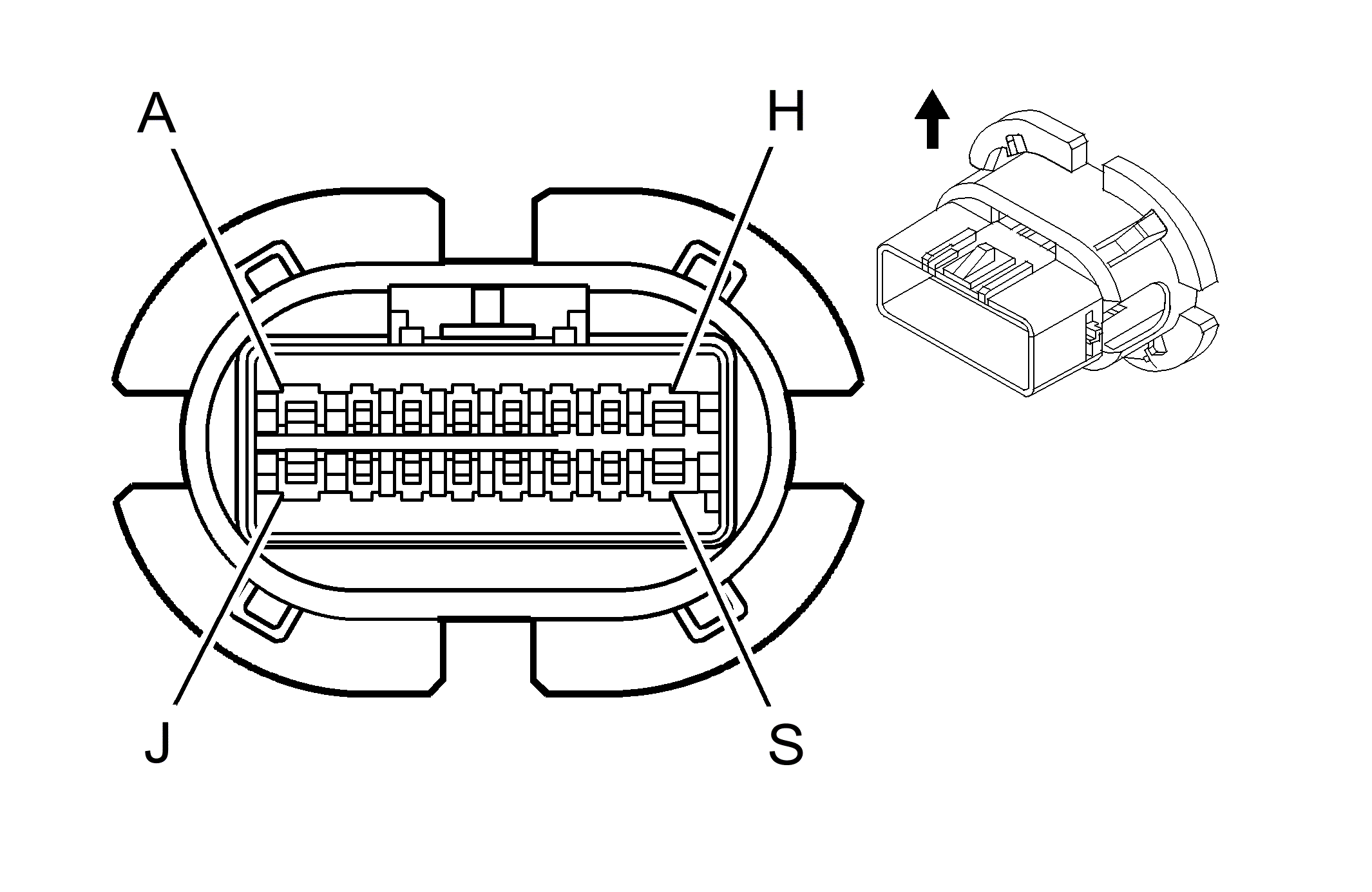

GM1858667Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13539998
  • Service: See Catalog
  • Description: 16-Way F GT 150, 280 Series (BK)
 Connector Part Information
  • OEM: 13579161
  • Service: See Catalog
  • Description: 16-Way M GT 150 280 Series (WH)
Terminal Part Information
  • Pins: A, H
  • Terminal/Tray: 15304713/19
  • Core/Insulation Crimp: F/D
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: B-G, M, R
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
  • Pins: K-P
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: C/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
 Terminal Part Information
  • Pins: A, H
  • Terminal/Tray: 15304724/8
  • Core/Insulation Crimp: A/D
  • Release Tool/Test Probe: 15315247/J-35616-5 (PU)
  • Pins: B-F, M
  • Terminal/Tray: 15304702/19
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-3 (GY)
  • Pins: G, R
  • Terminal/Tray: 15304702/19
  • Core/Insulation Crimp: E/4
  • Release Tool/Test Probe: 15315247/J-35616-3 (GY)
  • Pins: K, L (UQA)
  • Pins: N-P
  • Terminal/Tray: 15304702/19
  • Core/Insulation Crimp: 2/4
  • Release Tool/Test Probe: 15315247/J-35616-3 (GY)
  • Pins: K, L (UQ3/UQ5)
  • Terminal/Tray: 15304702/19
  • Core/Insulation Crimp: E/4
  • Release Tool/Test Probe: 15315247/J-35616-3 (GY)
X700 Body Harness to Left Rear Door Harness (Crew Cab)

Pin Wire Circuit Function Pin Wire Circuit Function
A 32 BK 1150 Ground A 3 BK 1150 Ground
B 0.35 PU 169 Power Window Master Switch Left Rear Down Signal B 0.35 PU 169 Power Window Master Switch Left Rear Down Signal
C 0.35 D-BU 1307 Power Window Master Switch Lockout Signal C 0.35 D-BU 1307 Power Window Master Switch Lockout Signal
D 0.35 D-GN 168 Power Window Master Switch Left Rear Up Signal D 0.35 D-GN 168 Power Window Master Switch Left Rear Up Signal
E 0.5 BN/WH 230 Instrument Panel Lamps Dimming Control (A31) E 0.5 BN/WH 230 Instrument Panel Lamps Dimming Control (A31 with UQA)
F 0.35 L-BU/BK 747 Left Rear Door Ajar Switch Signal F 0.35 L-BU/BK 747 Left Rear Door Ajar Switch Signal
G 0.5 L-GN/BK 6623 Low Reference (ASF) G 0.5 L-GN/BK 6623 Low Reference (ASF)
H 3 RD/WH 1240 Battery Positive Voltage H 3 RD/WH 1240 Battery Positive Voltage
J - - Not Used J - - Not Used
K 0.8 YE 116 Left Rear Speaker Output (-) K 0.8 YE 116 Left Rear Speaker Output (-) (UQA)
0.5 YE 116 Left Rear Speaker Output (-) (UQ3/UQ5)
L 0.8 BN 199 Left Rear Speaker Output (+) L 0.8 BN 199 Left Rear Speaker Output (+) (UQA)
0.5 BN 199 Left Rear Speaker Output (+) (UQ3/UQ5)
M 0.5 BK 1150 Ground M 0.35 BK 1150 Ground
N 0.8 TN 294 Door Lock Actuator Unlock Control N 0.8 TN 294 Door Lock Actuator Unlock Control
P 0.8 GY 295 Door Lock Actuator Lock Control P 0.8 GY 295 Door Lock Actuator Lock Control
R 0.5 L-BU 6622 Left Rear Side Impact Sensing Module Signal (ASF) R 0.5 L-BU 6622 Left Rear Side Impact Sensing Module Signal (ASF)
S - - Not Used S - - Not Used
