X414 Chassis Harness to Camper Harness (UY2/8S3)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
GM2056936Courtesy of GENERAL MOTORS CORP.

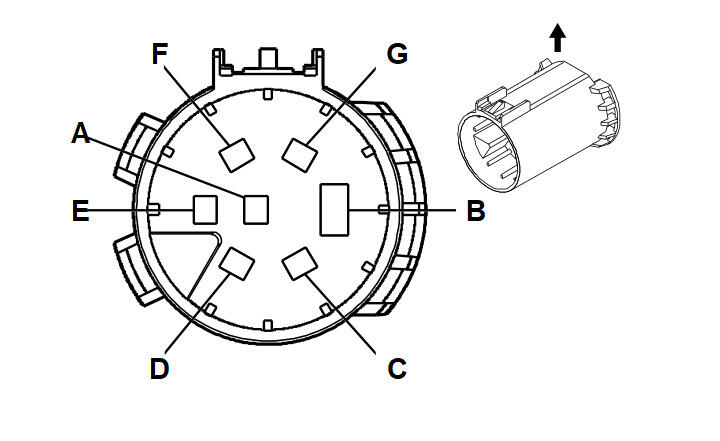

GM366087Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13626146
  • Service: See Catalog
  • Description: 7-Way F Metri-Pack 280 Series (BK)
 Connector Part Information
  • OEM: 15317327
  • Service: 15306117
  • Description: 7-Way M Metri-Pack 280 Series (BK)
Terminal Part Information
  • Pins: A, D, F, G
  • Terminal/Tray: 12110847/4
  • Core/Insulation Crimp: C/5
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: B
  • Terminal/Tray: 15305232/23
  • Core/Insulation Crimp: B/3
  • Release Tool/Test Probe: 12094430/J-35616-42 (RD)
  • Pins: C, E
  • Terminal/Tray: 12110845/4
  • Core/Insulation Crimp: F/5
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
 Terminal Part Information
  • Pins: A, D, F, G
  • Terminal/Tray: 12048159/2
  • Core/Insulation Crimp: 2/5
  • Release Tool/Test Probe: 12094430/J-35616-5 (PU)
  • Pins: B
  • Terminal/Tray: 12064736/3
  • Core/Insulation Crimp: B/3
  • Release Tool/Test Probe: 12094430/J-35616-43 (RD)
  • Pins: C, E
  • Terminal/Tray: 12129497/1
  • Core/Insulation Crimp: F/5
  • Release Tool/Test Probe: 12094430/J-35616-5 (PU)
X414 Chassis Harness to Camper Harness (UY2/8S3)

Pin Wire Circuit Function Pin Wire Circuit Function
A 1.0 L-GN 1624 Trailer Backup Lamps Supply Voltage A 1.0 L-GN 1624 Trailer Backup Lamps Supply Voltage
B 5.0 WH 22 Ground B 5.0 WH 22 Ground
C 3.0 D-BU 47 Trailer Auxiliary Supply Voltage C 3.0 D-BU 47 Trailer Auxiliary Supply Voltage
D 0.8 D-GN 1619 Trailer Right Rear Turn/Stop Lamp Supply Voltage D 0.8 D-GN 1619 Trailer Right Rear Turn/Stop Lamp Supply Voltage
E 3.0 RD/BK 742 Battery Positive Voltage E 3.0 RD/BK 742 Battery Positive Voltage
F 1.0 BN 2109 Trailer Park Lamps Supply Voltage F 1.0 BN 2109 Trailer Park Lamps Supply Voltage
G 0.8 YE 1618 Trailer Left Rear Turn/Stop Lamp Supply Voltage G 0.8 YE 1618 Trailer Left Rear Turn/Stop Lamp Supply Voltage
