Installation Procedure

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the J 21366  onto the transmission bell housing to retain the torque converter.
  2. Support the transmission with a transmission jack.
  3. Raise the transmission into place while simultaneously installing the fluid indicator tube.
  4. Remove the J 21366  from the transmission.
  5. Slide the transmission straight onto the locating pins while lining up the marks on the flywheel and the torque converter.

    The torque converter must rotate freely by hand.

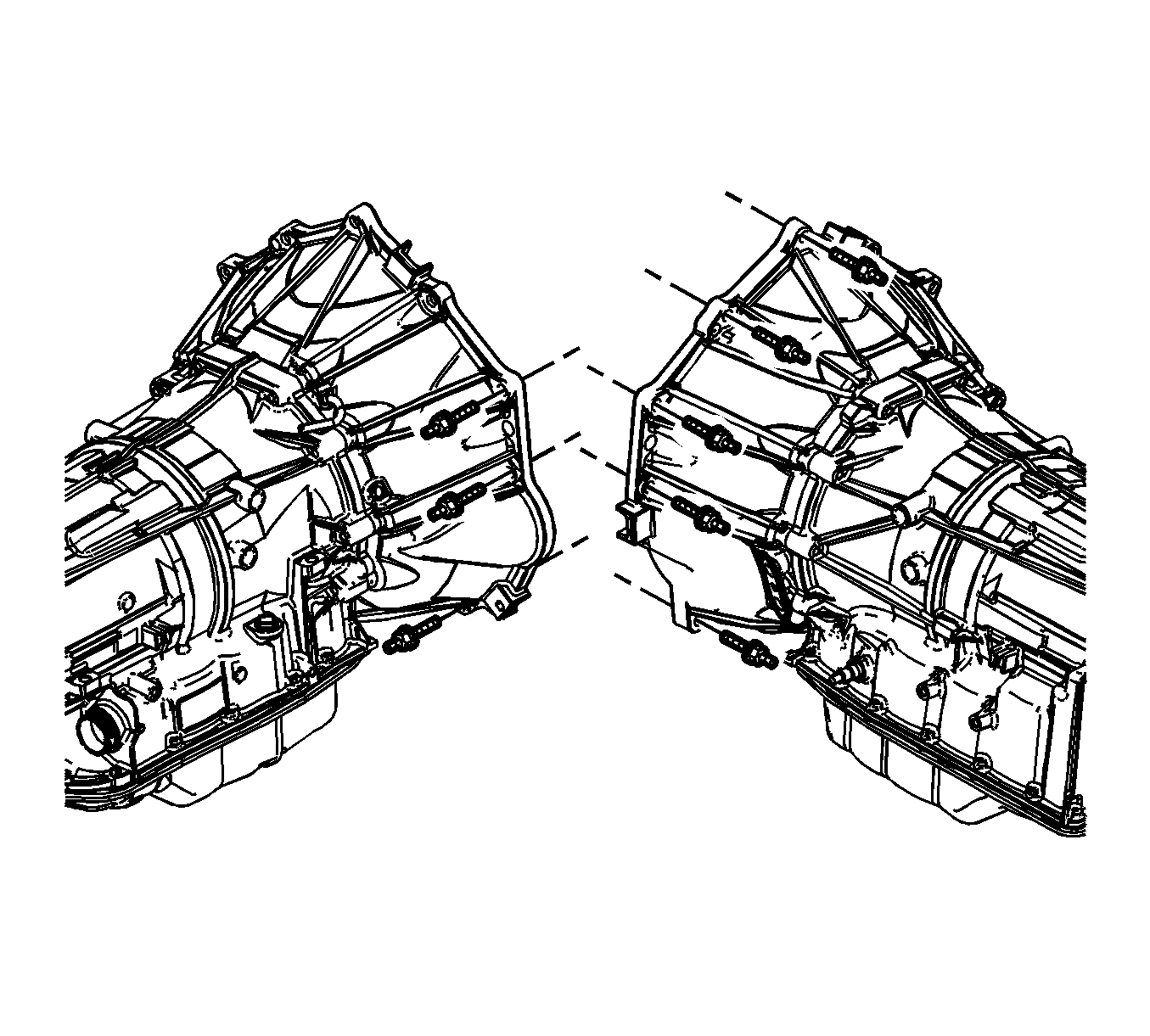

    6. Fig 1: View Of Transmission Bolts
    GM1708536Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  6. Install the 8 bolts securing the transmission to the engine.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

    7. Fig 2: View Of Transmission Vent Hose
    GM1705102Courtesy of GENERAL MOTORS CORP.
  7. Connect the transmission vent hose.
  8. Install the wire harness to the transmission.
  9. Connect the transmission electrical connector to the transmission.
    10. Fig 3: View Of Range Selector Cable & Cable Bracket Retainer
    GM1707190Courtesy of GENERAL MOTORS CORP.
  10. Install the range selector cable (2) to the range selector cable bracket and the range selector lever ball stud.
  11. Install the range selector cable retaining clip (1) to the transmission range selector cable.

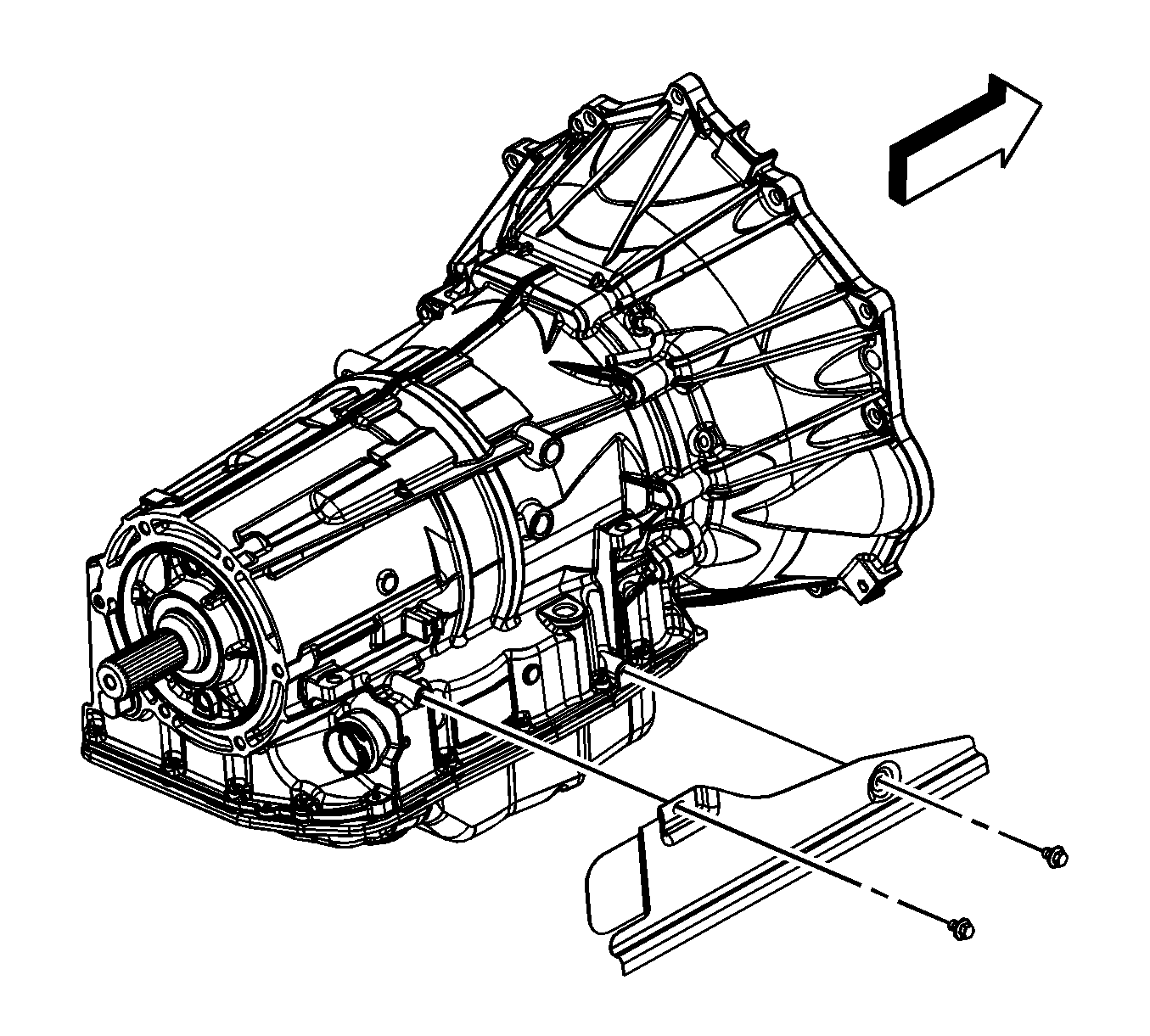

    12. Fig 4: View Of Transmission Heat Shield & Bolts
    GM1708338Courtesy of GENERAL MOTORS CORP.
  12. Install the transmission heat shield.
  13. Install the 2 bolts securing the heat shield to the transmission.

    Tighten:  Tighten the bolts to 17 N.m (13 lb ft).

  14. Install the transfer case, if equipped. Refer to the appropriate procedure:
    15. Fig 5: View Of Transfer Case Vent Tube Hose
    GM1708319Courtesy of GENERAL MOTORS CORP.
  15. Connect the vent hose and electrical connectors to the transfer case, if equipped.
    16. Fig 6: View Of Flywheel To Torque Converter Bolts
    GM1708265Courtesy of GENERAL MOTORS CORP.
  16. If reusing the torque converter bolts, clean the bolt threads and apply LOCTITE 242, GM P/N 12345382 (Canadian P/N 10953489), or equivalent to the threads prior to installation.
  17. Install the flywheel to torque converter bolts.

    Tighten:  Tighten the bolts to 63 N.m (46 lb ft).

    18. Fig 7: View Of Right Flywheel Inspection Cover
    GM1705430Courtesy of GENERAL MOTORS CORP.
  18. Install the right flywheel inspection cover and bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

  19. Install the starter motor. Refer to Starter Motor Replacement (4.3L) or Starter Motor Replacement (4.8L, 5.3L, 6.0L, and 6.2L) or Starter Motor Replacement (6.6L) .
    20. Fig 8: View Of Left Flywheel Inspection Cover
    GM1708215Courtesy of GENERAL MOTORS CORP.
  20. Install the left flywheel inspection cover and bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

    21. Fig 9: View Of Torque Converter Access Plug
    GM408374Courtesy of GENERAL MOTORS CORP.
  21. Install the torque converter access plug.
  22. If the vehicle is equipped with a transfer case, install the front propeller shaft. Refer to Front Propeller Shaft Replacement .
  23. Install the catalytic converter pipe. Refer to Catalytic Converter Replacement (4.3L) or Catalytic Converter Replacement (4.8L, 5.3L, 6.0L, 6.2L) or Catalytic Converter Replacement (6.6L) .
  24. Install the transmission mount. Refer to Transmission Mount Replacement (2WD) or Transmission Mount Replacement (4WD) .
  25. Install the transmission crossmember. Refer to Transmission Support Crossmember Replacement (2WD 1500/2500) or Transmission Support Crossmember Replacement (2WD 2500 HD/3500) or Transmission Support Crossmember Replacement (4WD 1500/2500) or Transmission Support Crossmember Replacement (4WD 2500 HD/3500) .
  26. Remove the transmission jack.
  27. Install the rear propeller shaft. Refer to One-Piece Propeller Shaft Replacement or Two-Piece Propeller Shaft Replacement .

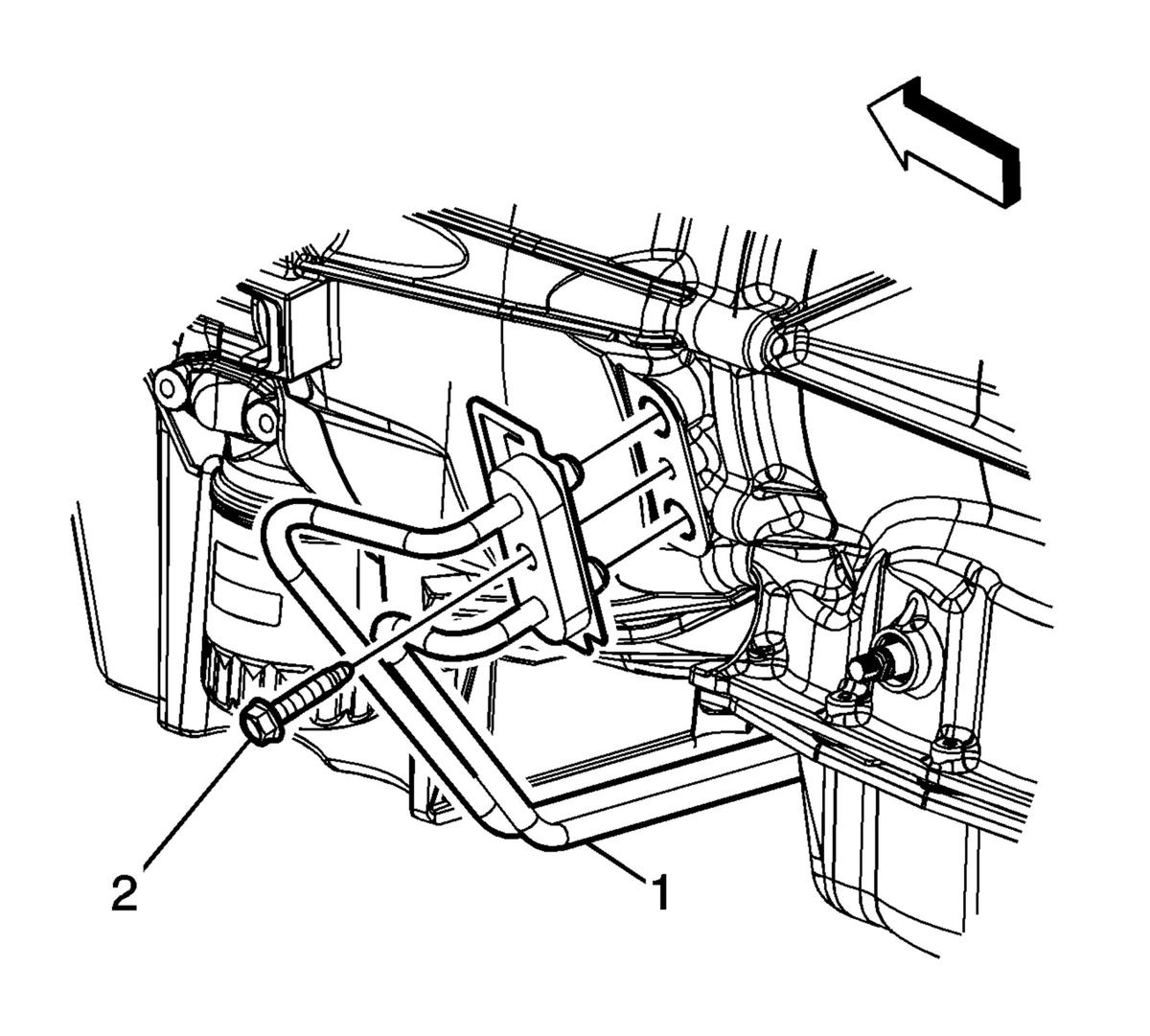

    28. Fig 10: View Of Oil Cooling Lines & Bolt
    GM1705099Courtesy of GENERAL MOTORS CORP.
  28. Connect the oil cooler lines to the transmission. Refer to Transmission Fluid Cooler Hose/Pipe Replacement
  29. Lower the vehicle.
  30. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (w/Single Battery) or Battery Negative Cable Disconnection and Connection (w/Auxiliary Battery) or Battery Negative Cable Disconnection and Connection (w/Dual Batteries)
  31. Fill the transmission to the proper level. Refer to Fluid Capacity Specifications .
    32. IMPORTANT: It is recommended that transmission adaptive pressure (TAP) information be reset.
    Resetting the TAP values using a scan tool will erase all learned values in all cells. As a result, the engine control module (ECM), powertrain control module (PCM), or transmission control module (TCM) will need to relearn TAP values. Transmission performance may be affected as new TAP values are learned.
  32. Reset the TAP values. Refer to Transmission Adaptive Functions (TCM) .
