Manual Shift Shaft Position Switch Replacement

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

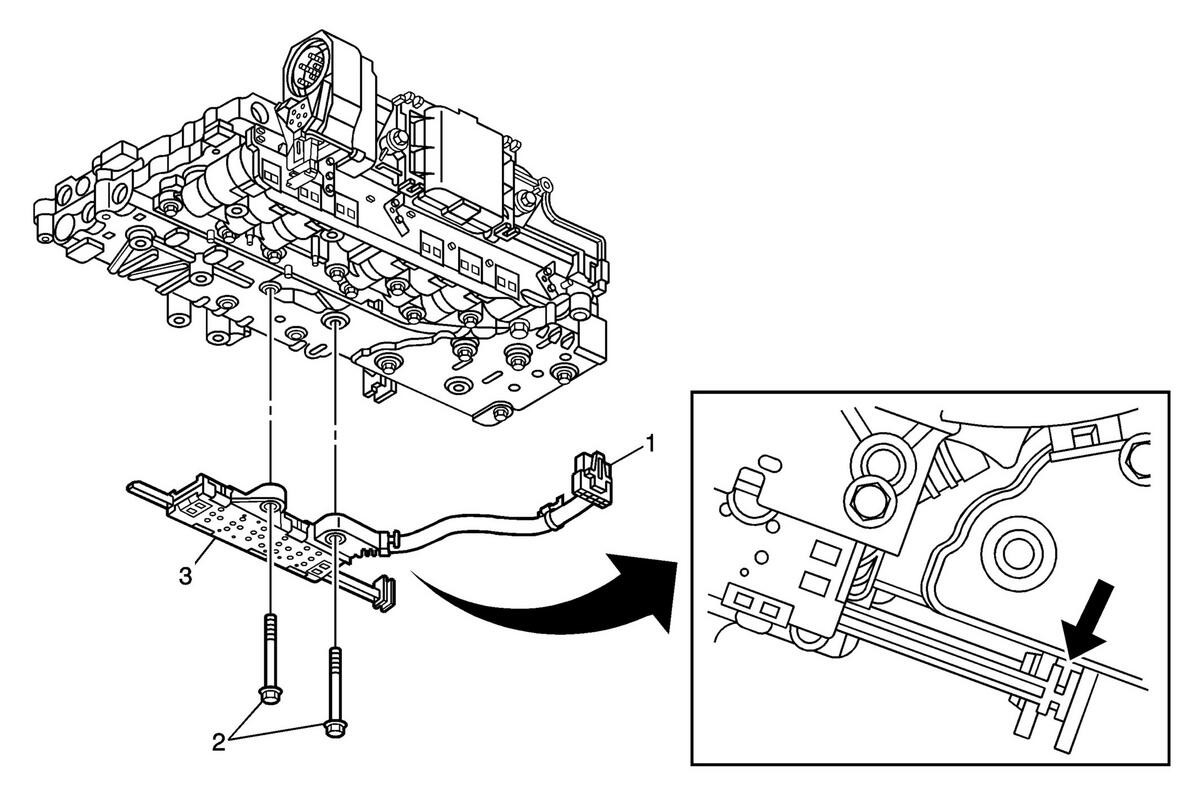

Fig 1: Manual Shift Shaft Position Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the transmission fluid pan and filter. Refer to Automatic Transmission Fluid, Fluid Pan and/or Filter Replacement .
1	Manual Shift Shaft Position Switch Assembly Electrical Connector Tip: Release the connector lock before disconnecting. Engage the connector lock after connecting. The wiring harness clip near the connector does not need to be replaced if broken or missing. The clip is used during manufacturing to keep the wire harness clear during an automated bolt installation process. If the clip is damaged, simply remove and discard.
2	Manual Shift Shaft Position Switch Assembly Bolt NOTE: Refer to Fastener Notice . Tighten: 8 N.m (71 lb in)
3	Manual Shift Shaft Position Switch Assembly Procedure: Align the switch activator slide with the manual valve link.
