Automatic Transmission Range Selector Lever Cable Bracket Replacement

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

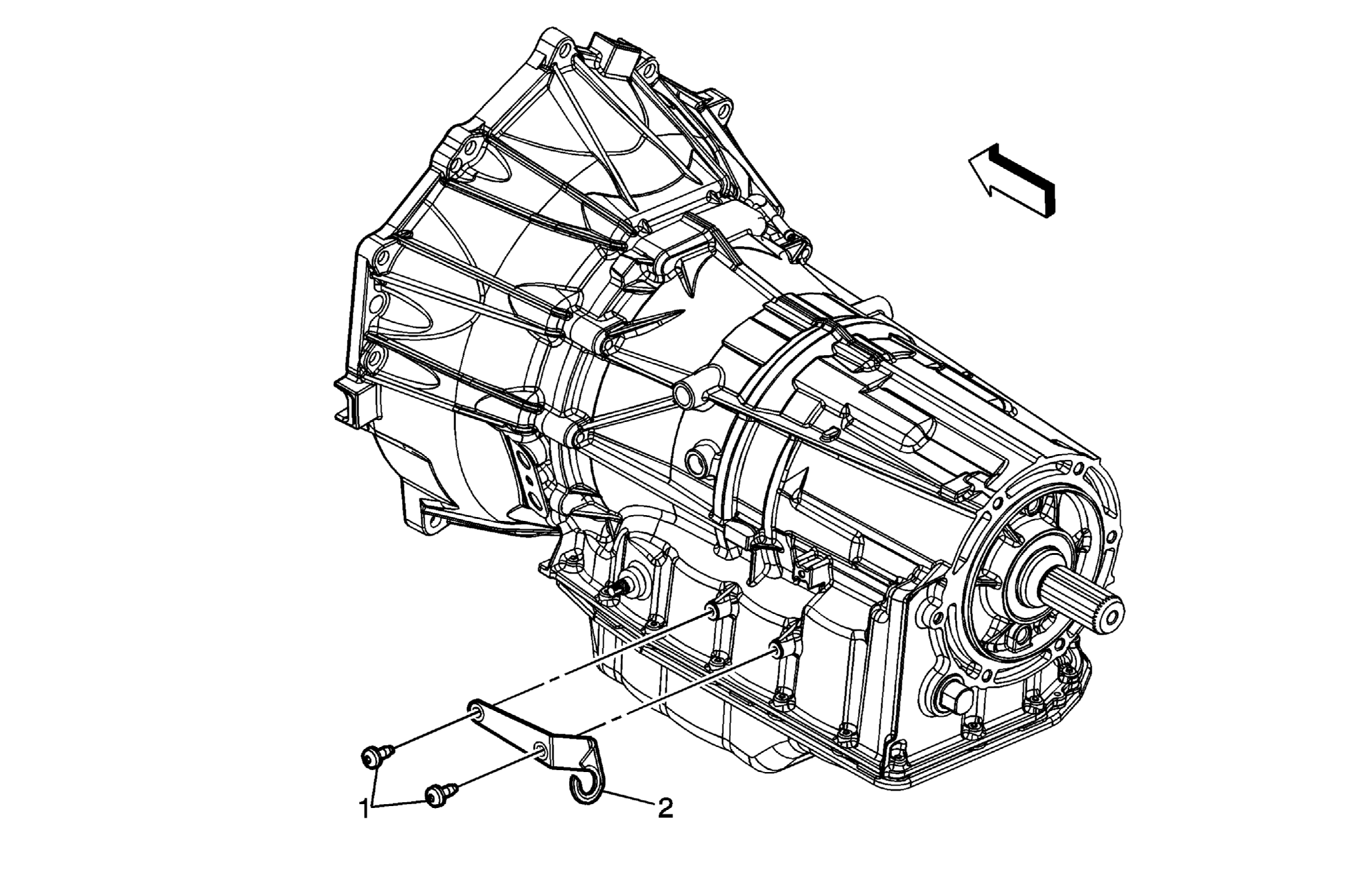

Fig 1: View Of Transmission Range Selector Cable Bracket & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Apply the park brake. Shift the transmission into neutral. Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the transmission range selector cable from the range selector cable bracket. Refer to Automatic Transmission Range Selector Lever Cable Replacement .
1	Transmission Range Selector Cable Bracket Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 25 N.m (18 lb ft)
2	Transmission Range Selector Cable Bracket

Callout

Component Name

Preliminary Procedures

Apply the park brake.
Shift the transmission into neutral.
Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the transmission range selector cable from the range selector cable bracket. Refer to Automatic Transmission Range Selector Lever Cable Replacement .

Transmission Range Selector Cable Bracket Bolt (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 25 N.m (18 lb ft)

Transmission Range Selector Cable Bracket
