Control Valve Body Assembly Removal
WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Control Valve Body Assembly Removal

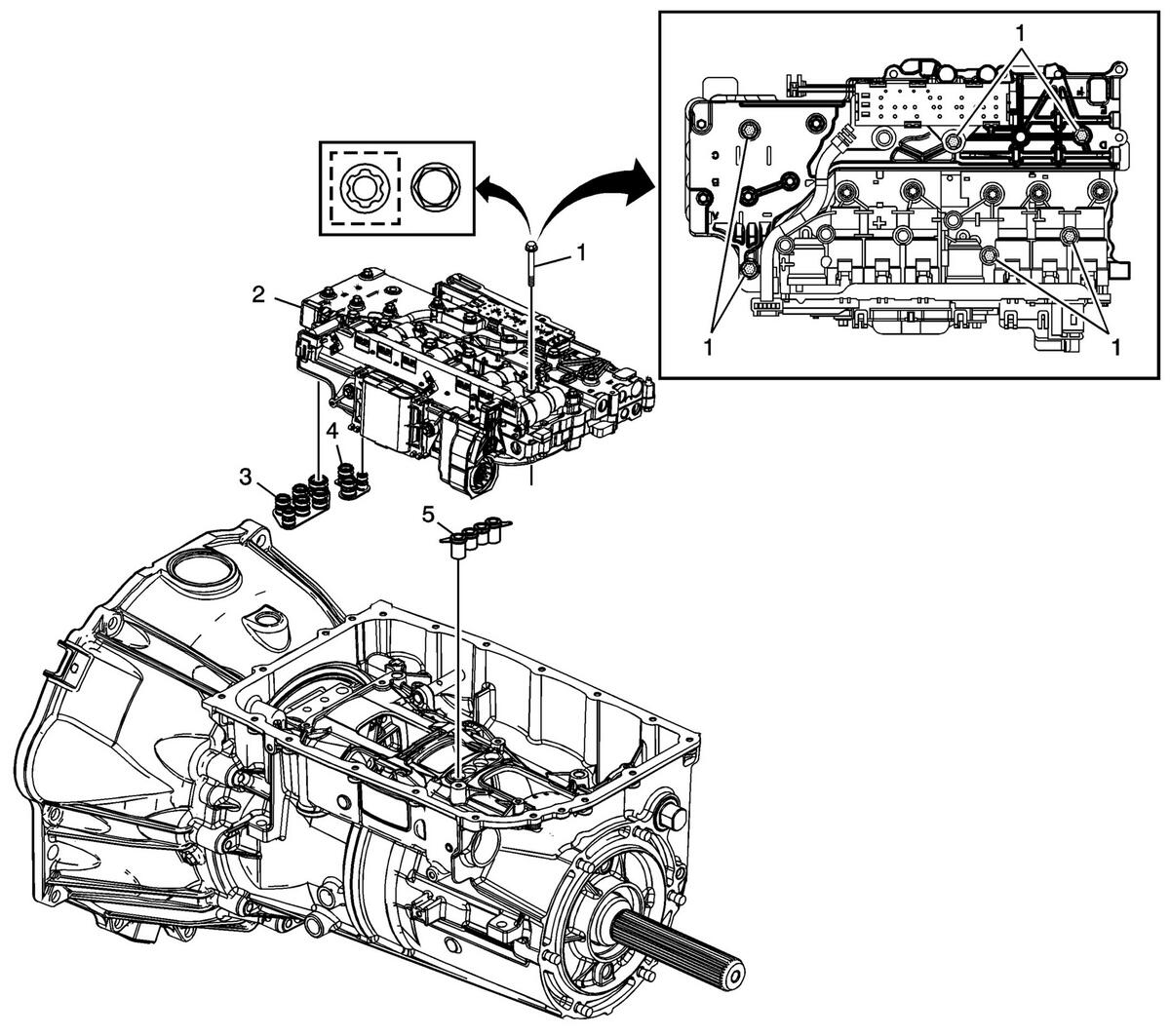

| Callout | Component Name |
|---|---|
| 1 | Bolt M5 x 73 (Qty: 6) Tip: Do not remove all the bolts in the control valve body assembly. Remove only the bolts indicated. Special Tool: DT-48285 Valve Body Torx Plus Socket (if applicable). See Special Tools . |
| 2 | Control Valve Body Assembly
NOTE:
Use care when handling the control valve body assembly. If dropped, damage to the internal components of the control solenoid valve assembly, including the transmission control module (TCM), may result.
|
| 3 | Fluid Pump Seal Assembly
NOTE:
Refer to Seal Reuse Notice
.
|
| 4 | Fluid Pump Seal Assembly
NOTE:
Refer to Seal Reuse Notice
.
|
| 5 | Center Support Fluid Passage Seal Assembly
NOTE:
Refer to Seal Reuse Notice
.
|
