Removal Procedure

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Retainer Securing Cable To Bracket
    GM858985Courtesy of GENERAL MOTORS CORP.
  1. Apply the park brake.
  2. Shift the transmission into neutral.
  3. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle .
  4. Remove the retainer that secures the cable to the bracket.
  5. Depress the tangs and remove the cable from the bracket.

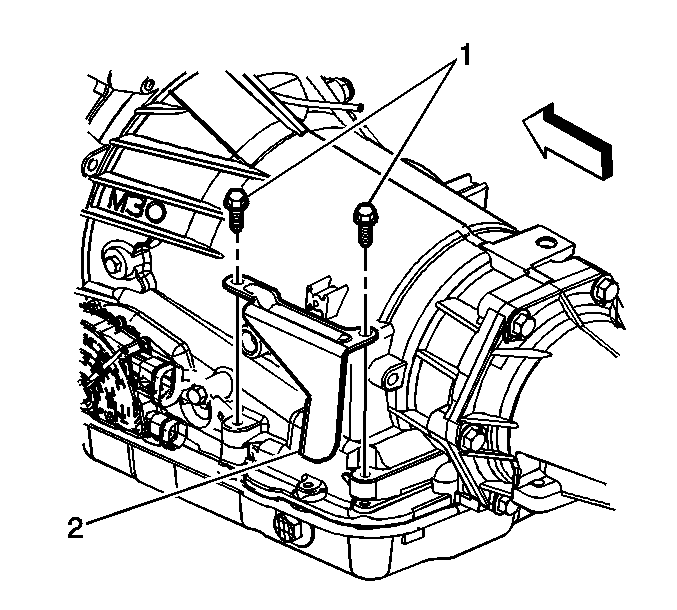

    6. Fig 2: View Of Selector Cable Bracket And Cable
    GM777649Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolts (1) securing the transmission range selector cable bracket (2) to the transmission.
  7. Remove the transmission range selector cable bracket.
