Installation Procedure

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install NEW seals onto the servo pistons and the servo cover.

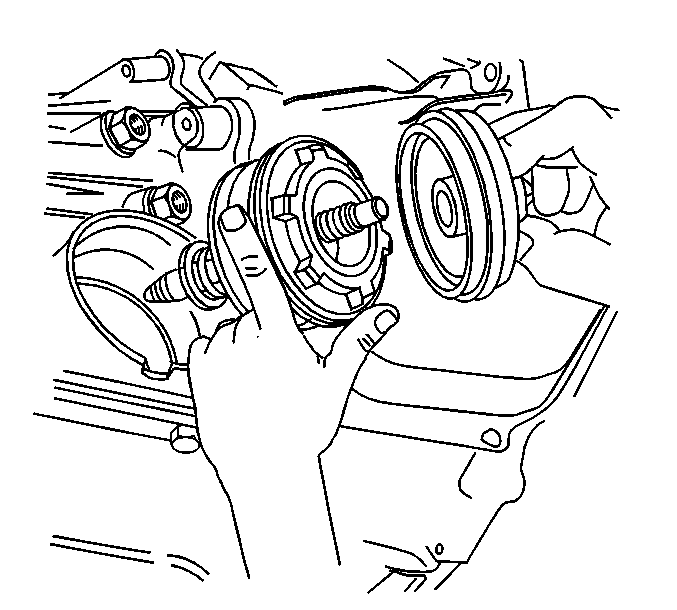

    2. Fig 1: View Of 2-4 Servo
    GM642523Courtesy of GENERAL MOTORS CORP.
  2. Install the 2-4 servo.
  3. Install the J 29714-A  . See Special Tools .
    4. Fig 2: Compressing The Servo Cover Using J 29714-A
    GM14478Courtesy of GENERAL MOTORS CORP.
  4. Tighten the bolt on J 29714-A  in order to compress the servo cover. See Special Tools .
  5. Install the servo cover ring.
  6. Remove the J 29714-A  . See Special Tools .
    7. NOTE: Refer to Fastener Notice .
  7. Install the oil pan bolt.

    Tighten:  Tighten the bolt to 11 N.m (97 lb in).

  8. Raise the transmission.
  9. Install the transmission crossmember. Refer to Transmission Support Crossmember Replacement (2WD 1500/2500) or Transmission Support Crossmember Replacement (2WD 2500 HD/3500) or Transmission Support Crossmember Replacement (4WD 1500/2500) or Transmission Support Crossmember Replacement (4WD 2500 HD/3500) .
  10. Remove the transmission jack.
    11. Fig 3: View Of Transmission Heat Shield Bolts & Shield
    GM394459Courtesy of GENERAL MOTORS CORP.
  11. Install the heat shield and bolts.

    Tighten:  Tighten the bolts to 17 N.m (13 lb ft).

  12. Install the catalytic converter pipe. Refer to Catalytic Converter Replacement (4.3L) or Catalytic Converter Replacement (4.8L, 5.3L, 6.0L, 6.2L) or Catalytic Converter Replacement (6.6L) .
  13. Fill the transmission to the proper level with DEXRON® VI transmission fluid. Refer to Transmission Fluid Check .
    14. IMPORTANT: It is recommended that transmission adaptive pressure (TAP) information be reset.
    Resetting the TAP values using a scan tool will erase all learned values in all cells. As a result, the engine control module (ECM), powertrain control module (PCM) or TCM will need to relearn TAP values. Transmission performance may be affected as new TAP values are learned.
  14. Reset the TAP values. Refer to Transmission Adaptive Functions (TCM) .
