Input Speed Sensor Removal

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

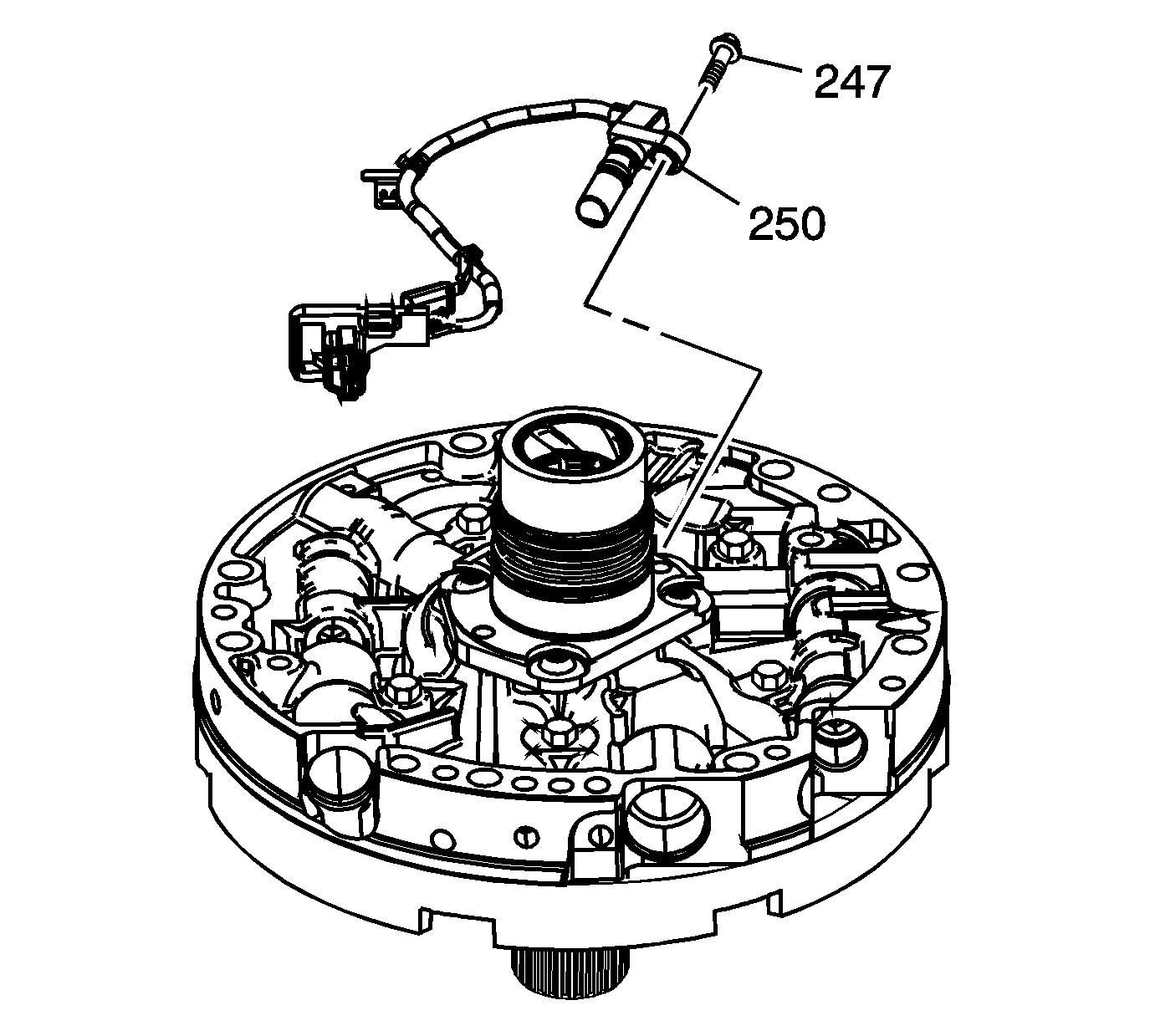

    Fig 1: Identifying Speed Sensor (ISS) Retaining Bolt
    GM1552933Courtesy of GENERAL MOTORS CORP.
  1. Remove the input speed sensor (ISS) retaining bolt (247).
  2. Use a small tipped screwdriver to carefully pry the ISS wiring harness retaining brackets from the pump housing. Being careful not to damage retainer clips.
  3. Remove the ISS assembly (250).
