Case Bushing: Notes

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 8092 Driver Handle
J 34196-B Transmission Bushing Service Set. See Special Tools .

Removal Procedure

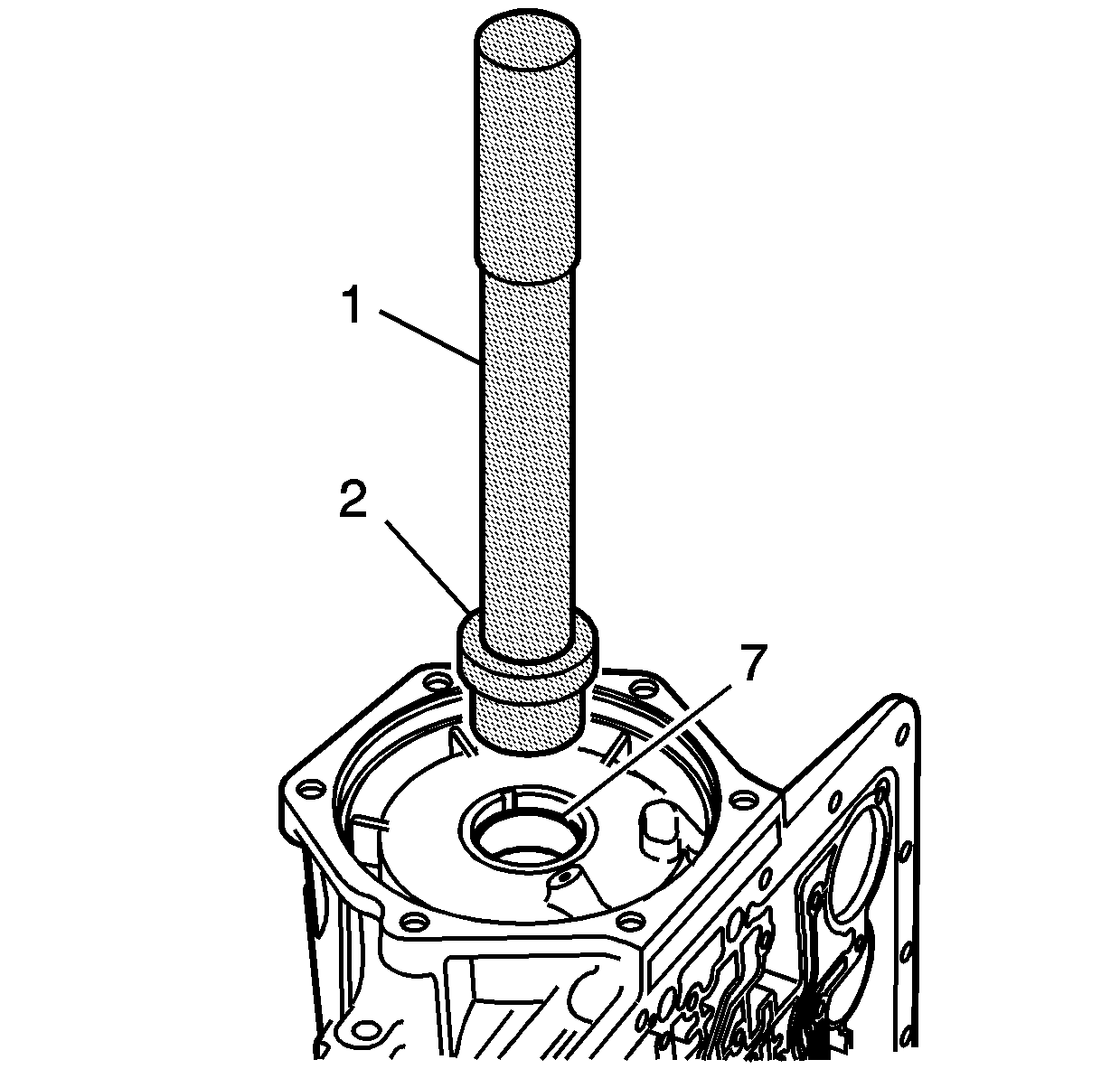

Fig 1: View Of Case Bushing

Courtesy of GENERAL MOTORS CORP.

Remove the case bushing (7) using J 8092 (1) and J 34196-10 (2) which is part of kit J 34196-B . See Special Tools .
