2-4 Band, Input Clutches, Input Gear Set Removal

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

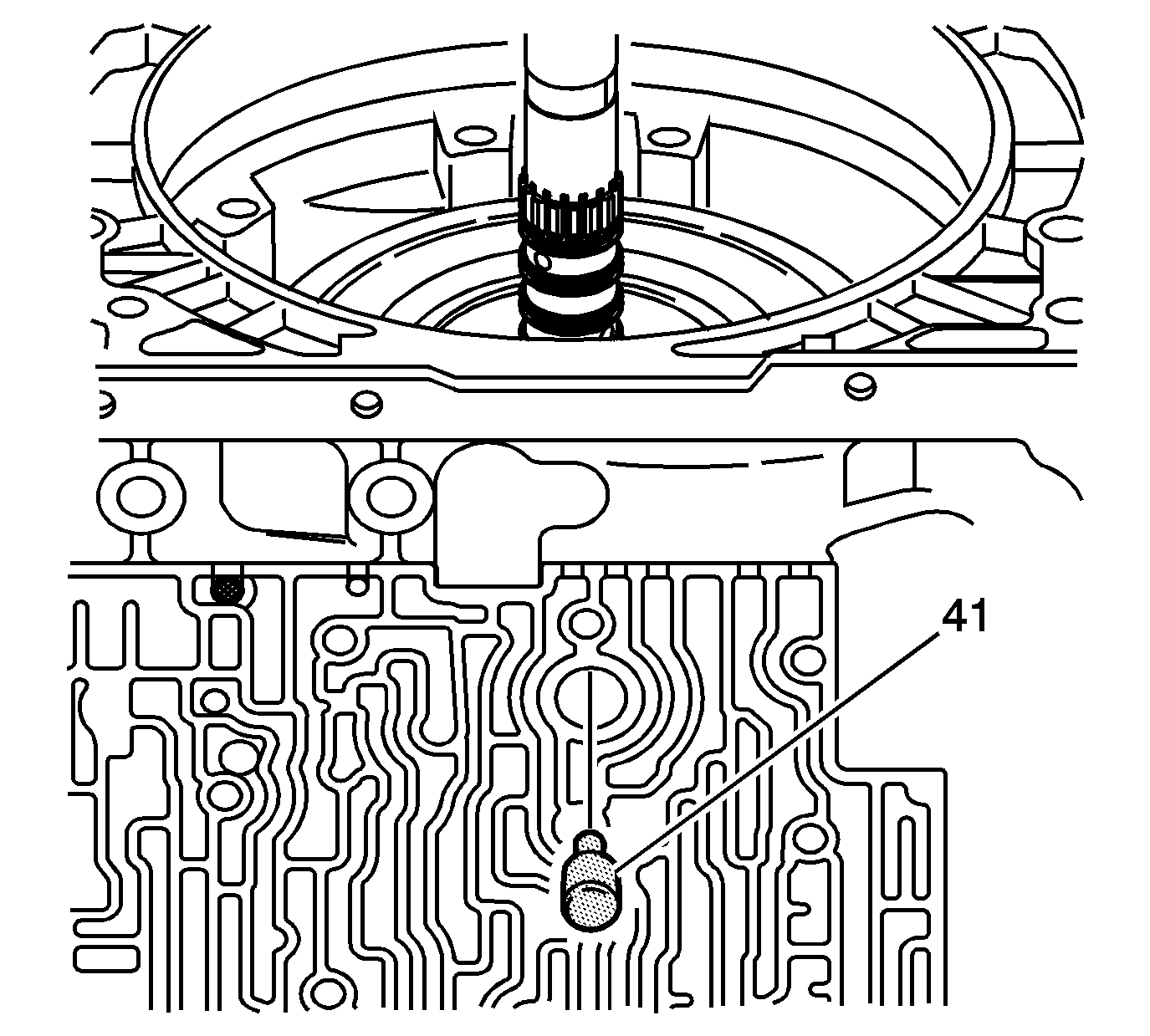

    Fig 1: Identifying Band Anchor Pin
    GM1552920Courtesy of GENERAL MOTORS CORP.
  1. Remove the band anchor pin (41).

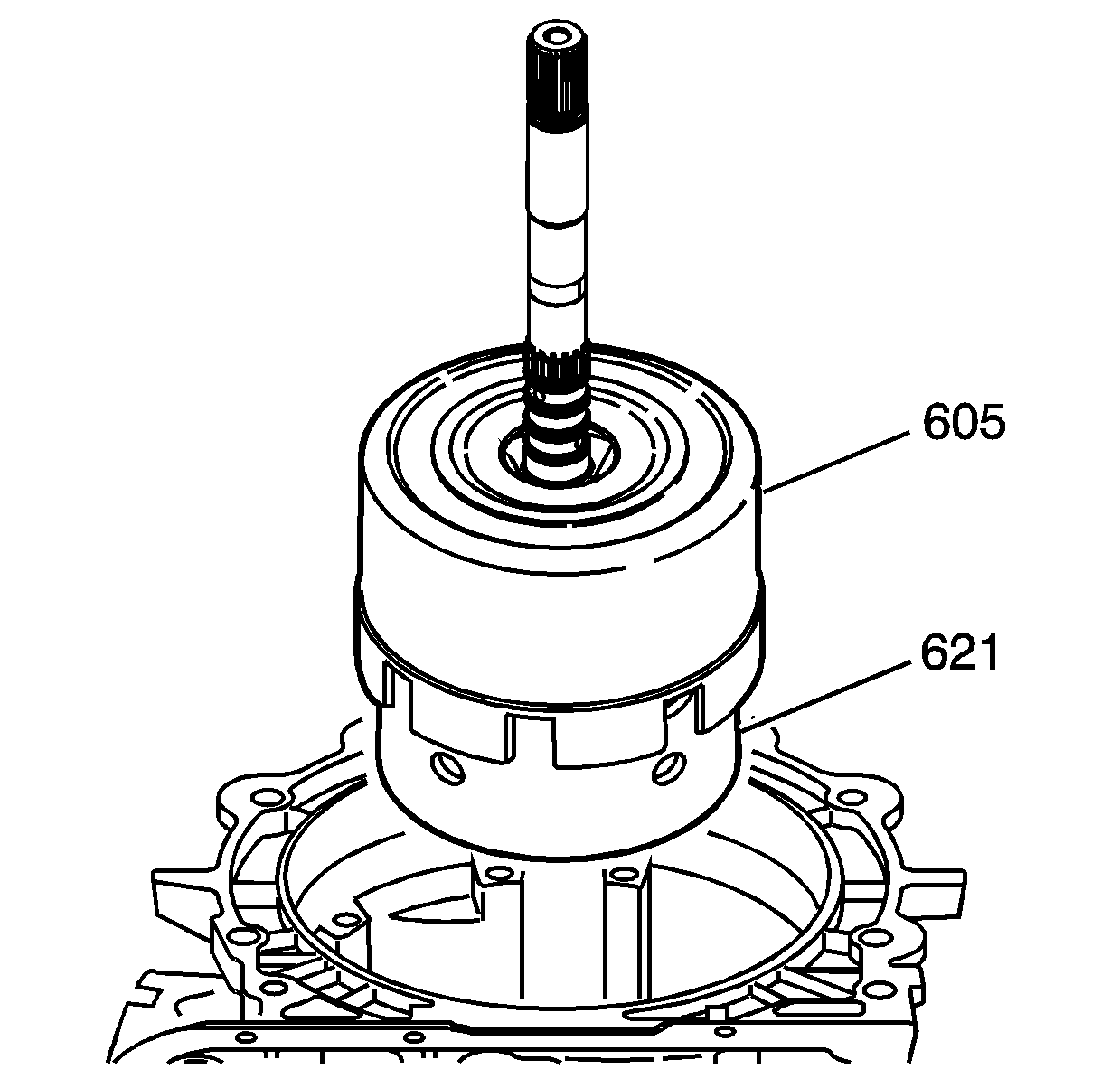

    2. Fig 2: Input Housing & Shaft Assembly & Reverse Input Clutch Housing & Drum Assembly
    GM1552921Courtesy of GENERAL MOTORS CORP.
  2. Remove the input housing and shaft assembly (621), along with the reverse input clutch housing and drum assembly (605).
    3. Fig 3: View Of 2-4 Band Assembly
    GM190436Courtesy of GENERAL MOTORS CORP.
  3. Remove the 2-4 band assembly (602).
