Ground Distribution Schematics

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: G100 Schematic

Courtesy of GENERAL MOTORS CORP.

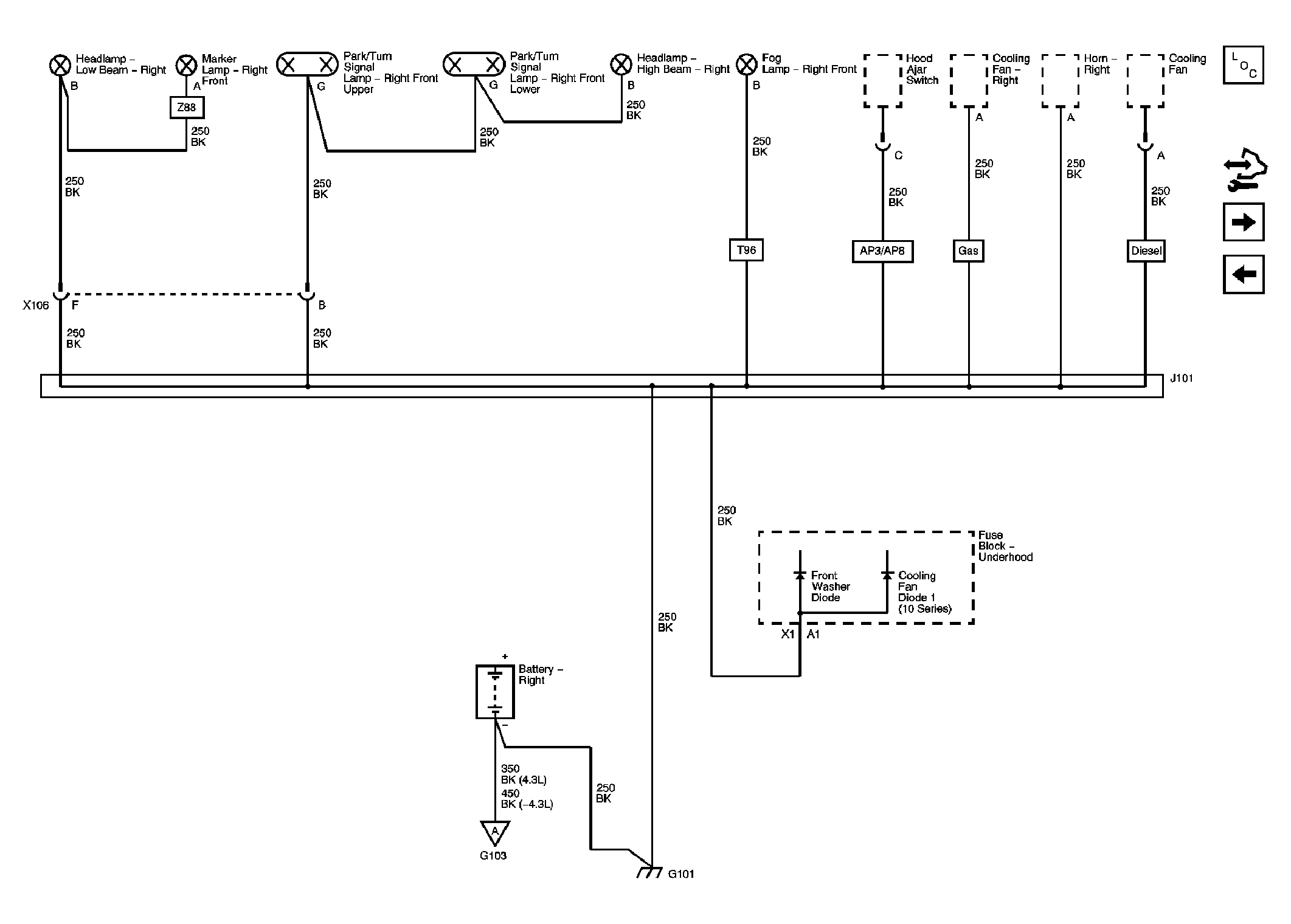

Fig 2: G101 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: G102, G107 (4.3L), G104 & G108 Schematic

Courtesy of GENERAL MOTORS CORP.

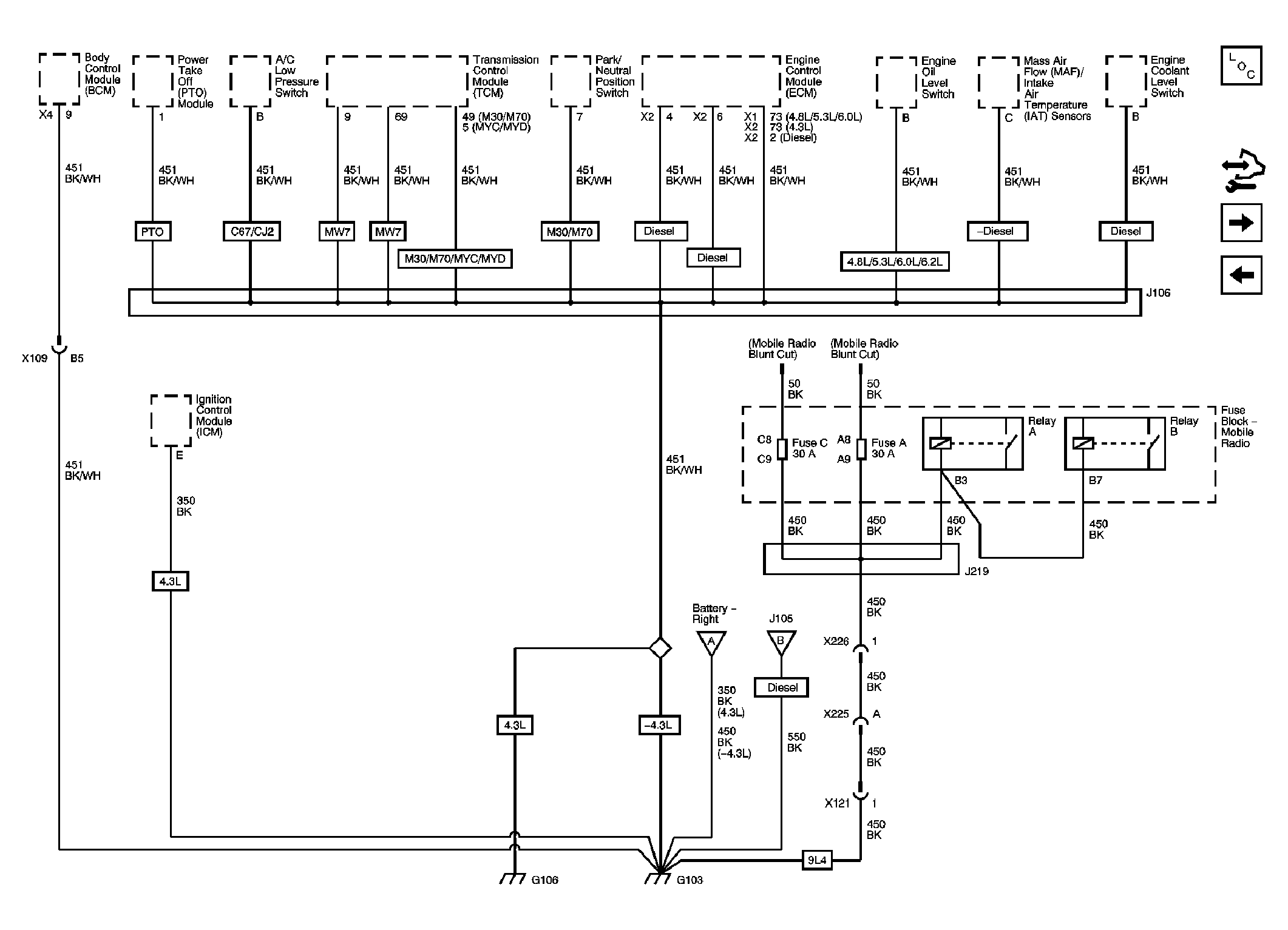

Fig 4: G106 (4.3L) & G103 Schematic

Courtesy of GENERAL MOTORS CORP.

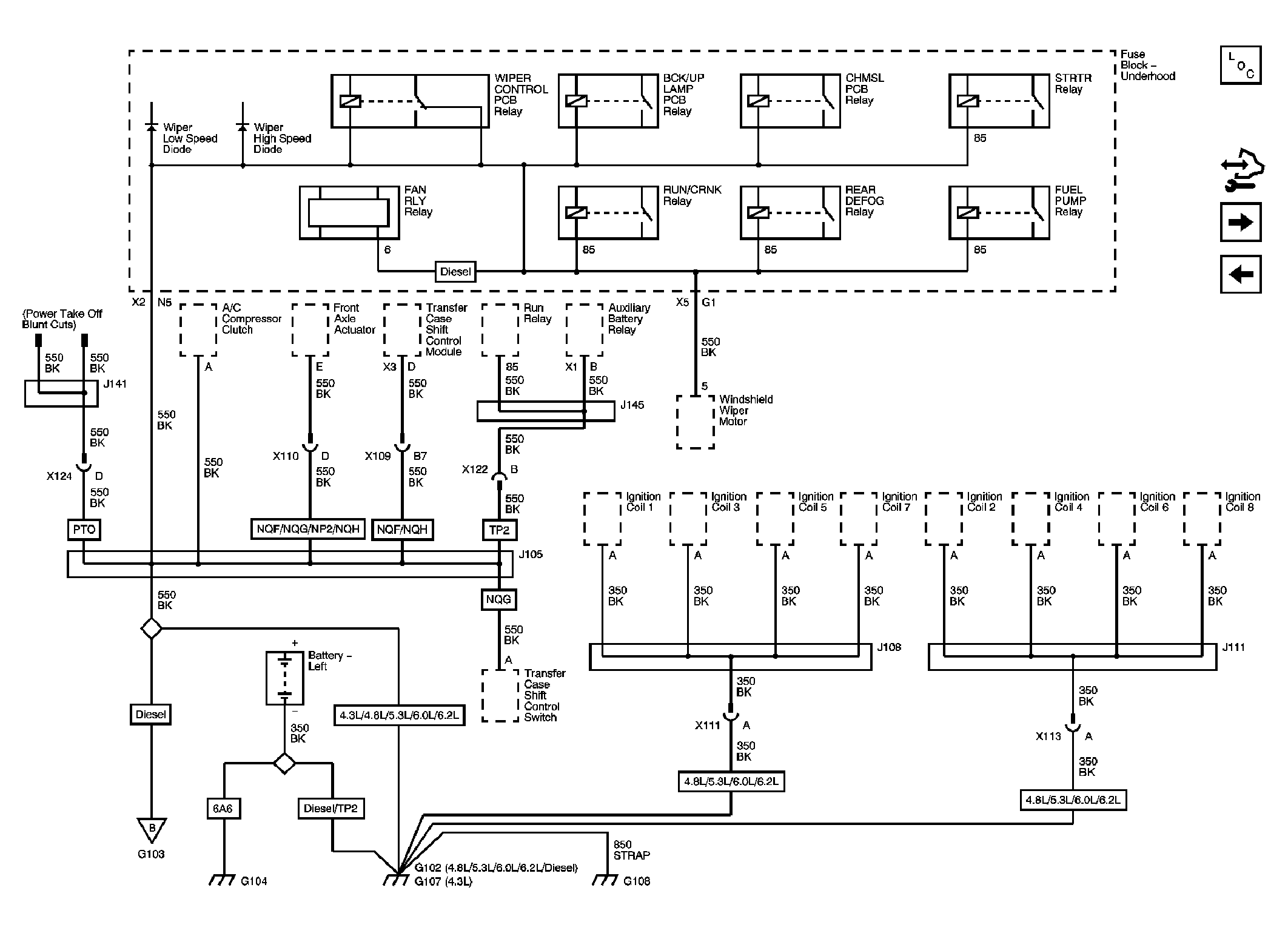

Fig 5: G106 (Diesel), G105, G110 & G111 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: G200 1 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: G200 2 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

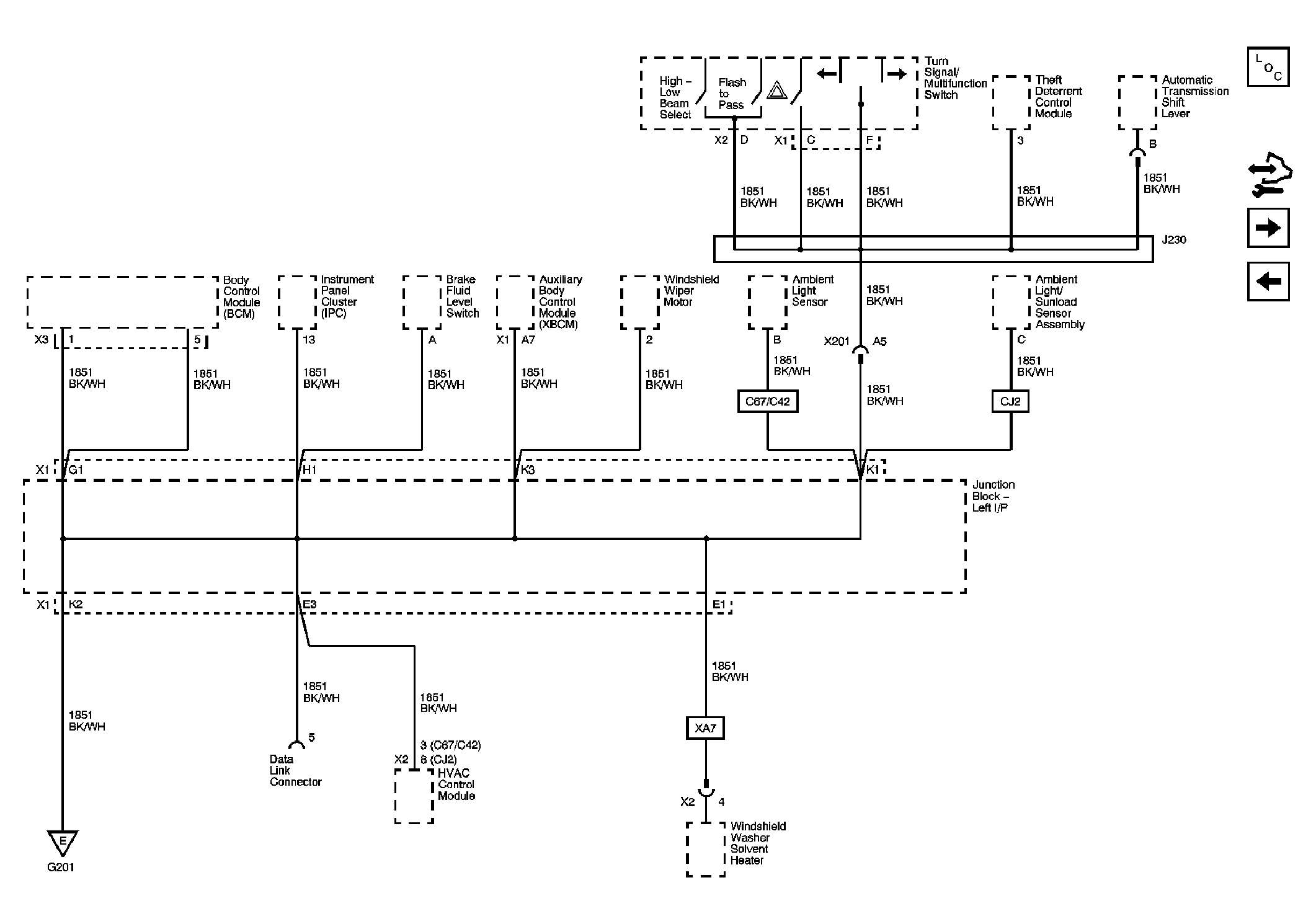

Fig 8: G201 1 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

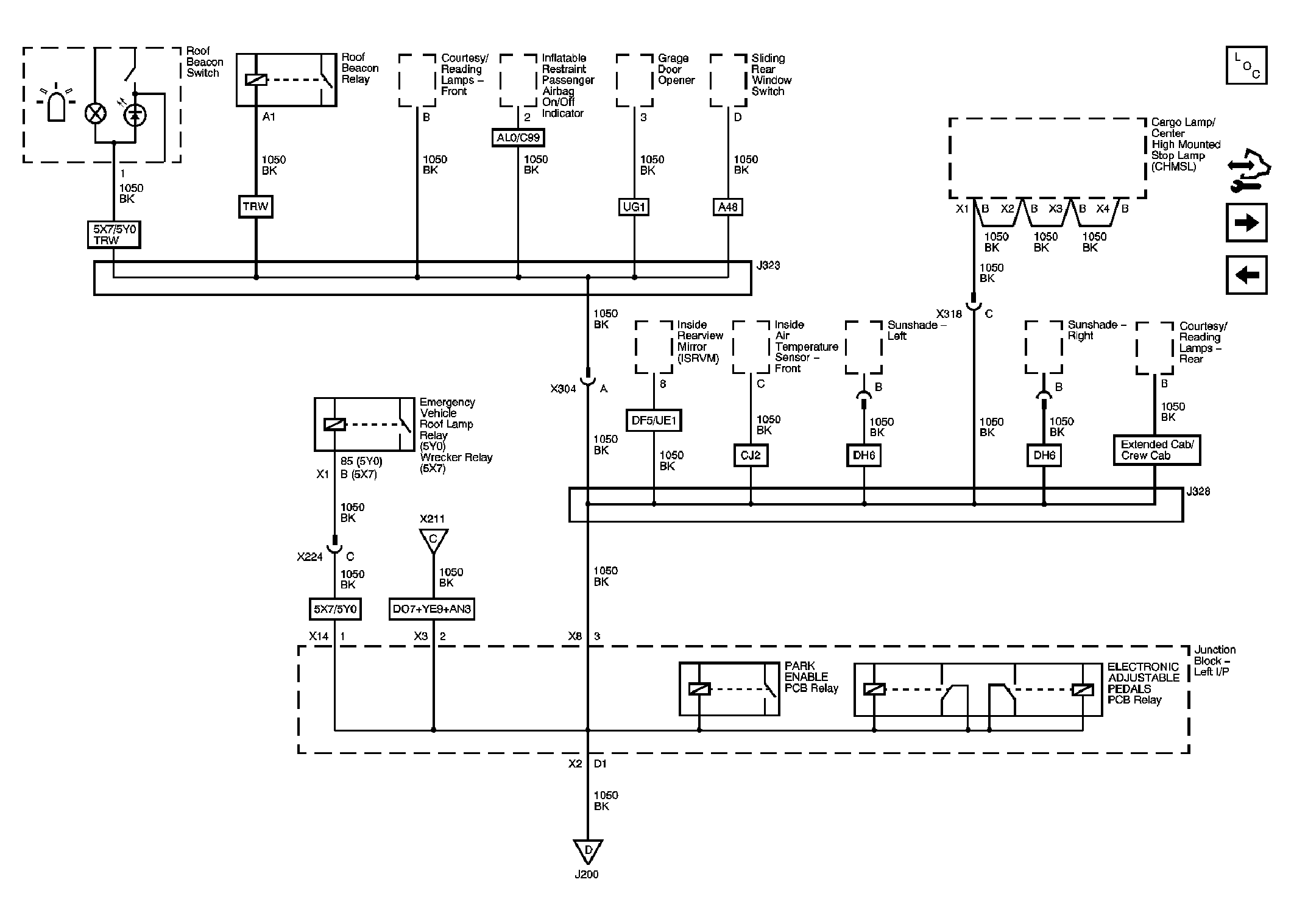

Fig 9: G201 2 of 2 Schematic

Courtesy of GENERAL MOTORS CORP.

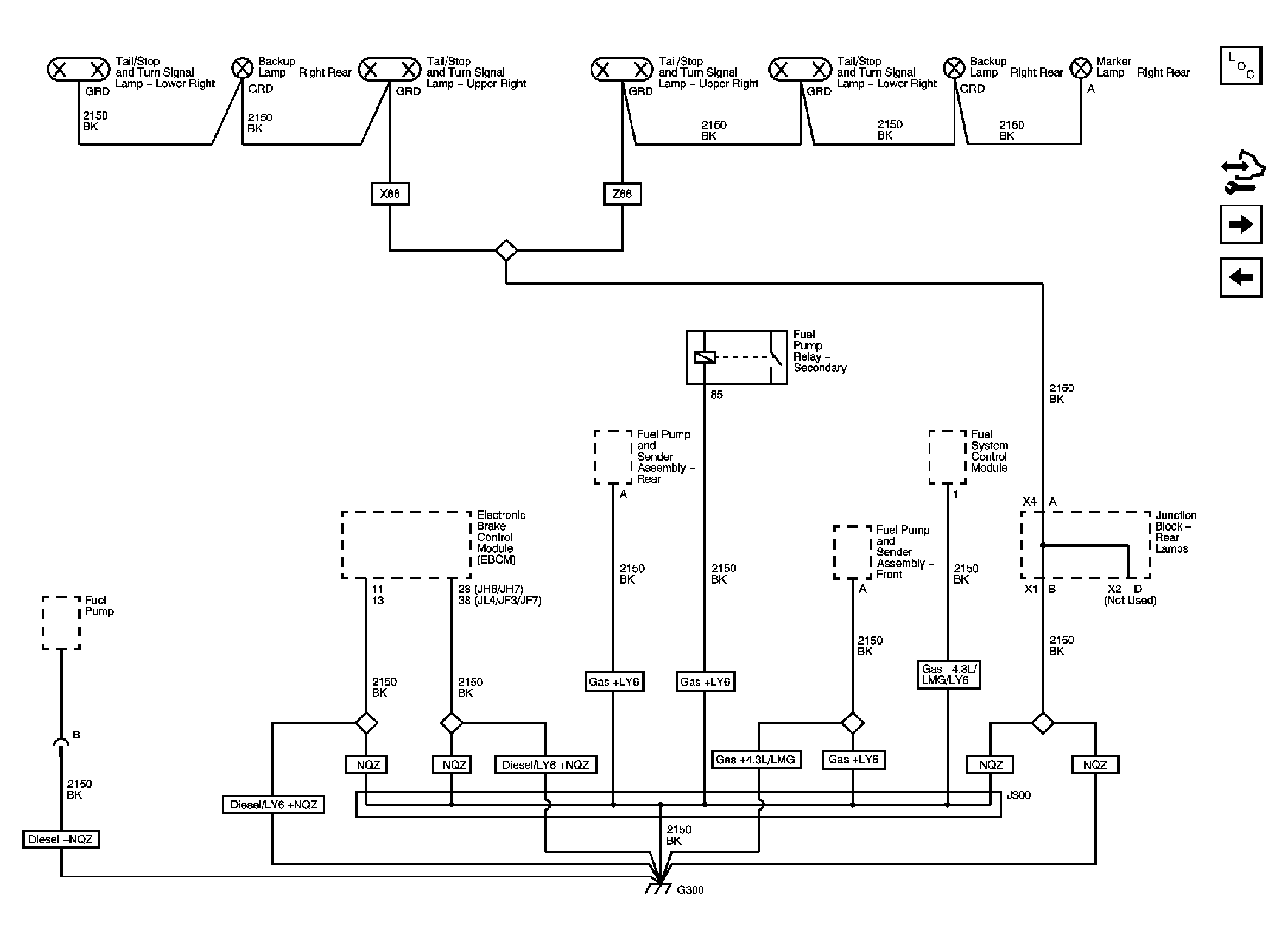

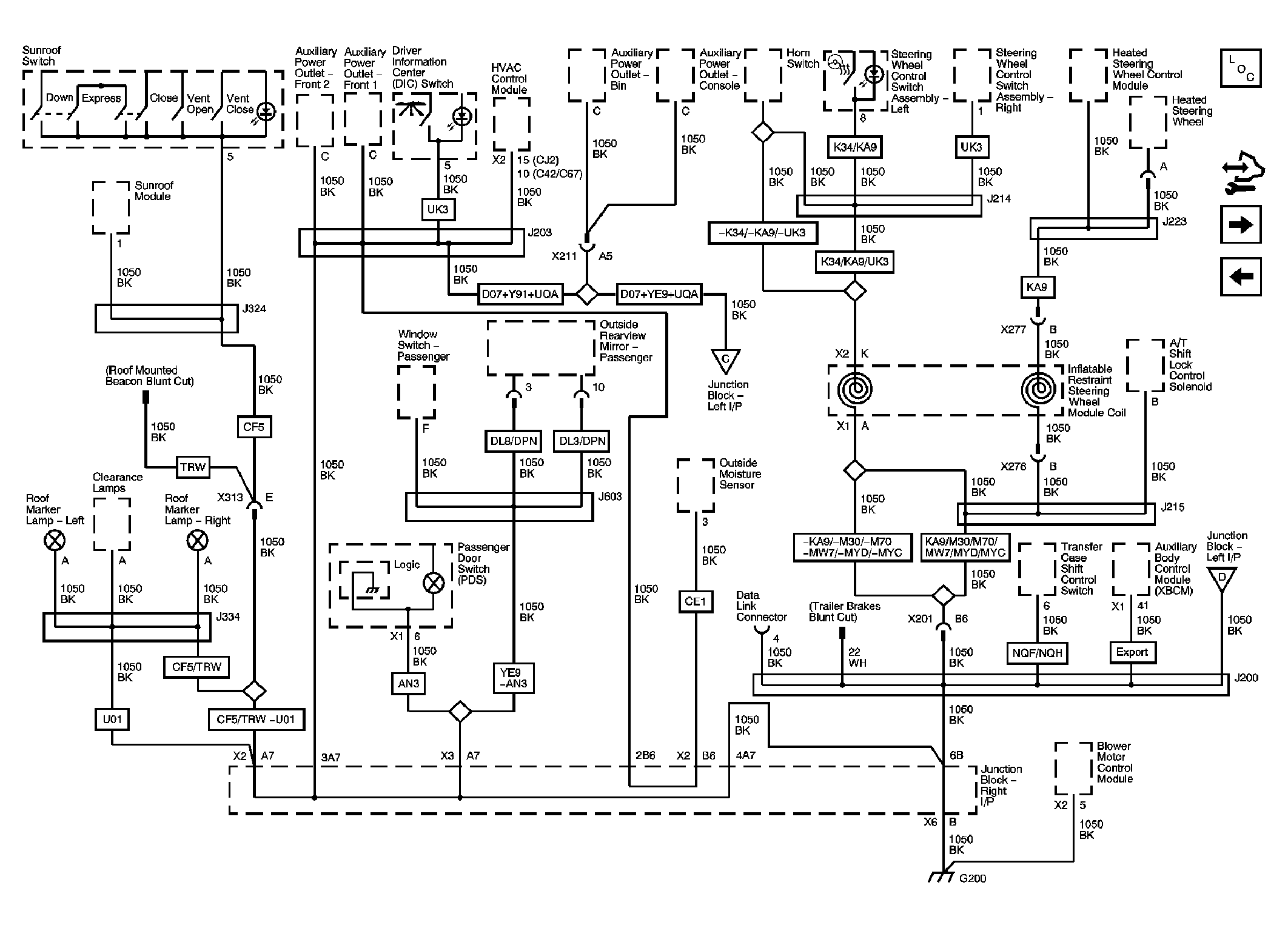

Fig 10: G300 Schematic

Courtesy of GENERAL MOTORS CORP.

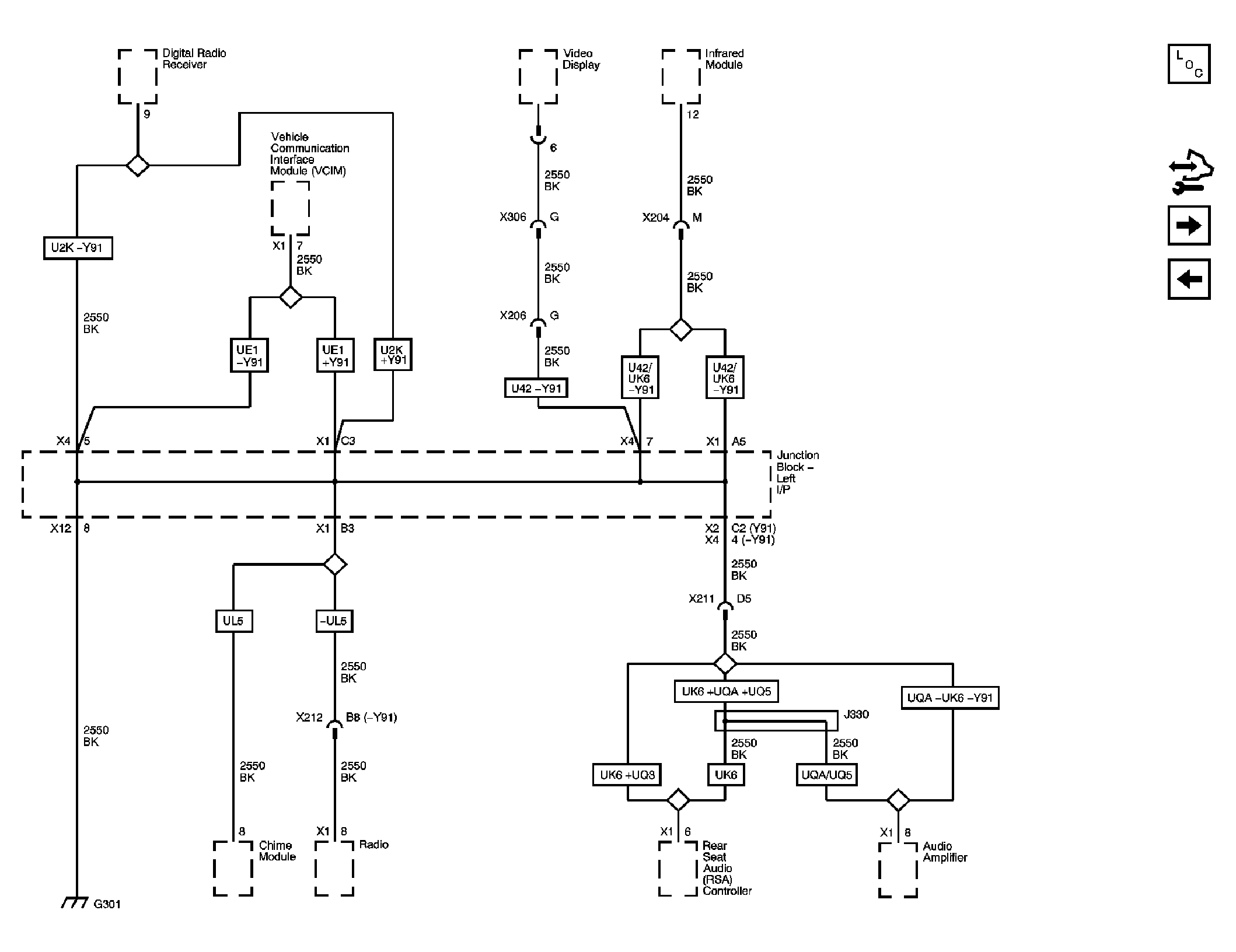

Fig 11: G301 Schematic

Courtesy of GENERAL MOTORS CORP.

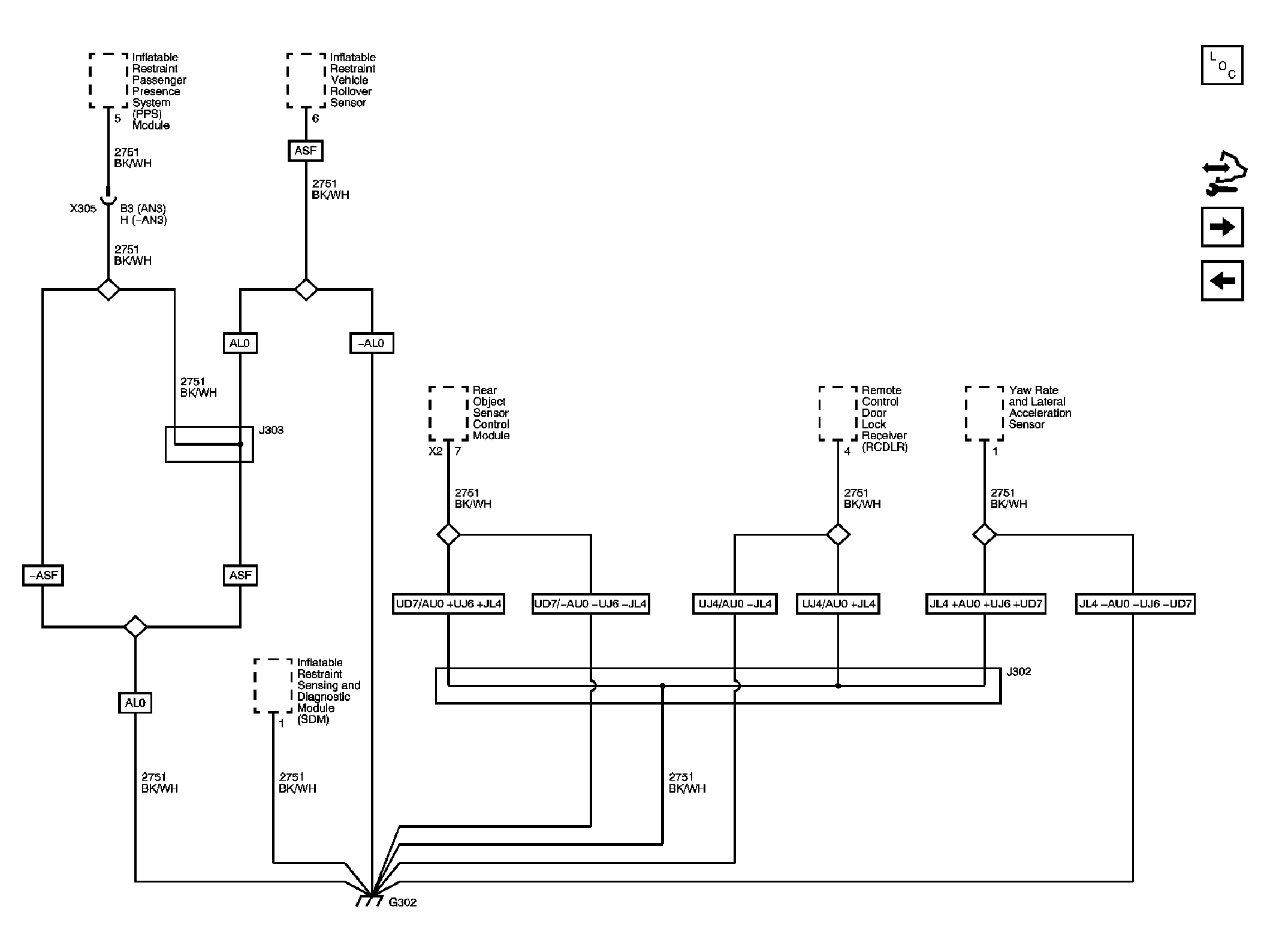

Fig 12: G302 Schematic

Courtesy of GENERAL MOTORS CORP.

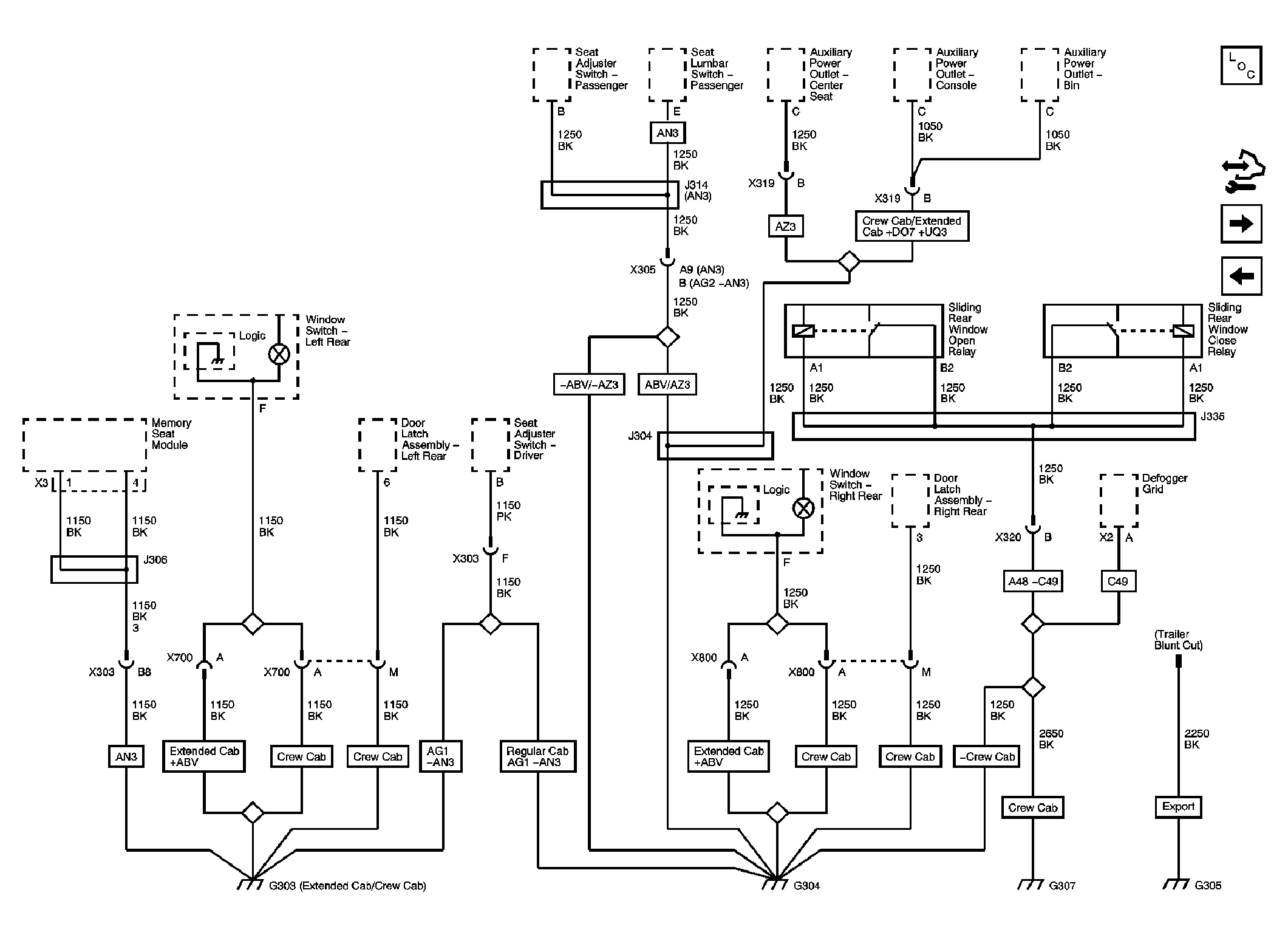

Fig 13: G303, G304, G305 & G307 Schematic

Courtesy of GENERAL MOTORS CORP.

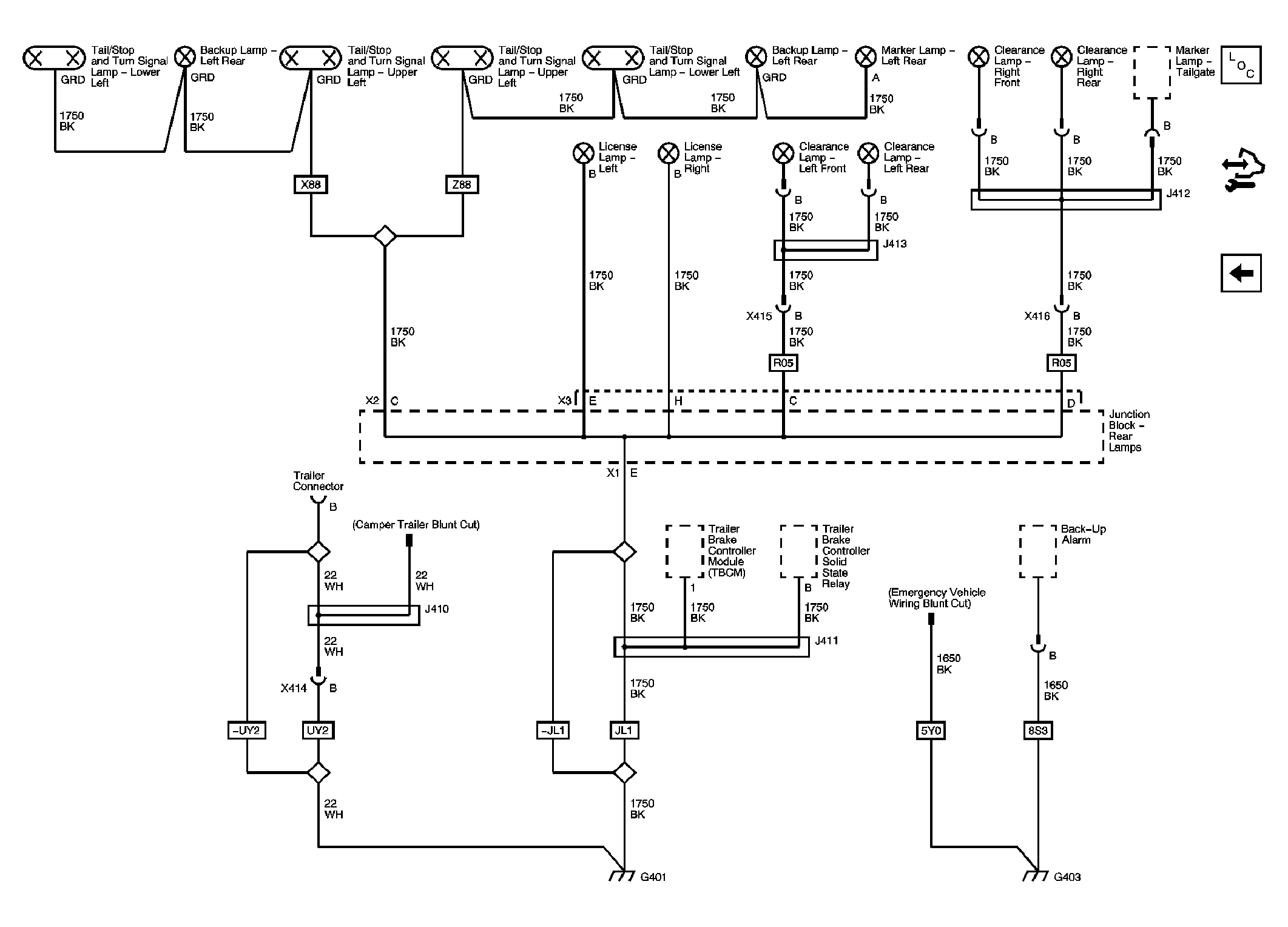

Fig 14: G401 & G403 Schematic

Courtesy of GENERAL MOTORS CORP.
