Instrument Cluster Replacement (without RPO SLT)

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

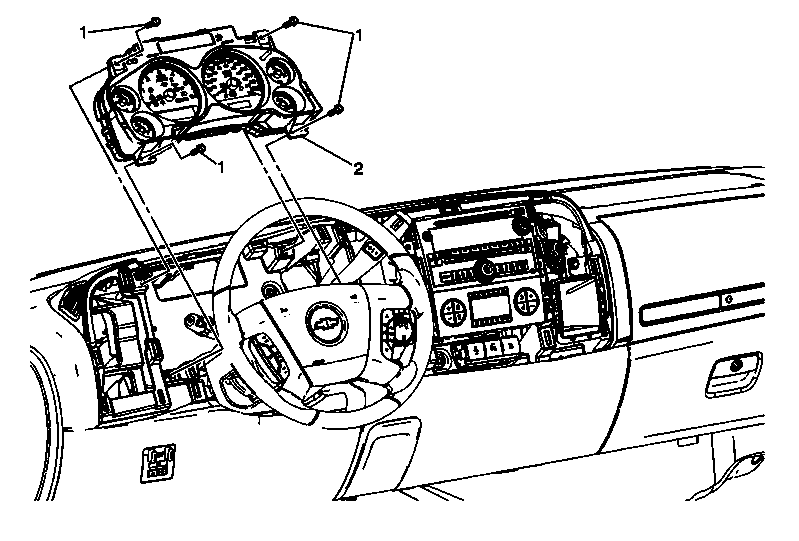

Fig 1: View Of Instrument Panel Cluster Assembly & Screws
GM1827297Courtesy of GENERAL MOTORS CORP.
Instrument Cluster Replacement (without RPO SLT)

Callout Component Name
Preliminary Procedure:
Remove the instrument panel cluster trim panel. Refer to Instrument Cluster Trim Panel Replacement (Without RPO SLT) or Instrument Cluster Trim Panel Replacement (with RPO SLT) .
1 Instrument Panel Cluster Assembly Screw (Qty 4)
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)
2 Instrument Panel Cluster Assembly.
Tip:
  1. Disconnect the electrical connections.
  2. A replacement cluster assembly must be programmed. Refer to Control Module References .
