Front Floor Console Replacement (without RPO SLT)

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

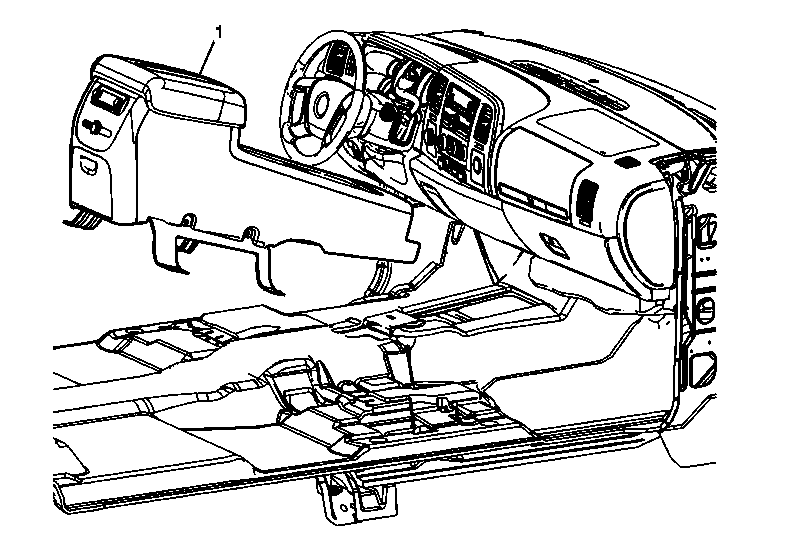

Fig 1: View Of Front Floor Console Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front seats. Refer to Front Seat Replacement - Bucket . Remove the front floor console bezel. Refer to Floor Console Bezel Replacement . Disconnect the electrical connectors to the console assembly.
1	Front Floor Console Assembly Tip: With the aid of an assistant, remove the console from the vehicle. When replacing the console assembly, transfer all the necessary components.

Callout

Component Name

Preliminary Procedures

Remove the front seats. Refer to Front Seat Replacement - Bucket .
Remove the front floor console bezel. Refer to Floor Console Bezel Replacement .
Disconnect the electrical connectors to the console assembly.

Front Floor Console Assembly
Tip:

With the aid of an assistant, remove the console from the vehicle.
When replacing the console assembly, transfer all the necessary components.
