Transmission Control Lever Boot Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the automatic transmission control knob. Refer to Transmission Control Lever Knob Replacement . |
|

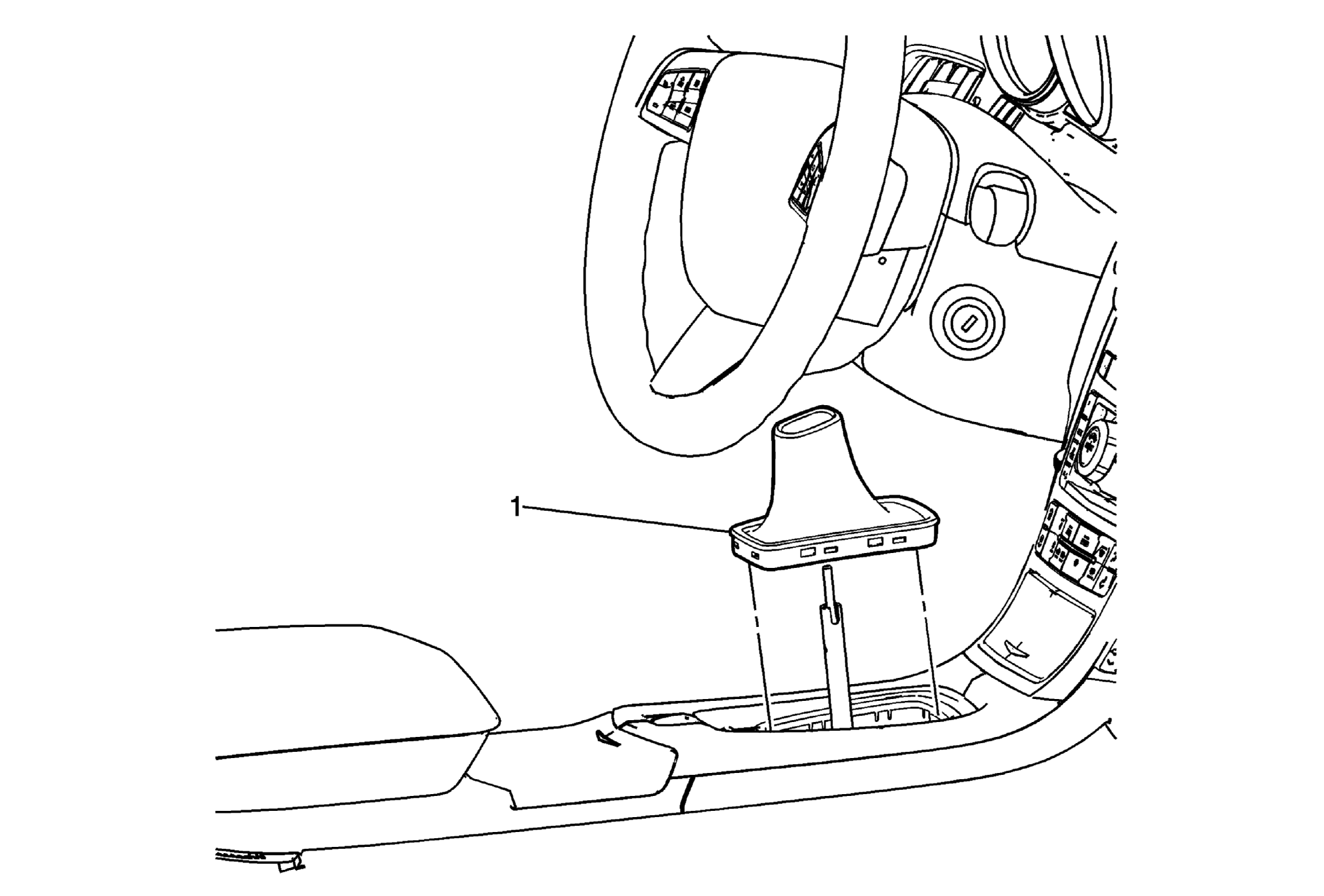

| 1 | Automatic Transmission Control Boot Assembly Procedure: Use a flat bladed plastic trim tool in order to release the retaining tabs securing the boot assembly to the front floor console transmission shift opening trim plate. |
