Shift Solenoid: Locations

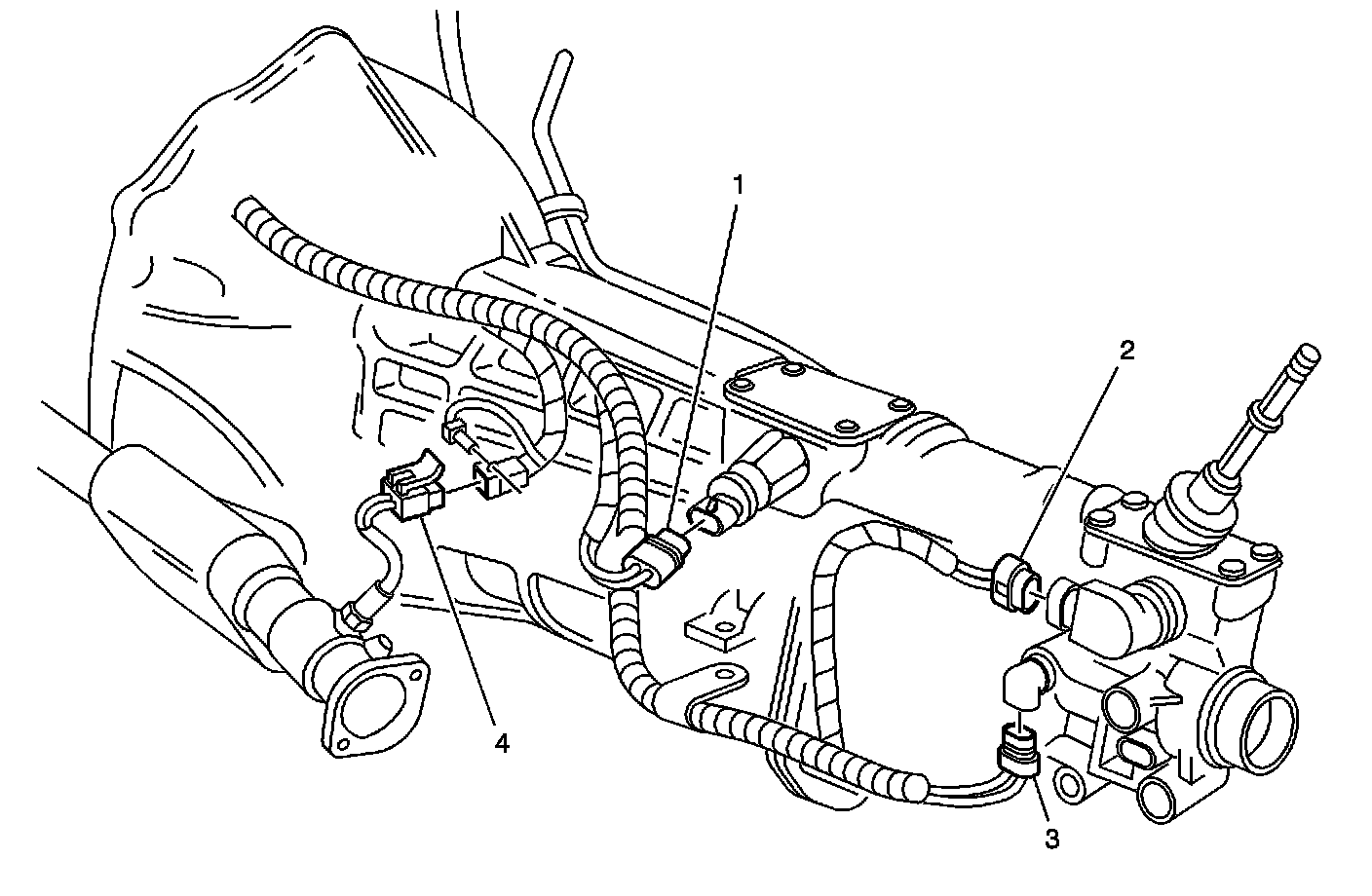

Manual Transmission Component Views

Manual Transmission Electrical Components

Manual Transmission Electrical Components:




1 - Skip Shift Solenoid
2 - Reverse Lockout Solenoid
3 - Vehicle Speed Sensor
4 - Oxygen Sensor
