Sunroof / Moonroof Switch: Locations

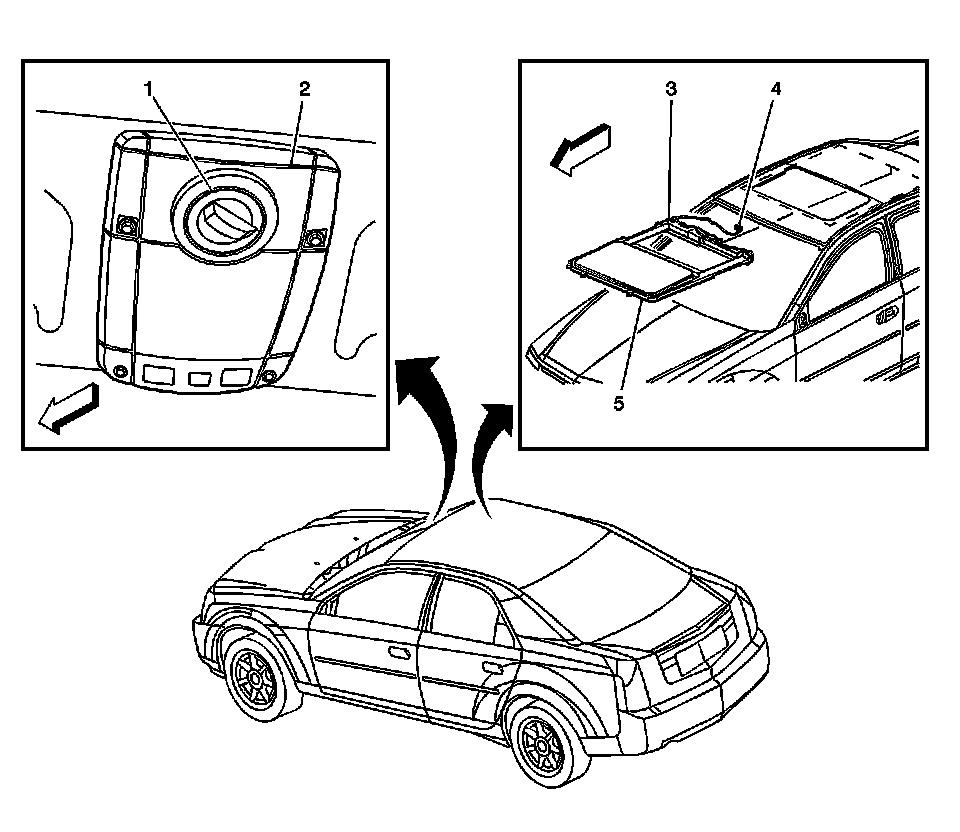

Sunroof Component Views

Roof Subsystem Components (CF5)




1 - Sunroof Control Switch
2 - Overhead Console
3 - Sunroof Motor and Sunroof Module
4 - Sunroof Module Connector
5 - Sunroof Control Module
