Electrical Diagrams

Moveable Window Schematics

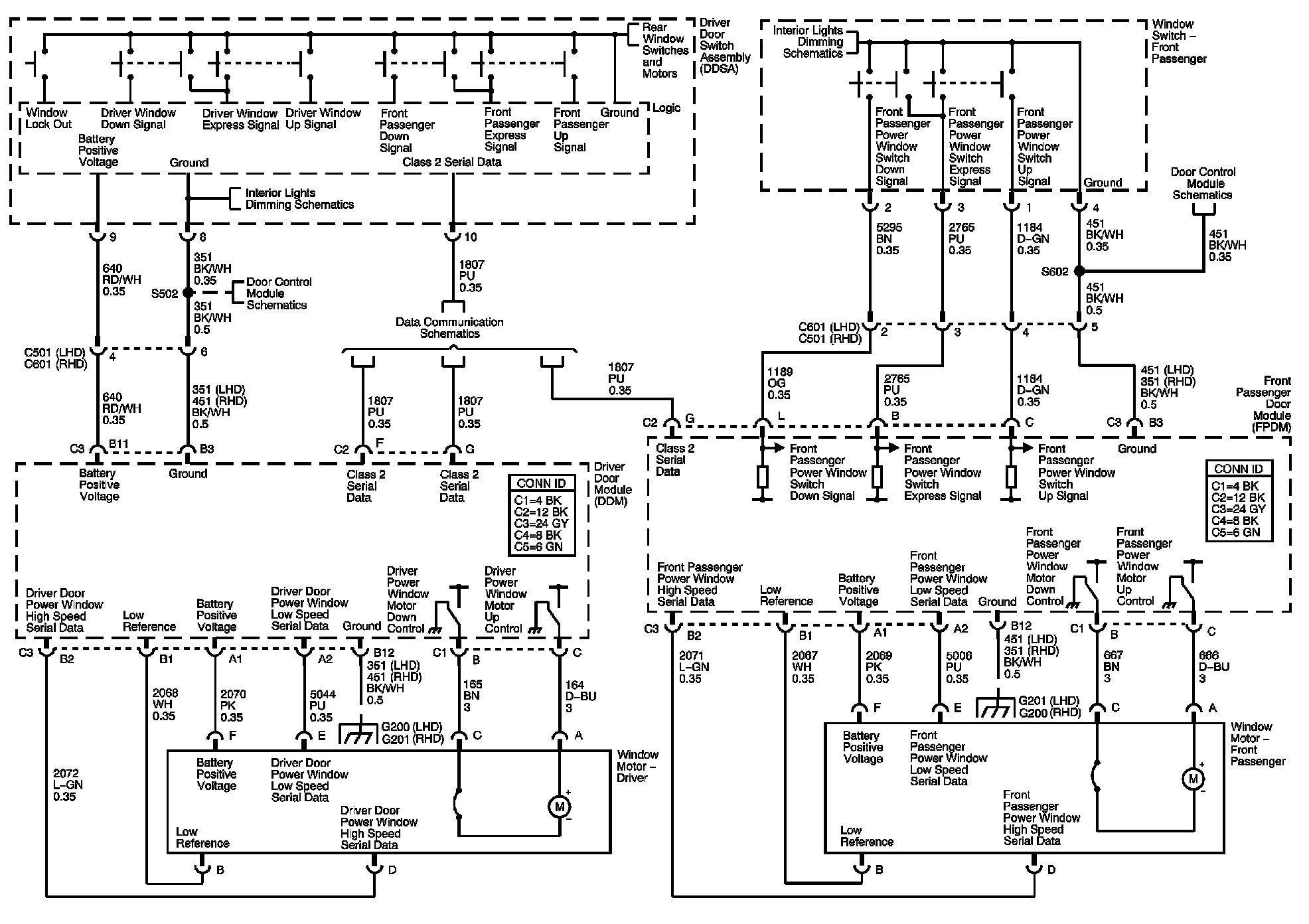

Front Power Window Switches and Motor

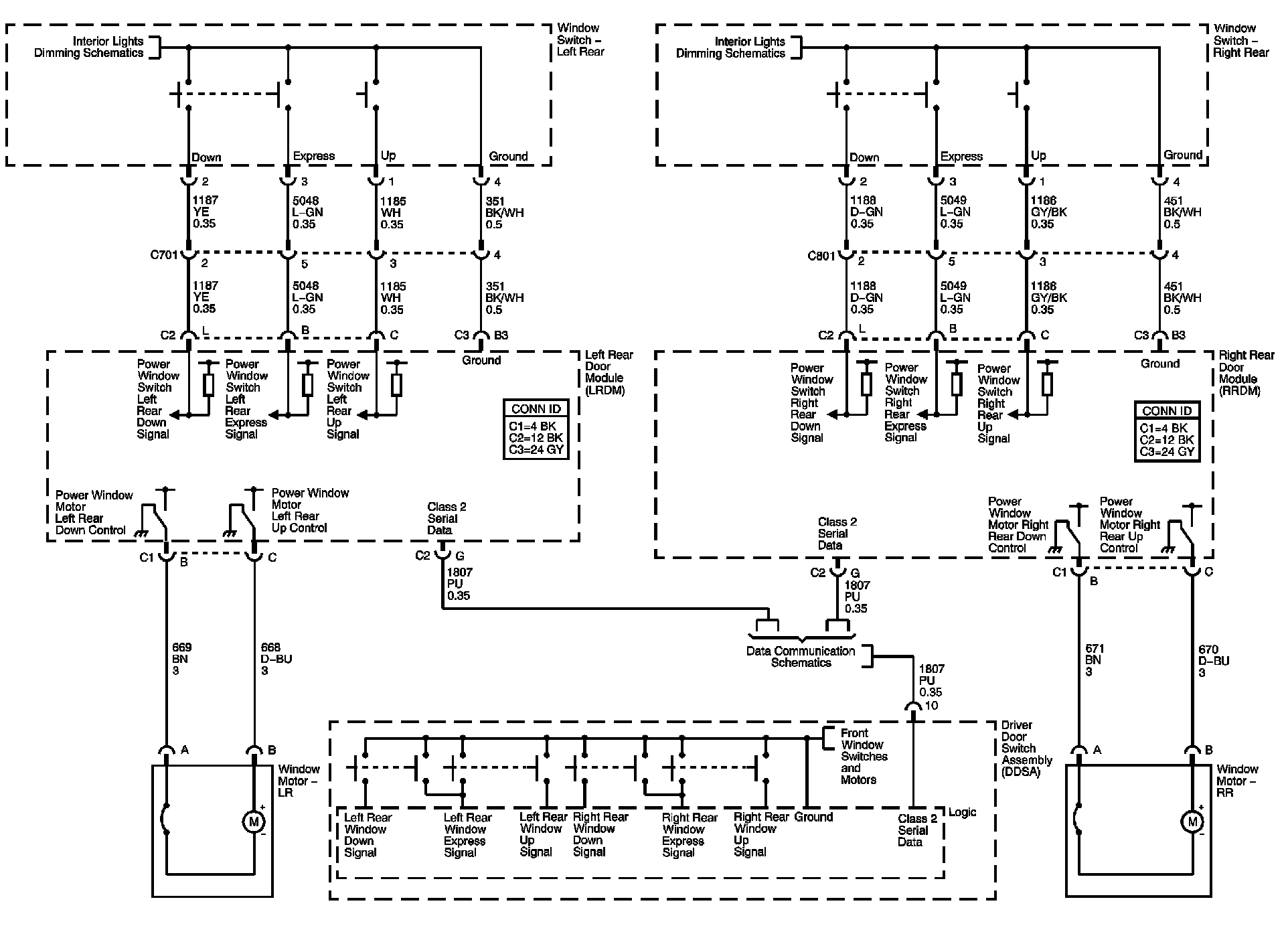

Rear Power Window Switches and Motors






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
