Shift Interlock Solenoid: Locations



Shift Lock Control Component Views

Automatic Transmission Shift Lock Control Component Views

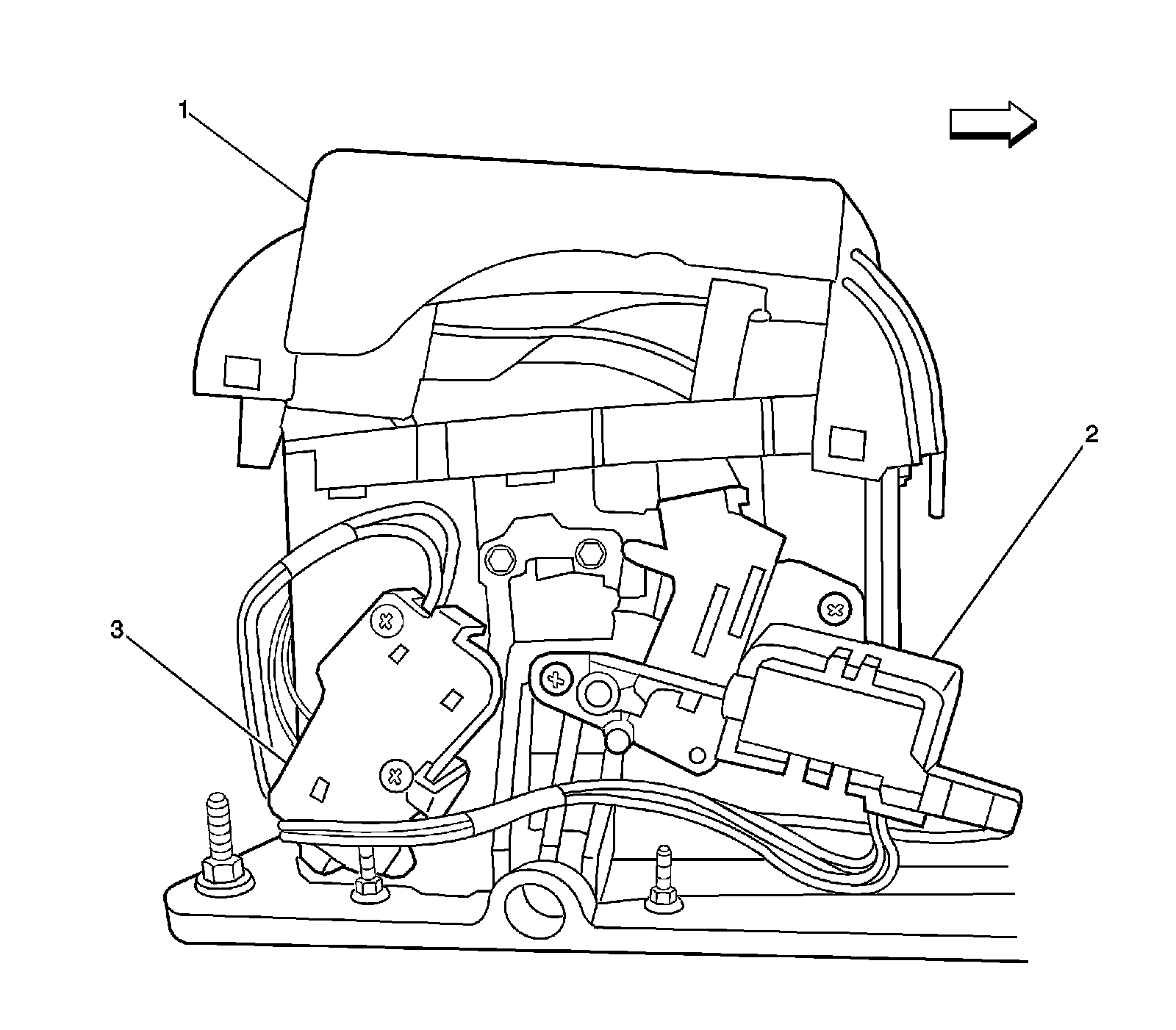

Automatic Transmission Shift Lock Control Component Views:




1 - Automatic Transmission Shift Lever
2 - A/T Shift Lock Control Solenoid
3 - Tap Up/Tap Down Switch
