Starter Solenoid: Locations

Engine Electrical Component Views

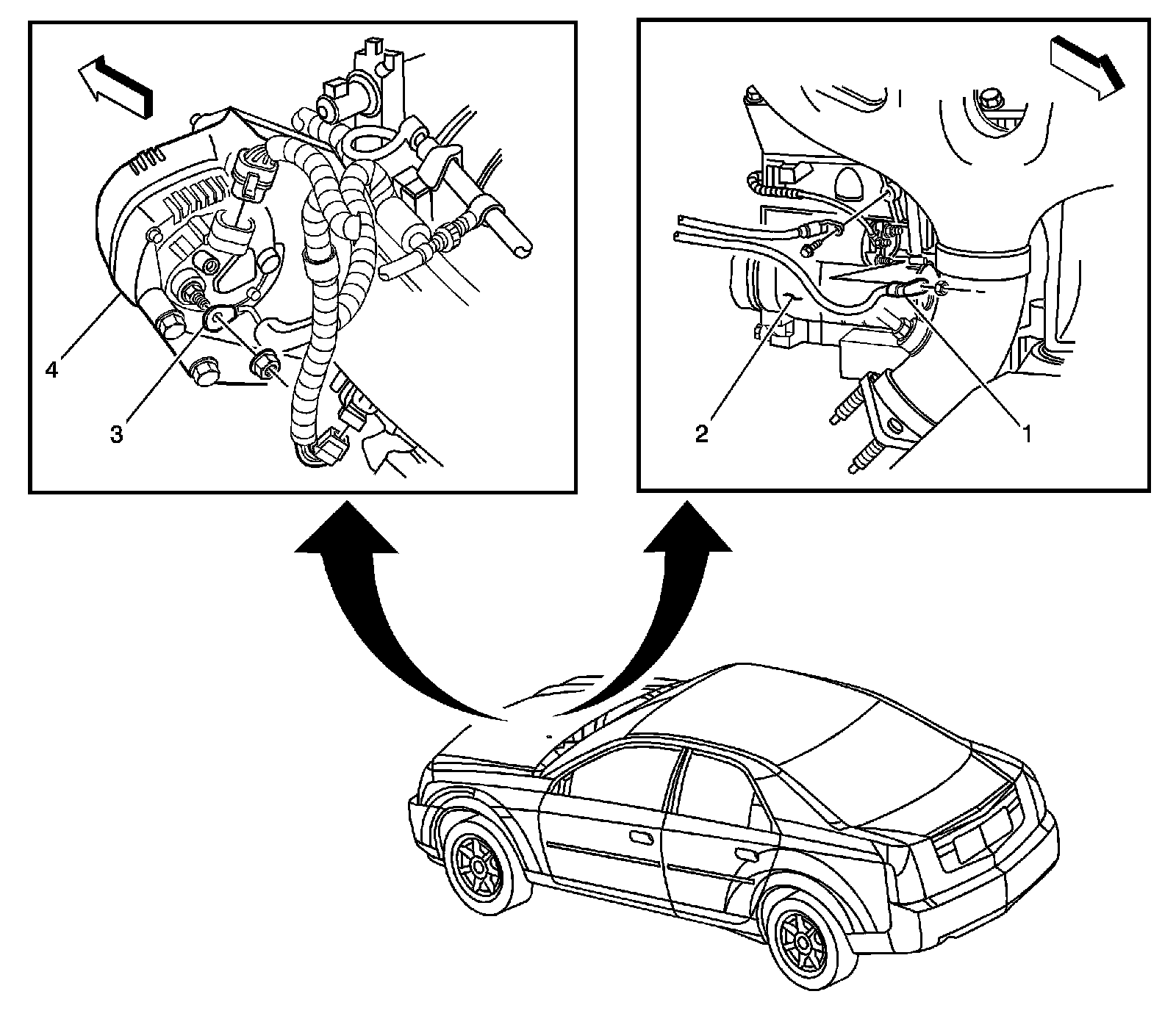

Battery Positive Cable - 2.8L/ 3.6L (LP1/LY7)




1 - Battery Positive Cable Connection to Starter
2 - Starter Solenoid
3 - Generator
4 - Battery Positive Cable Connection to Generator

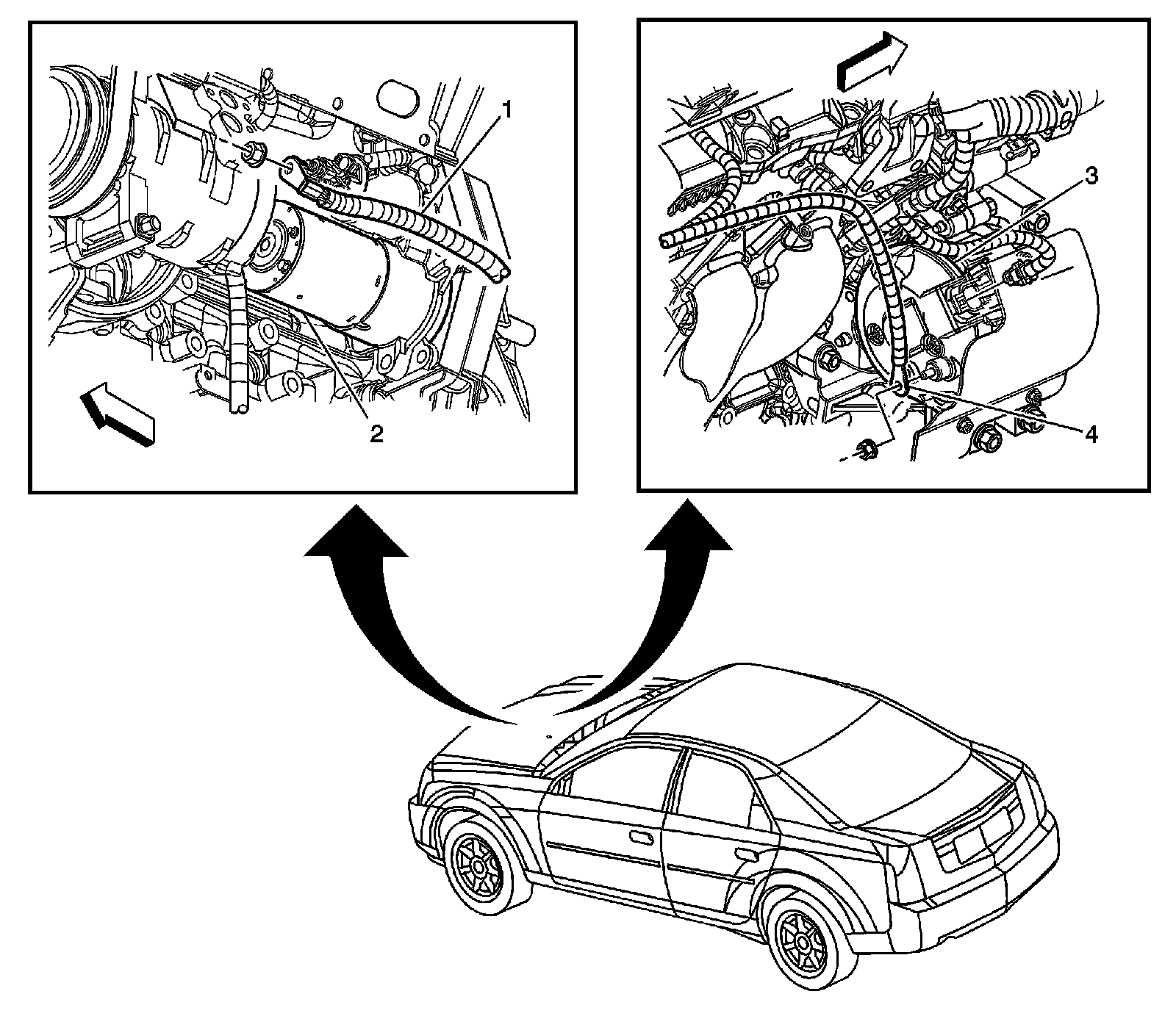

Battery Positive Cable - 6.0L (LS2)




1 - Battery Positive Cable Connection to Starter
2 - Starter Solenoid
3 - Battery Positive Cable Connection to Generator
4 - Generator
