Auxiliary Power Outlet: Locations



Power Outlet Component Views

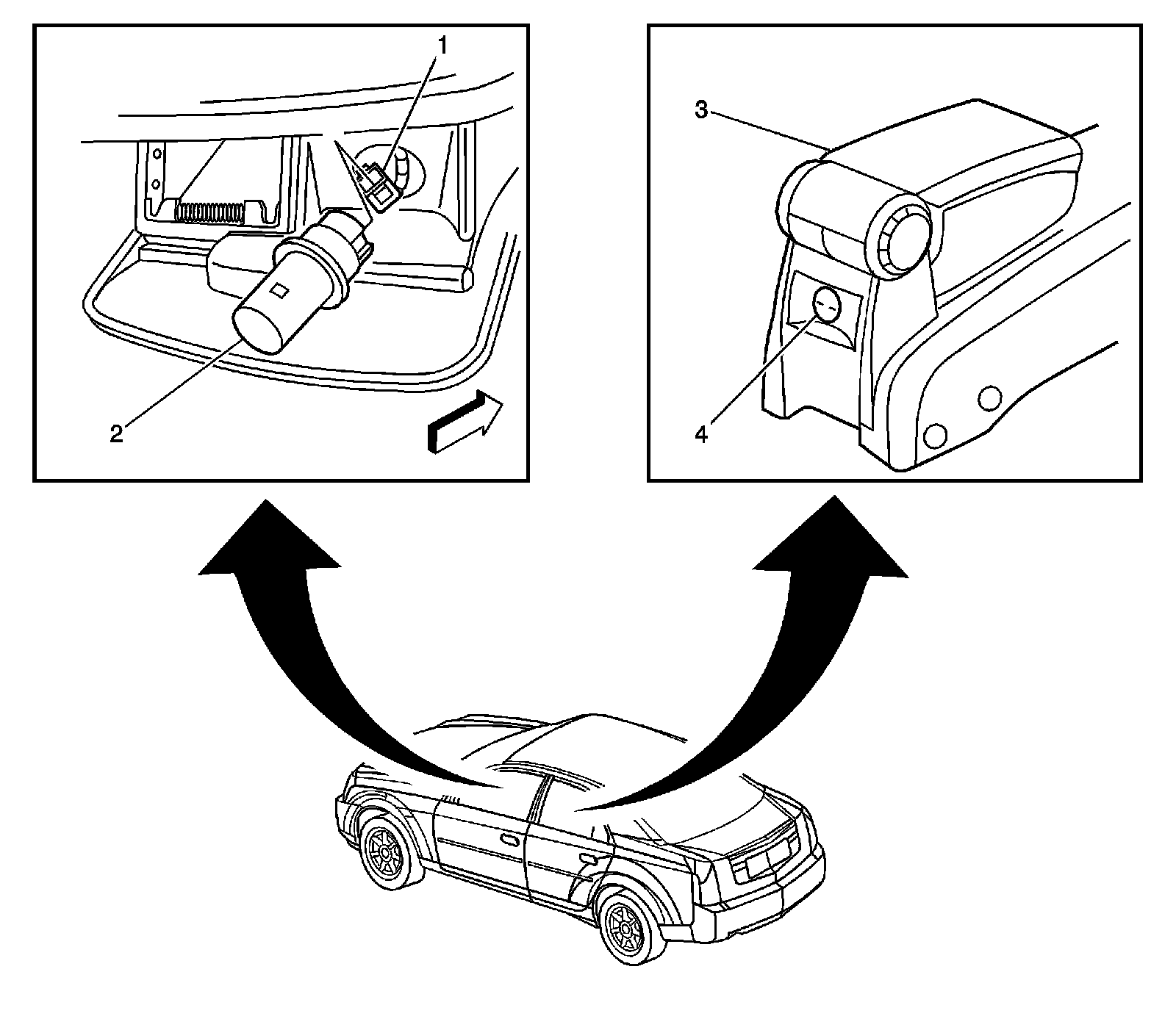

Cigar Lighter and Auxiliary Power Outlet Components




1 - Cigar Lighter Connector
2 - Cigar Lighter
3 - Console Assembly
4 - Auxiliary Power Outlet
