Disc Brake Component Specifications (JE5, JL9)



Disc Brake Component Specifications (JE5, JL9)

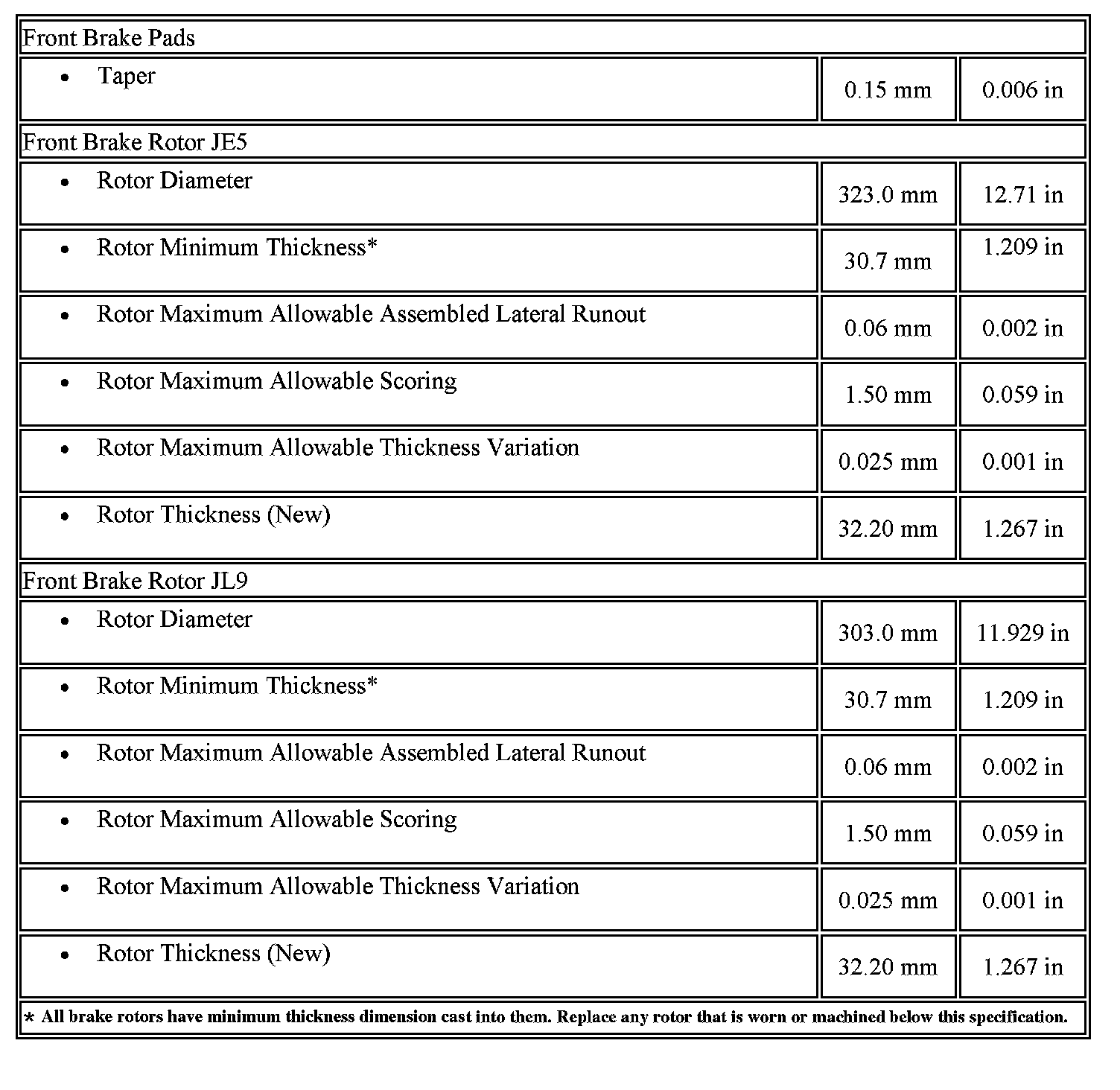

Front

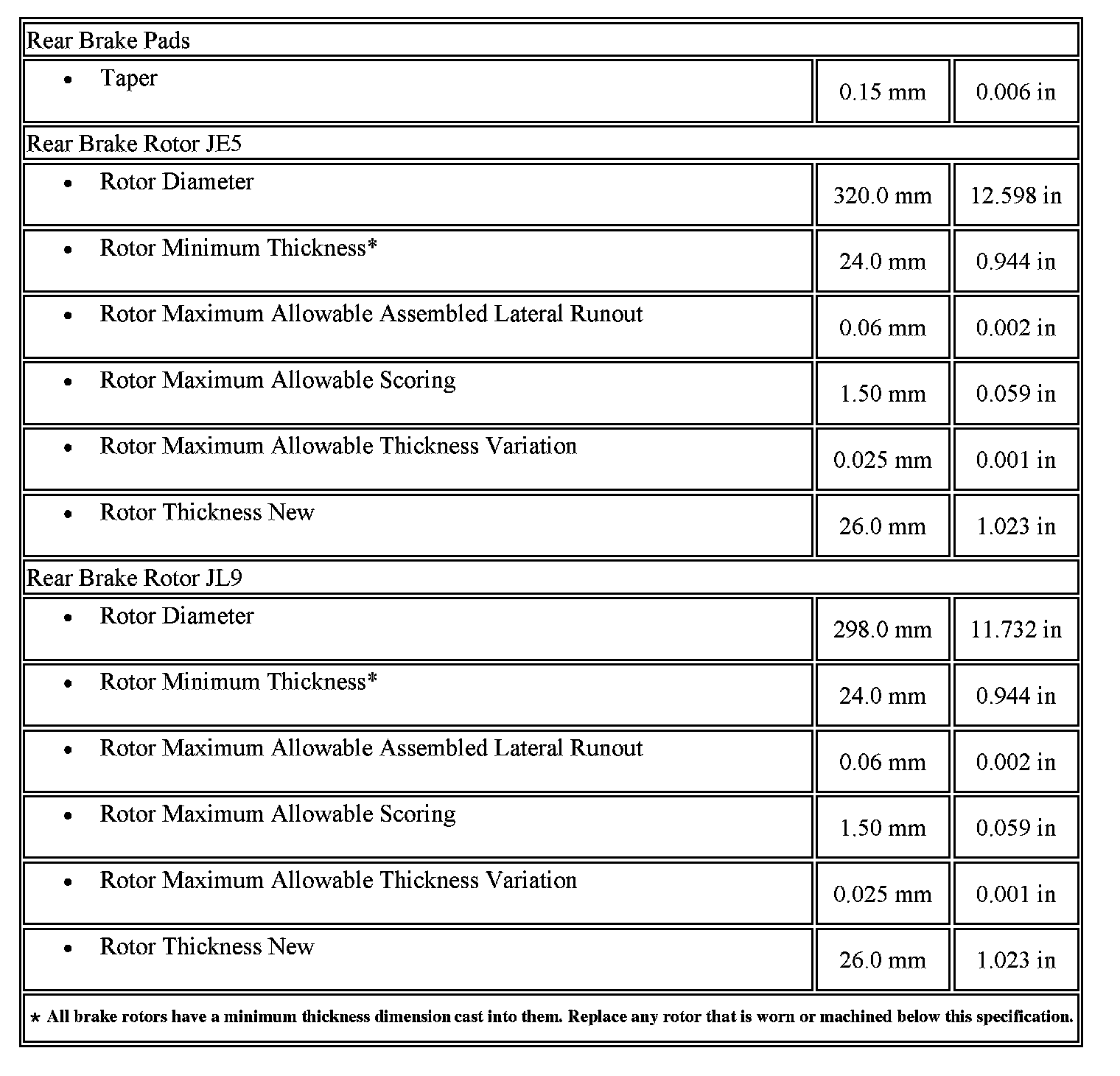

Rear
