Ignition Switch: Locations

Power and Grounding Component Views

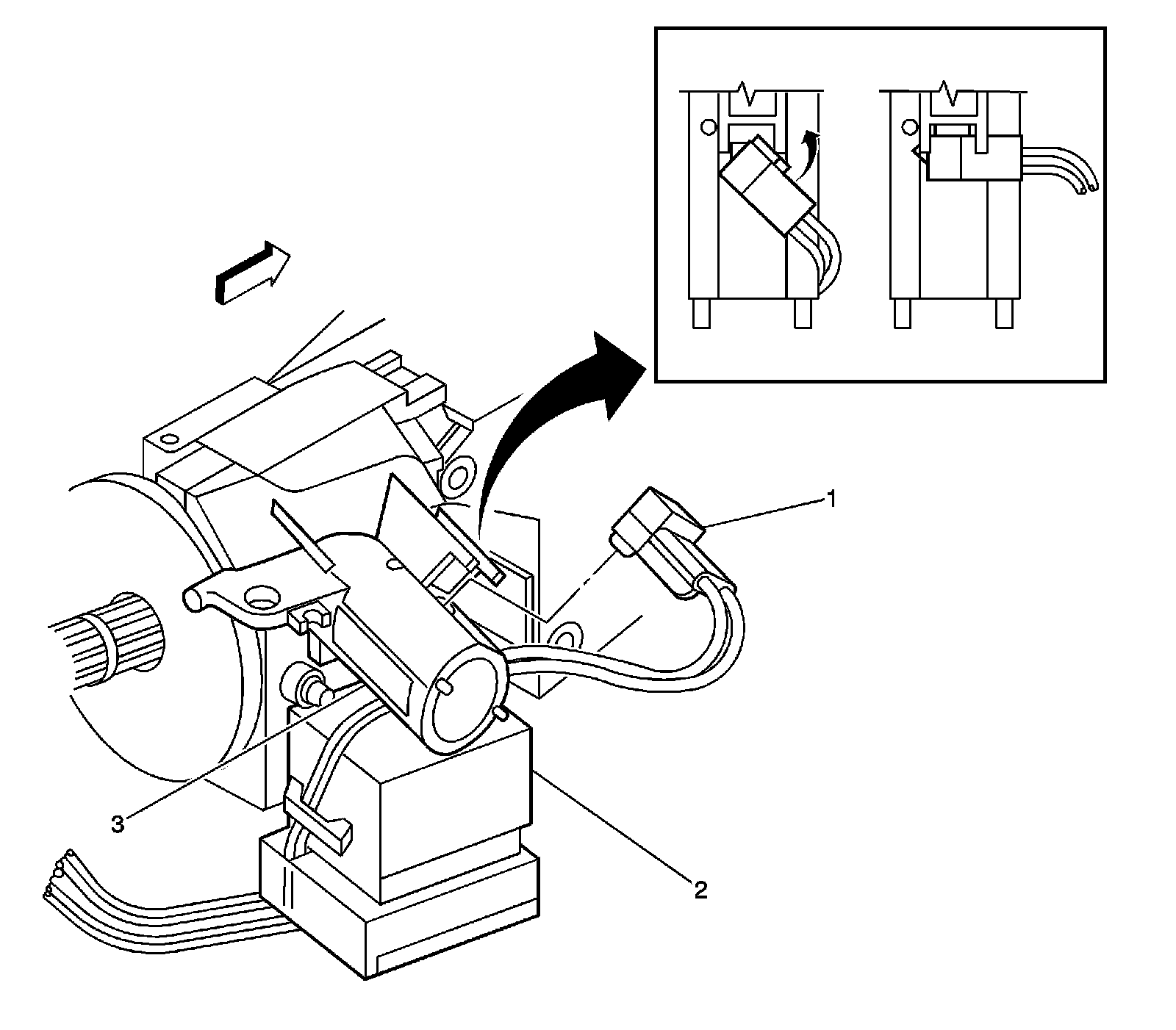

Ignition Key Alarm Switch

1 - Ignition Key Alarm Switch
2 - Ignition Switch
3 - Ignition Lock Cylinder Case
