Impact Sensor: Locations

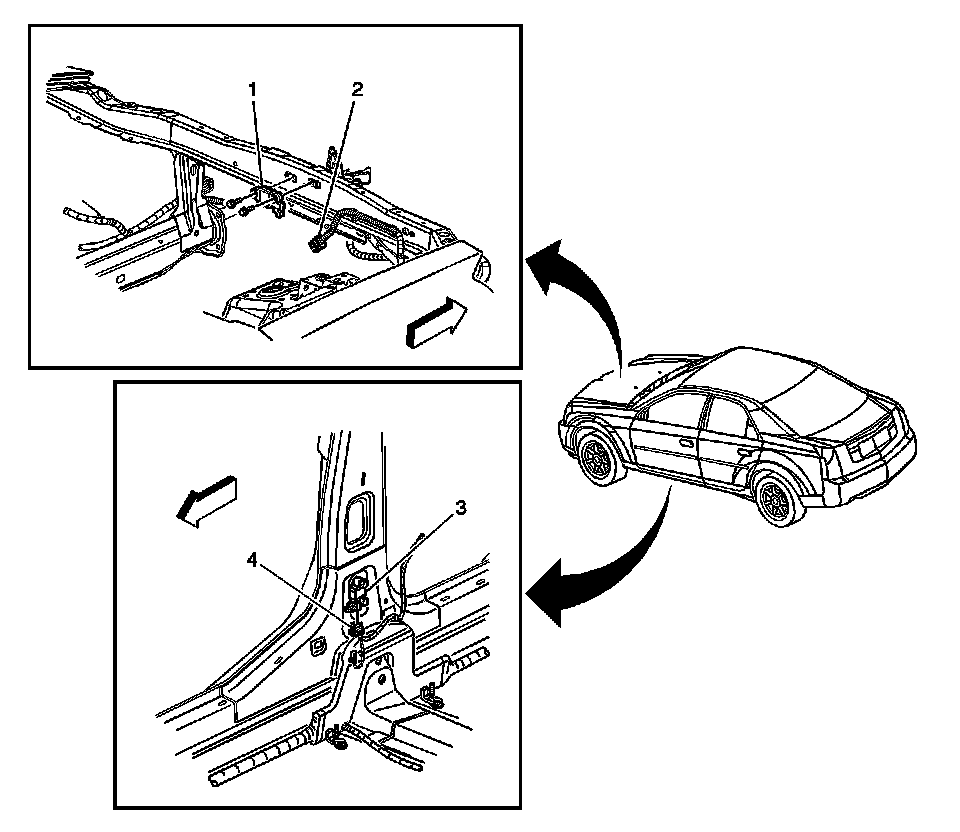

SIR Component Views

SIR Sensors




1 - Inflatable Restraint Front End Discriminating Sensor
2 - Inflatable Restraint Front End Discriminating Sensor Connector
3 - Inflatable Restraint Side Impact Sensor - Passenger (Driver Similar)
4 - Inflatable Restraint Side Impact Sensor - Passenger Connector (Driver Similar)
