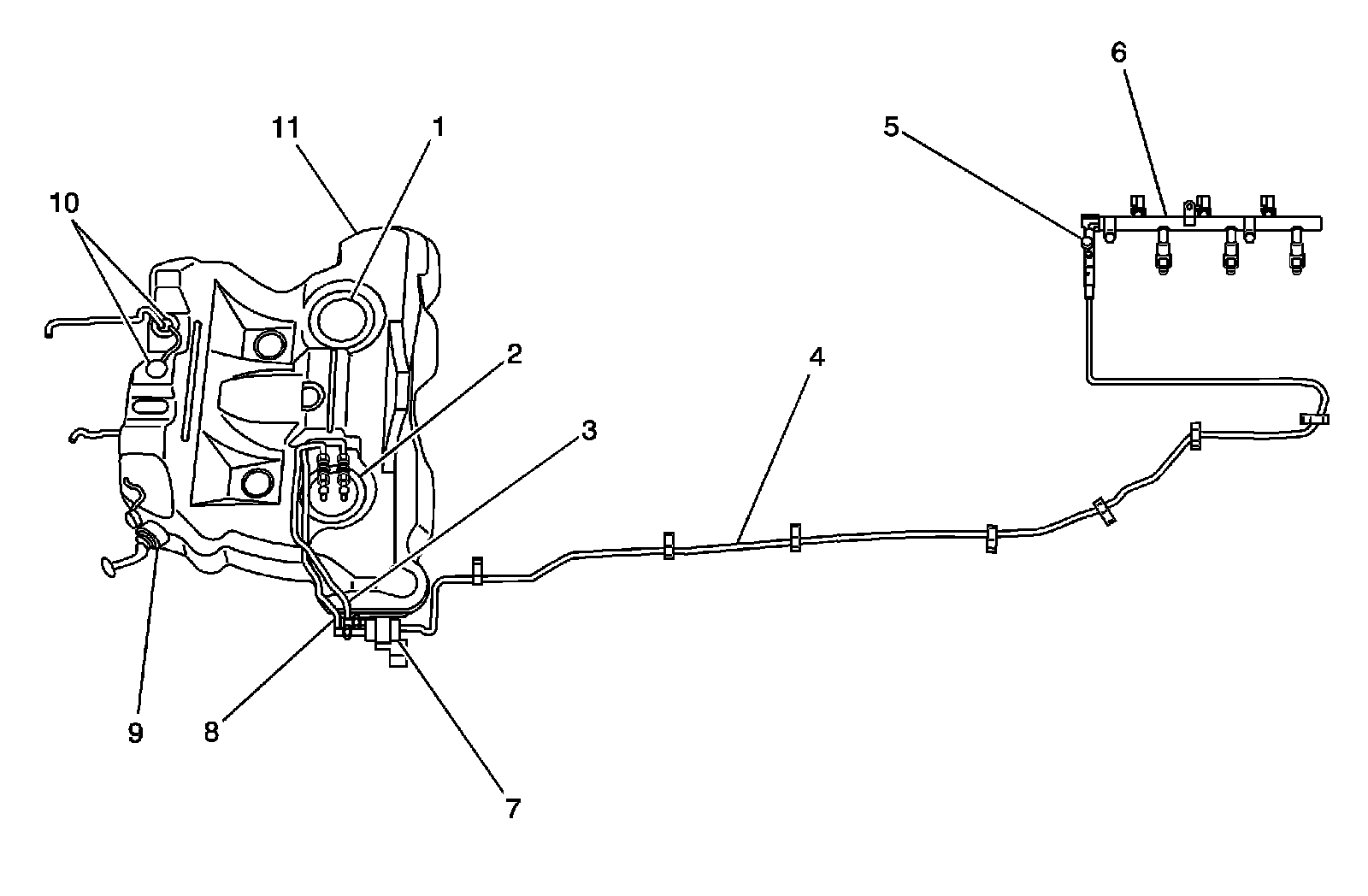

Fuel Hose/Pipes Routing Diagram




1 - Secondary Fuel Sender Assembly - Left
2 - Primary Fuel Sender Assembly - Right
3 - Fuel Feed Hose
4 - Fuel Feed Pipe
5 - Fuel Pressure Test Connection
6 - Fuel Rail and Injectors
7 - Fuel Filter
8 - Fuel Return Hose
9 - Fuel Filler Tube
10 - Fill Limit Vent Valve (FLVV)
11 - Fuel Tank
