Rear of Vehicle - Underneath

Harness Routing Views

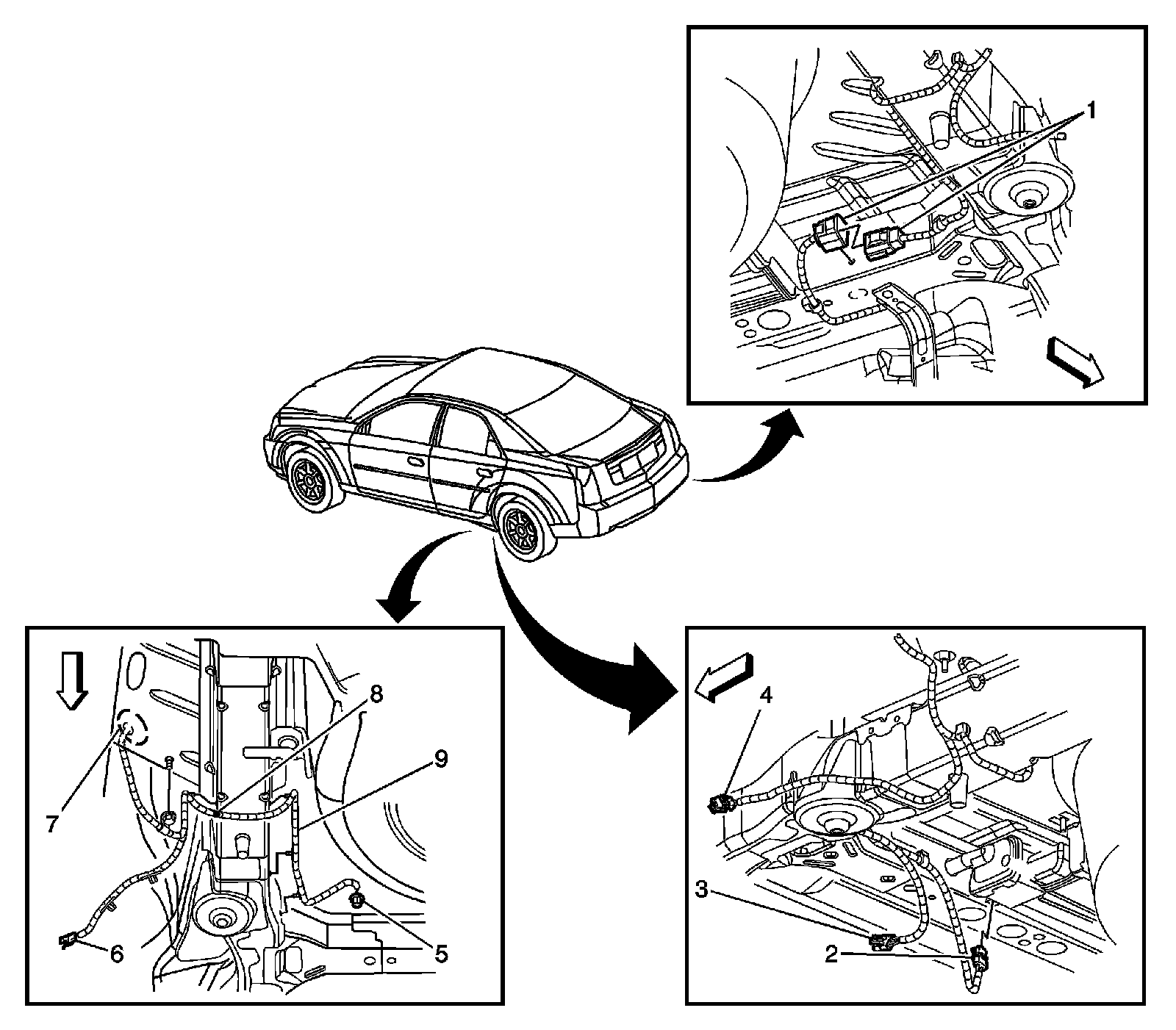

Rear of Vehicle - Underneath




1 - C420 (LP1/LY7) or C422 (LS6)
2 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve Connector
3 - Fuel Tank Pressure Sensor Connector
4 - Fuel Pump and Sender Assembly Connector
5 - Fuel Tank Pressure Sensor Connector
6 - Fuel Pump and Sender Assembly Connector
7 - Pass-Through Grommet
8 - S400
9 - G401 (Hidden Inside Rear Compartment)
