Passenger Compartment - Between Right Doors



Harness Routing Views

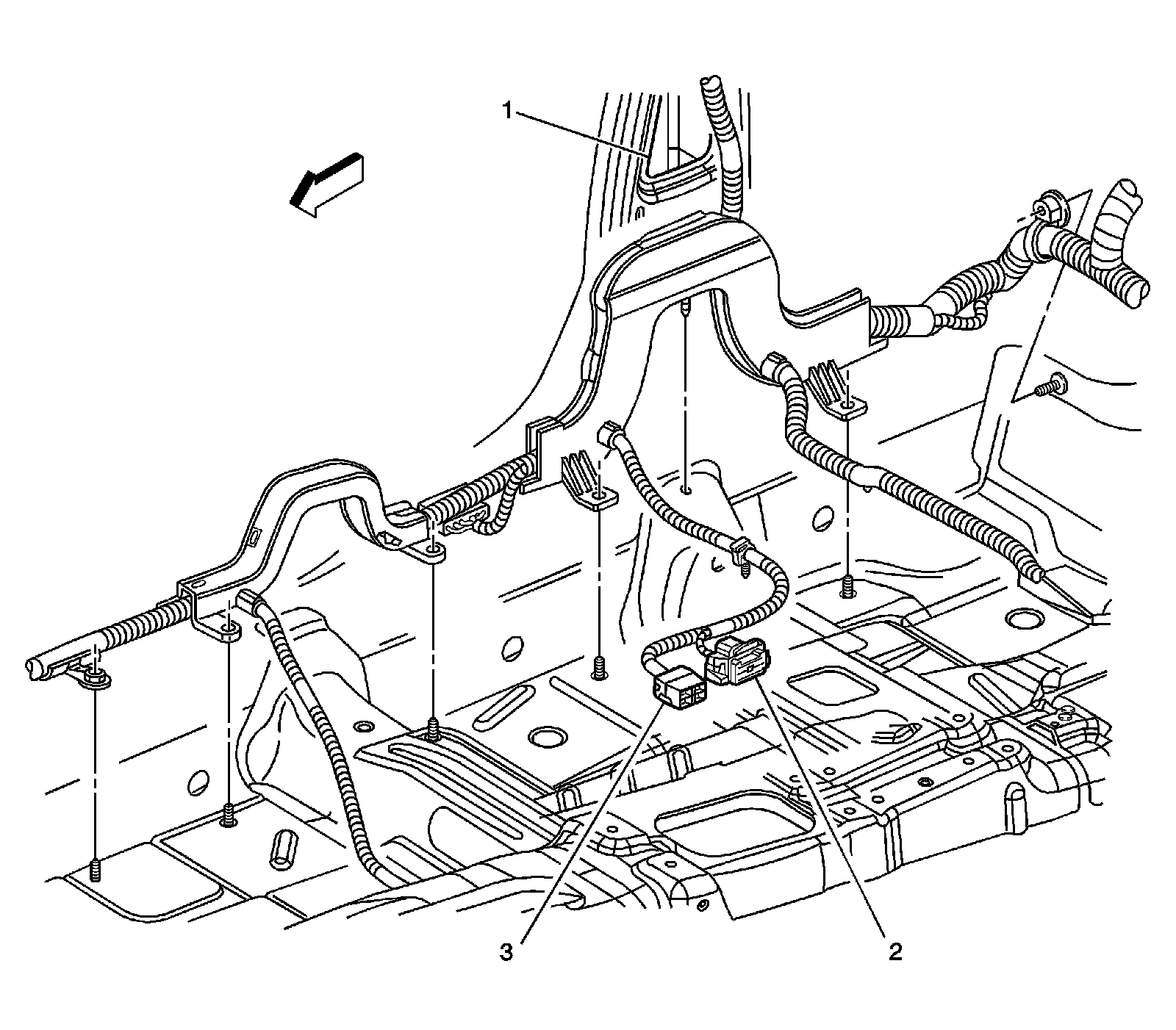

Passenger Compartment - Between Right Doors




1 - Right B - Pillar
2 - C307
3 - C306
