Passenger Compartment - Under Center Console



Passenger Compartment - Under Center Console

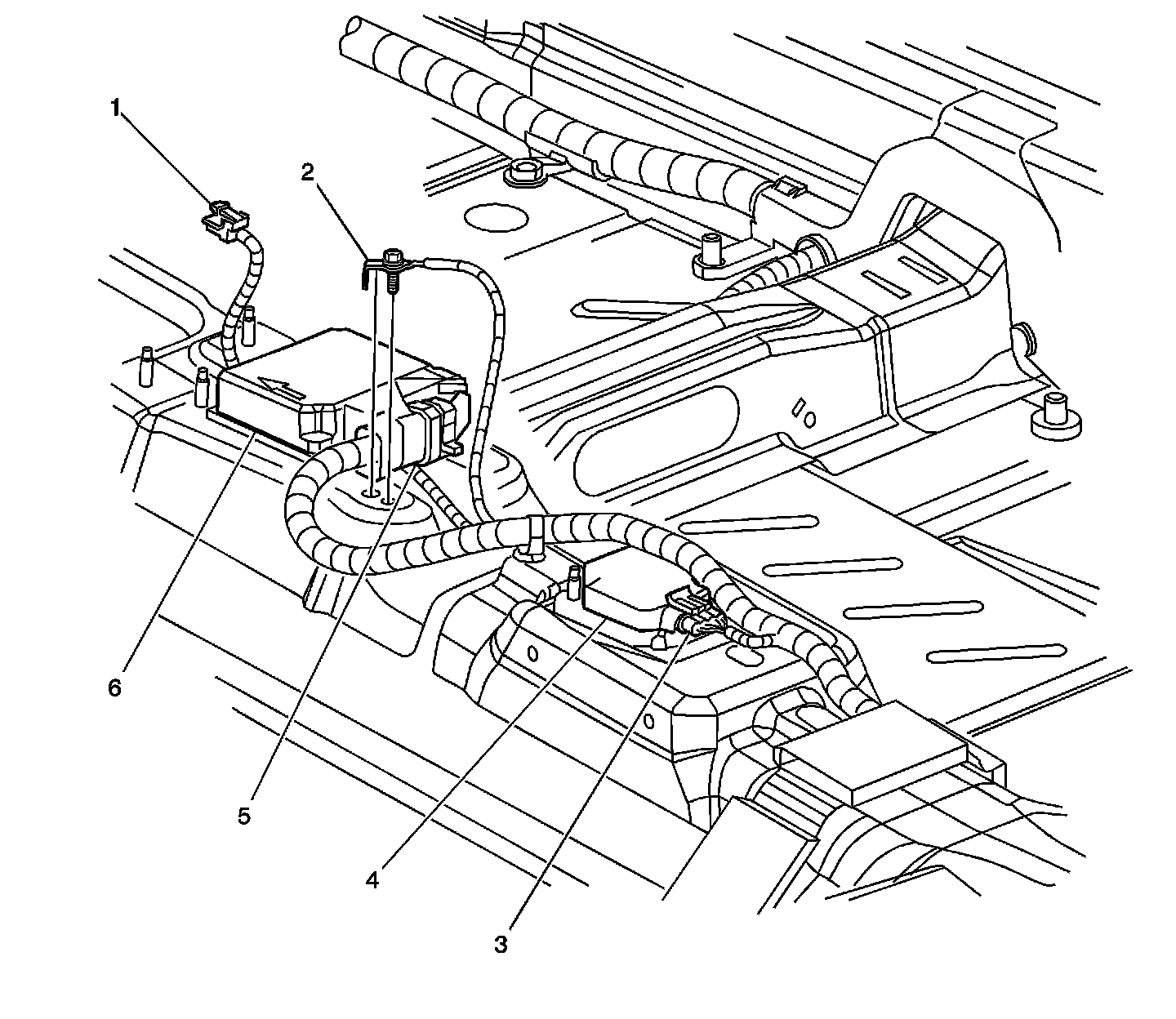

Passenger Compartment - Under Center Console:




1 - Shift Control Assembly Connector
2 - Body Harness Ground G306
3 - Yaw Rate and Lateral Acceleration Sensor Connector
4 - Yaw Rate and Lateral Acceleration Sensor
5 - Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
6 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
