Secondary/Configurable Control Component Views

Secondary/Configurable Control Component Views

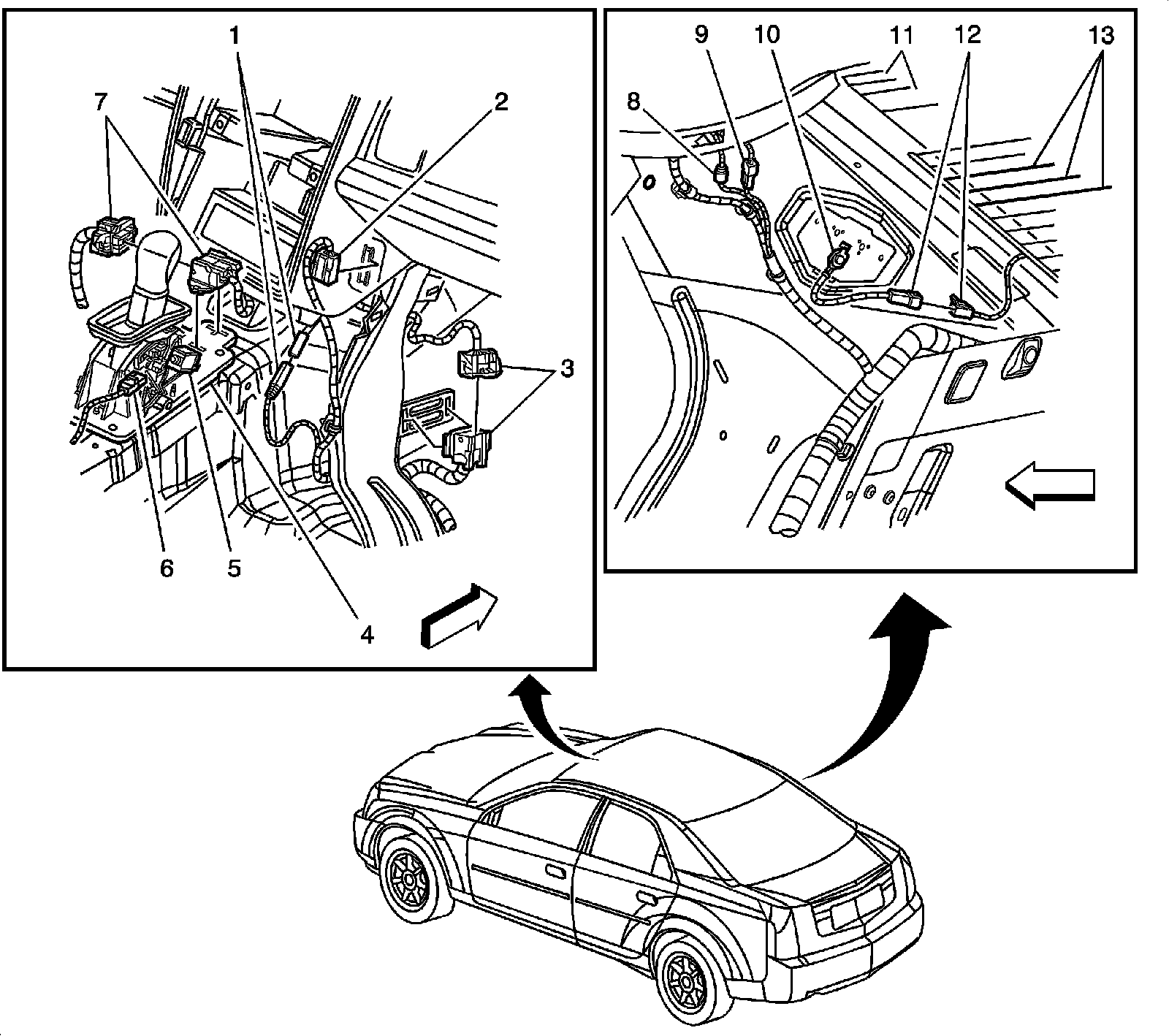

Radio Antenna Coax




1 - Radio Antenna Coax (From Radio Antenna Module to Radio)
2 - C312
3 - C302 (Export w/U2X/U2Y)
4 - A/T Shift Control Assembly (M82)
5 - A/T Shift Lock Control Solenoid Assembly (M82)
6 - A/T Shift Lock Control Solenoid Assembly Connector (M82)
7 - C303
8 - Radio Antenna Coax (From Radio Antenna Module to Radio)
9 - C311
10 - Ground G304
11 - Radio Rear Glass Antenna
12 - Rear Window Defogger Connector C2
13 - Rear Window Defogger Grid
