C420

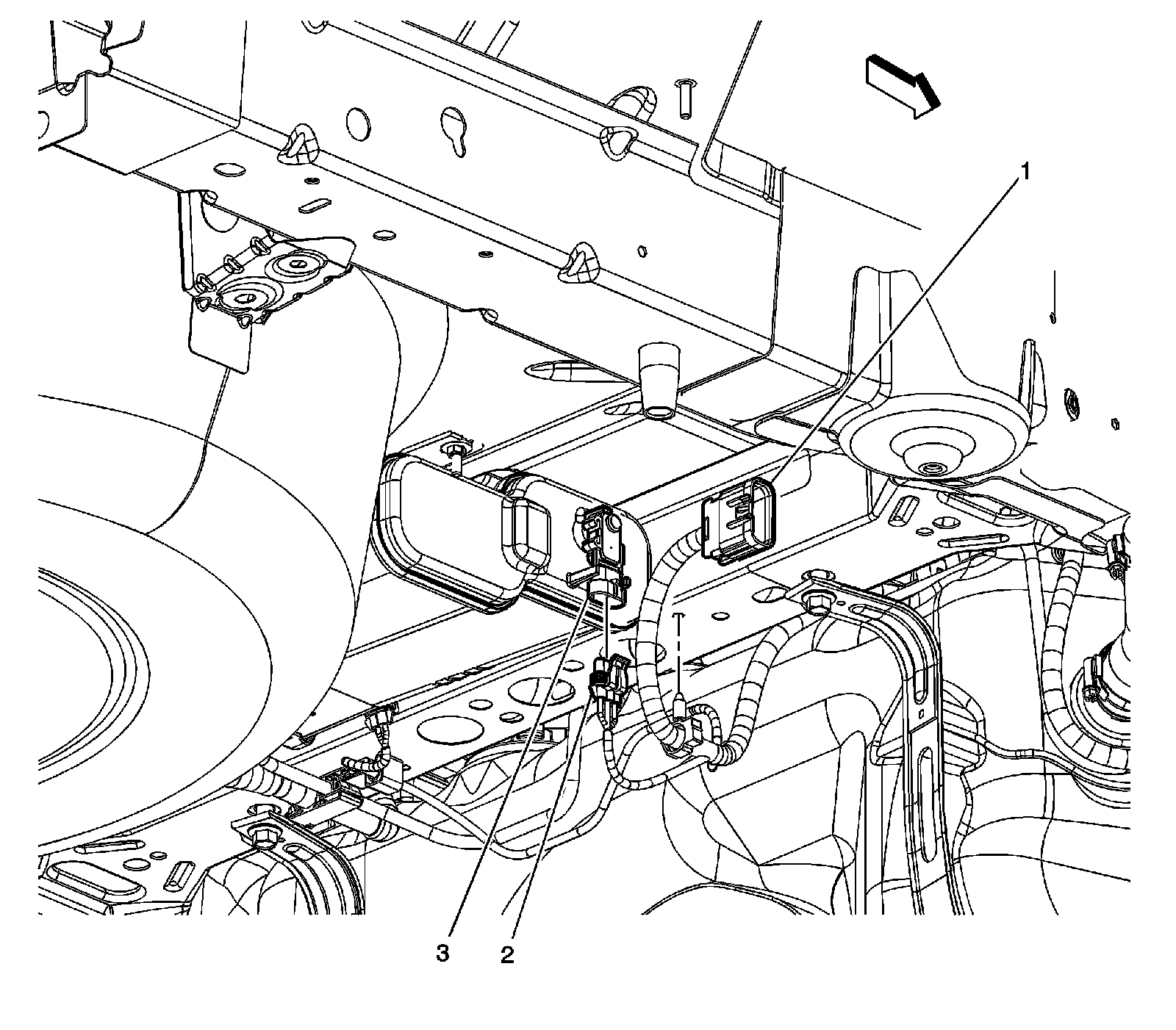

Engine Controls Component Views

EVAP Canister Vent Solenoid Valve

1 - C420
2 - Fuel Tank Pressure Sensor
3 - Fuel Tank Pressure Sensor Connector
